AIL to Brake FLP
[Corresponding model type]: Airplane/glider, 4 fl aps or more
This mixing operates the brake fl aps (FLP3/4)
in the aileron mode. When the aileron stick
is manipulated, the aileron and brake flaps
perform the aileron operation simultaneously
and the operation characteristic of the roll axis is
improved.
● The aileron left and right mixing rates can be
adjusted for each fl ap servo.
● A mixing curve can be set.
● Mixing during fl ight can be turned ON/OFF by
● Linking can be set: Links this mixing to other mixings.

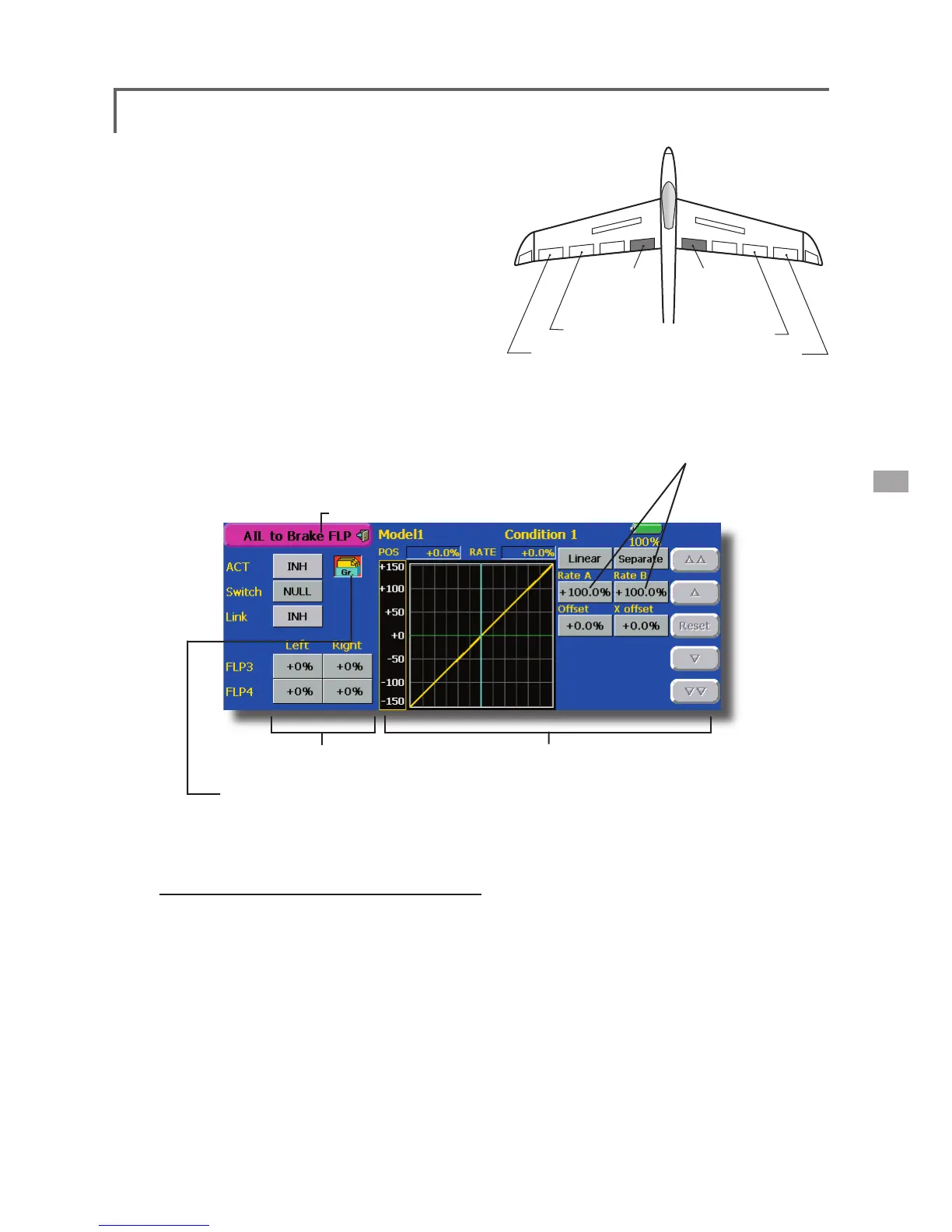

● Touch the [AIL to Brake FLP] button in the Model
Menu to call the setup screen shown below.
*The display screen is an example. The actual screen depends on the
model type.
● Mixing curve setting
(For a description of the curve setting method, see the
description at the back of this manual.)
● Adjustment of each fl ap
servo
●Group/single mode setting (Gr./Sngl)
(For more information, see the description at the back
of this manual.)
● Left/right overall
adjustment by
Rate A and Rate B
●Setting method
● Touch the ACT button and set the function to ACT
(ON).
● When setting a switch, touch the [NULL] button of
the switch to call the <Switch> screen, and then
select the switch and set its ON direction. (Always
ON at "NULL" setting)
(For a description of the switch selection method,
see the description at the back of this manual.)
● Touch the left or right button of each fl ap servo,
and adjust the mixing rate with the adjustment
buttons.
*When the mixing direction is reversed by the linkage,
adjustments can be made by reversing the mixing rate
polarity.
● A mixing curve can be set.
(For a description of the curve setting method, see
the description at the back of this manual.)
● To set linking, touch the Link button and set it to
ON.
