FUTABA 14MZ - Airbrake to ELE

AIRBRAKE
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR
ELEVATOR 2
AILEVATOR
●Return to Model Menu
Airbrake to ELE
[Corresponding model type]: Airplane/glider, general
This mixing is used when you want to mix
the elevators with airbrake (spoiler) operation. It
raises the elevators to correct for drooping of the
nose during airbrake operation.
*This function does not operate when airbrake is not assigned
at the Function menu in the Linkage Menu.
● The Rate 1 side/Rate 2 side mixing rate with the
elevator servos can be adjusted.
● A mixing curve can be set.
● Mixing during fl ight can be turned ON/OFF by
setting a switch. (Always ON at NULL setting)
● The mixing rate can be fi ne-tuned by setting a VR.

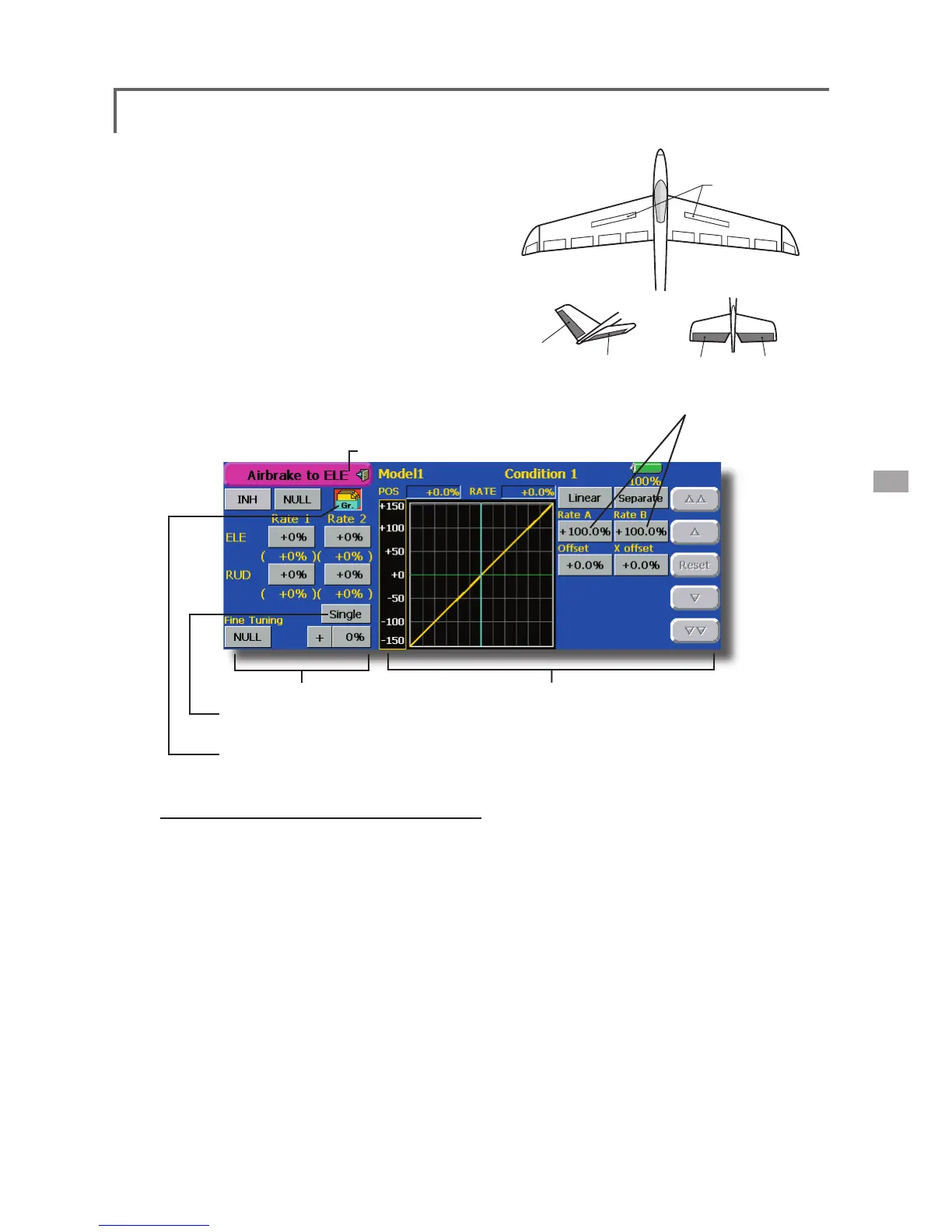

● Touch the [Airbrake to ELE] button in the Model Menu
to call the setup screen shown below.
● Mixing curve setting
(For a description of the curve setting method, see the
description at the back of this manual.)
● Fine tuning VR setting
●Curve display mode switching
(Single/Fine tuning/All Cond.)
● Left/right overall
adjustment by
Rate A and Rate B
Setting method
● Touch the "INH" button and set the function to ACT
(ON).
● When setting a switch, touch the [NULL] button
to call the <Switch> screen, and then select the
switch and set its ON direction. (Always ON at
"NULL" setting)
(For a description of the switch selection method,
see the description at the back of this manual.)
● When setting a VR, touch the Fine tuning "NULL"
button to call the <Switch> screen, and then
select the VR. The adjustment rate and direction
can be set.The VR operation mode can also be
set.
(For a description of the fi ne tuning VR setting
method, see the description at the back of this
manual.)
● A mixing curve can be set.
(For a description of the curve setting method,
see the description at the back of this manual.)
● The curve display mode can be set.
●Group/single mode switch (Gr./Sngl)
(For more information, see the description at the back of this manual.)
Single : Displays the mixing curve only
Fine tuning : Displays the adjustment rate of the
fi ne tuning VR
All Cond. : Displays the mixing curve of all the
conditions. (When conditions are set)
87
