Butterfl y
[Corresponding model type]: Glider, 2 ailerons or more
This function allows powerful brake operation
by simultaneously raising the left and right
ailerons and lowering the flaps (camber flap,
brake fl ap).
This setting will allow the ailerons to be raised
while the flaps are simultaneously lowered.
Butterfl y (Crow) produces an extremely effi cient
landing configuration by accomplishing the
following:
1. Slow the aircraft’s velocity.
2. Provide washout at the wing tips to reduce
the tendency to tip stall.
3. Create more lift toward the center of the
wing allowing it to fl y at a slower speed
● Mixing during fl ight can be turned ON/OFF by
setting a switch. (Always ON at NULL setting)
● The butterfl y operation reference point can be
offset. When the Offset button is touched when
operated to the position to be changed, the
reference point is offset. If the reference point is
offset too much, unexpected operation may be
performed.
● The ailerons, fl aps, and elevators operation speed
can be adjusted. (IN side/OUT side)
● A delay can be set for each condition. A cut
switch which can turn OFF the delay function can
also be set.
● The differential rate can be adjusted.
*When servo binding occurs when setting the ailerons and
fl aps in butterfl y mixing, use the AFR function to adjust the
rudder angle.
●Return to Model Menu
● When offsetting the butterfly operation
reference point, operate to the point you
want to change and then touch the Offset
button. The reference point displays 0%.
When [Yes] is touched, the reference point is
changed.
● Differential rate
adjustment
● To elevator correction
setup screen
● Calls the Butterfl y AFR (D/R) setup screen
(For a description of the setting method, see the description at
the back of this manual.)
● Aileron and fl ap servos speed
setting
(For a description of the setting method,
see the description at the back of this
manual.)
● Condition delay setting and cut
switch setting
(For a description of the setting method, see the
description at the back of this manual.)
● Group/single mode switching
(Gr./Sngl)
(For more information, see the description
at the back of this manual.)
●Touch the Mixing Rate AIL and
FLP buttons and adjust the
mixing rates.

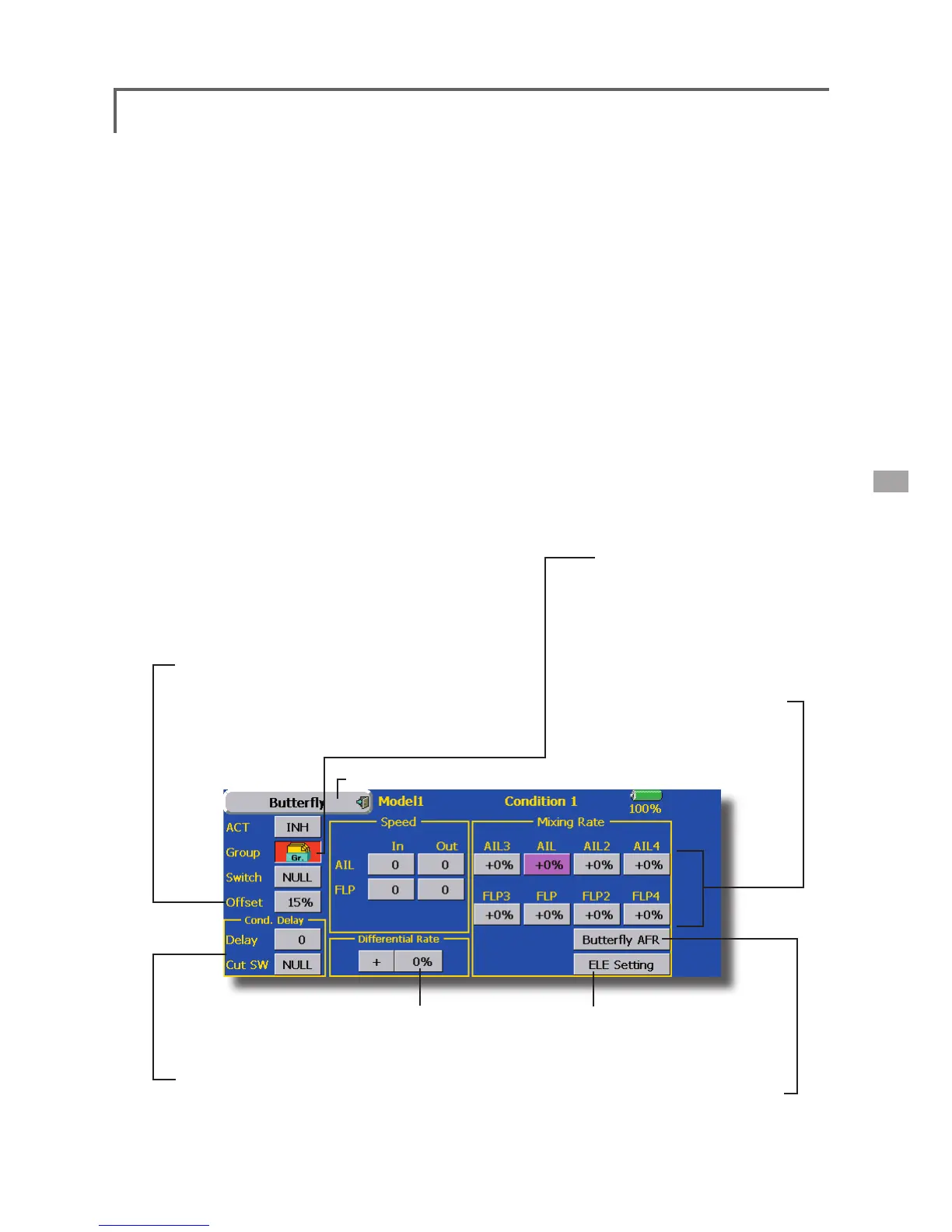

● Touch the [Butterfl y] button in the Model Menu
to call the setup screen shown below.
(The display screen is an example. The actual screen depends
on the model type. The screen shown below is for 4 ailerons
and 4 fl aps.)
● Touch the ACT button and set the function to
ACT (ON).
● When setting a switch, touch the SWITCH
[NULL] button to call the <Switch> screen, and
then select the switch and set its ON direction.
