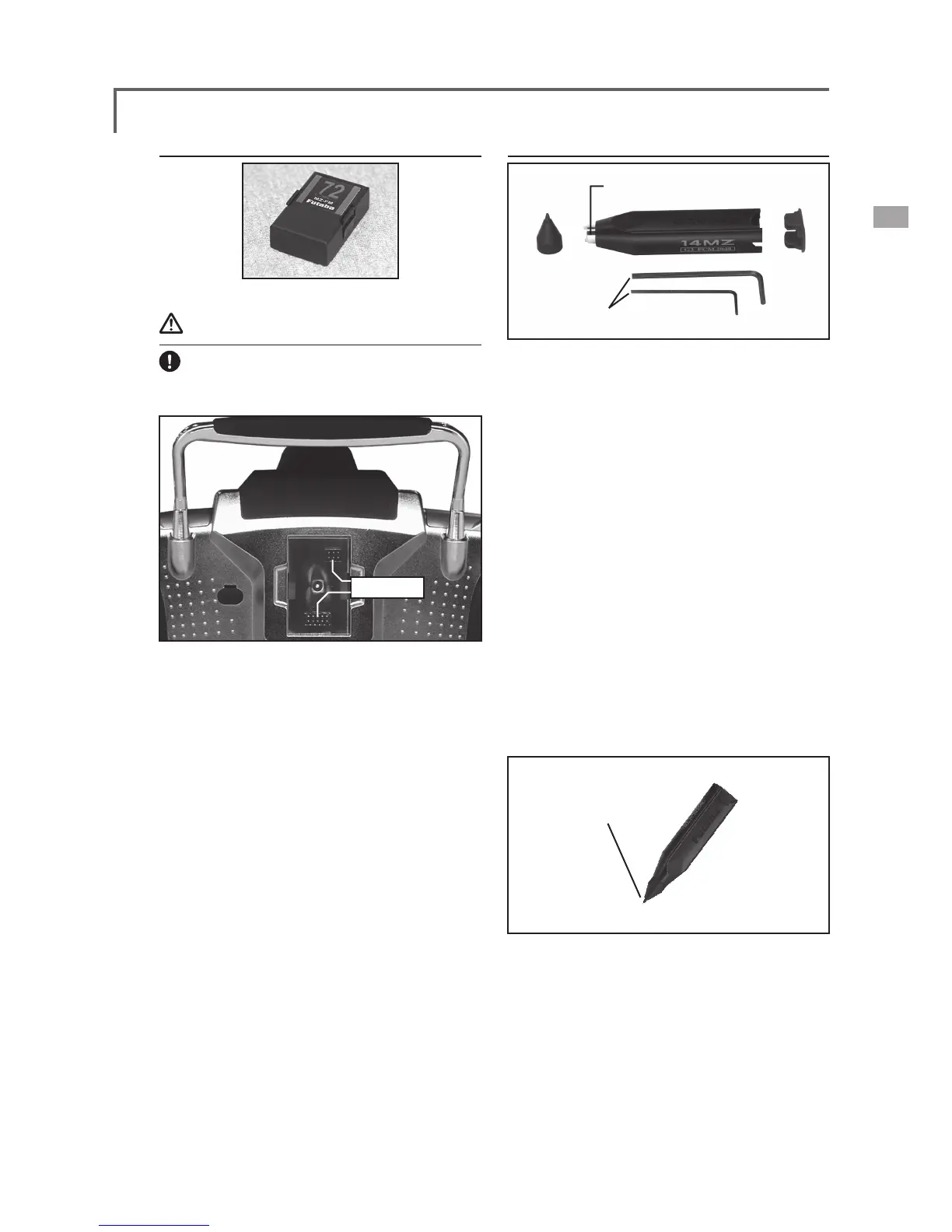

RF module MZ-FM
Caution
Be sure to turn off the power of the transmitter
before you attach or detach the module.
●Connector
Detachment of the RF module
Pull the module straight while you are pushing
inward the projections on both sides of the module.
*There is a connector above and under the module
respectively. So, you might fi nd diffi culty in pulling out the
module if the module is tilted.
Attachment of the RF module
Insert the module with care so that the connecter
pins of the transmitter won't be bent.
Toolbox
●Tool for removing
decoration nuts
●Hex. Wrench (1.5mm and 2.5mm)
●Rubber Cap
You can use the toolbox contained in the set for
various adjustment of the transmitter.
Hexagonal wrench (1.5mm and 2.5mm)
These wrenches are for adjustment of sticks,
replacement of the switches and adjustment of the
antenna.
Tool for removing decoration nuts
This is for replacement of switches.
Stylus pen
Rubber cap is attached on the tip of the toolbox.
You may use this tool as a stylus pen for operating
touch panel. This stylus pen can let you do more
precise operation than fingers without damaging
the surface.
●You may use this tool
as a stylus pen.
21
<Before Use>
