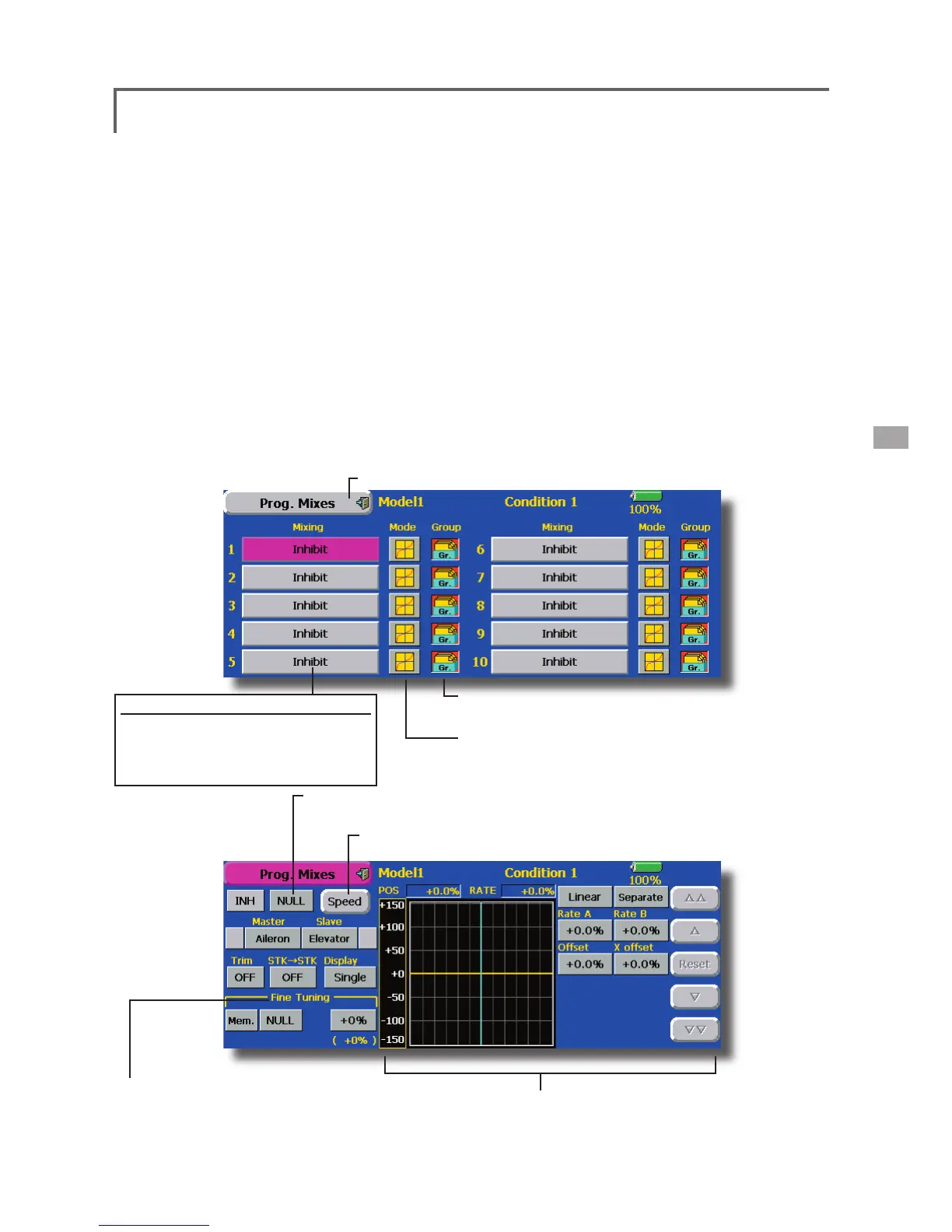

● Touch the [Prog. Mixes] button in the Model Menu to
call the setup screen shown below.
Prog. Mixes
Program mixing which can be freely customized. Up to 10 mixings can be used for
each condition. [All model types]
Programmable mixing may be used to correct
undesired tendencies of the aircraft, and it may also be
used for unusual control confi gurations. Mixing means
that the motion of a command channel, called the
"master," is added to the motion of the mixed channel,
called "slave."
You may choose to have the Masters trim added
to the Slave channel response, if you desire ("Trim"
setting). The mixing curve can be changed so that the
undesired tendencies can be corrected effectively by
setting the LINEAR1/LINEAR2/EXP1/EXP2/VTR/
LINE/SPLINE modes. The Delay function can be
programmed for each rate. The Delay is used to change
the rate smoothly when switching. You may define
Mixing ON/OFF switch, control or you may choose to
have mixing remaining on all the time.
Offset-type mixing applies a fixed offset or preset
to the programmed channel servo operation and
may control up to four circuits simultaneously. The
Programmable mixing includes a powerful link
function, which allows Programmable mixing to be
linked with the special mixing functions, or with other
programmable mixing functions. The link function can
be set up for Master and Slave channel individually.
The slave channel AFR mode (STK-STK mode)
may be selected, where the slave channel AFR and
D/R settings are observed when Link function is set.
The knob for fi ne tuning can be set up for every mixing
circuit. (Fine tune function)
Mixing buttons
After this function was activated, the
master and slave function names (or
offset mixing) are displayed.
●Mixing mode change button
●Group/single mode switching (Gr./Sngl)
(For more information, see the description at the back of this manual.)
●Operation curve setting
(For a description of the curve setting method, see the description
at the back of this manual.)
●Servo speed setting
(For a description of the setting method, see the description at the back of this manual.)
●Switch selection
(For a description of the switch setting method, see the description at the back of this manual.)
●Fine tuning trim setting
(For a description of the setting method, see the description
at the back of this manual.)
