FUTABA 14MZ - AIL Differential

AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
●Return to Model Menu
● Touch the [AIL Differential] button in the Model Menu to
call the setup screen shown below.
AIL Differential
[Airplane/glider, 2 ailerons or more]
The left and right ailerons differential can be
adjusted independently. The differential rate can
also be adjusted according to the flying state by
setting a fi ne tuning VR.
●A fi ne tuning curve can be set.
Note: Aileron up/down setting (%) reset is +100%
when reset when setting is +, and -100% when reset
when setting is -. Left and right mixing causes + and
- to change. Before fl ying, confi rm the direction of
operation.
● Calls the AFR screen directly
when adjusting aileron
operation AFR.
● Fine tuning VR setting
*The graph is operated by setting a VR, etc.
● Group/single mode switching (Gr./Sngl)
(For more information, refer to the description at the
back of this manual.)
● Aileron left/right
adjustment

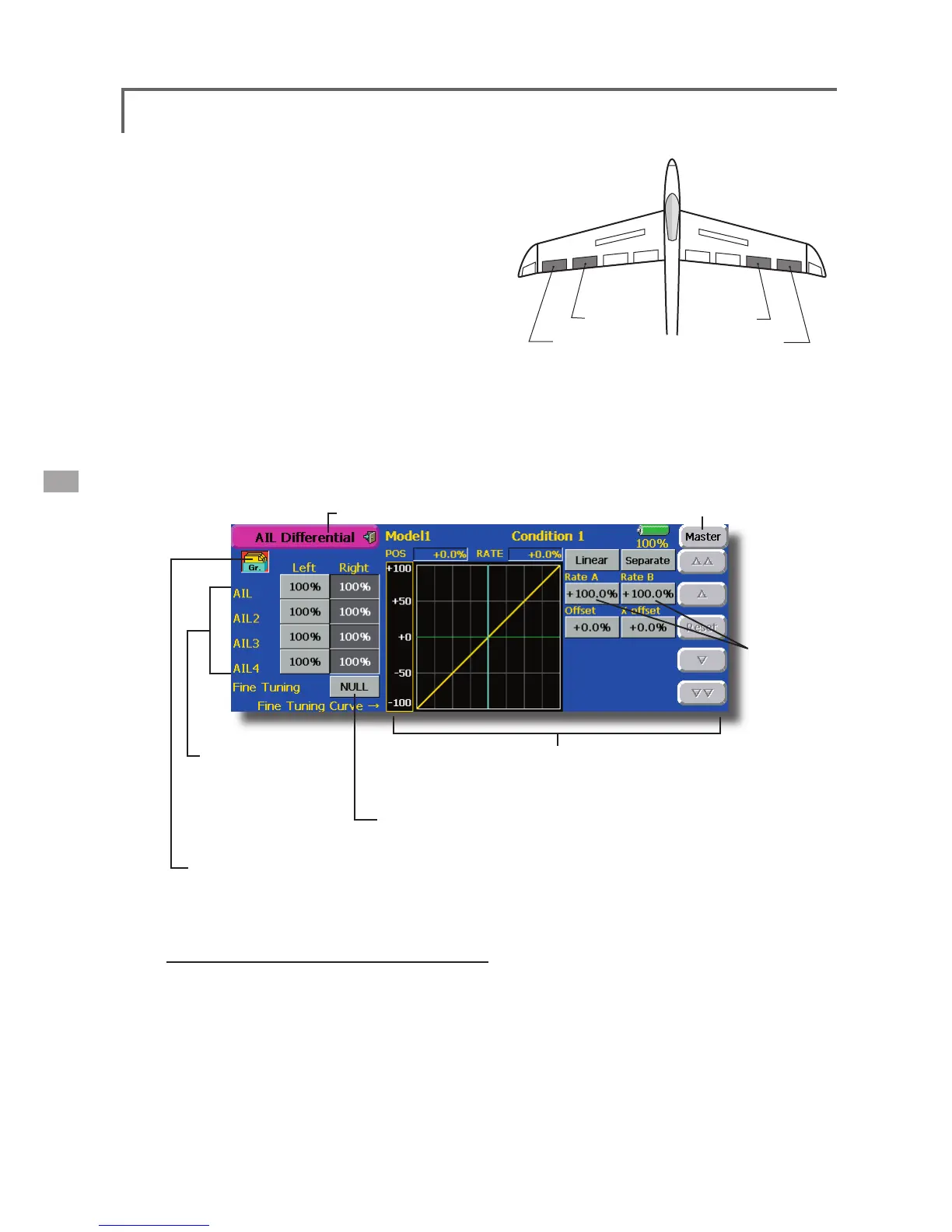

<Wing type: 4 ailerons screen>
*The display screen is an example. The actual screen depends on the
Model Type.
● Overall
adjustment
by Rate A
and Rate B.
*The display is reversed by
mixing with aileron operation
● Fine tuning curve setting
(For a description of the setting
method, see the description at the
end the manual.)
Setting method
● Touch the aileron (AIL) 1~4 left (or right) button,
and adjust the aileron angles when the stick is
moved to the left (or right) end.
*The aileron AFR screen can be directly called from the AIL
Differential setup screen. ([Master] button)
● When setting the fi ne tuning VR, touch the "NULL"
button to call the <Switch> screen, and then
select the fi ne tuning VR.
● The fi ne tuning rate can be set by curve.
