Airbrake
[Corresponding model type]: Airplane, general
This function is used when an air brake is
necessary when landing or diving, etc.
The preset elevators and flaps (camber flap,
brake flap) offset amount can be activated by a
switch.
The offset amount of the aileron, elevator, and
flap servos can be adjusted as needed. Also the
speed of the aileron, elevator, and fl ap servos can
be adjusted. (IN side/OUT side) A delay can be set
for each condition, and a Cut switch which will
turn OFF the delay can be chosen. Trim amounts
can be fine-tuned by setting a VR You can also
set the Auto Mode, which will link Airbrake to a
stick, switch, or dial. A separate stick switch or
dial can also be set as the ON/OFF switch.
●Return to Model Menu
● When a fi ne tuning VR is set on the next screen (2/2), the aileron
and fl ap trim rates can be adjusted. Touch the corresponding
button and adjust the rates with the adjustment buttons
displayed on the screen.
● The aileron, fl ap, and elevator offset
rates can be adjusted.
Touch the corresponding button
and adjust the rate with the
adjustment buttons displayed on
the screen.

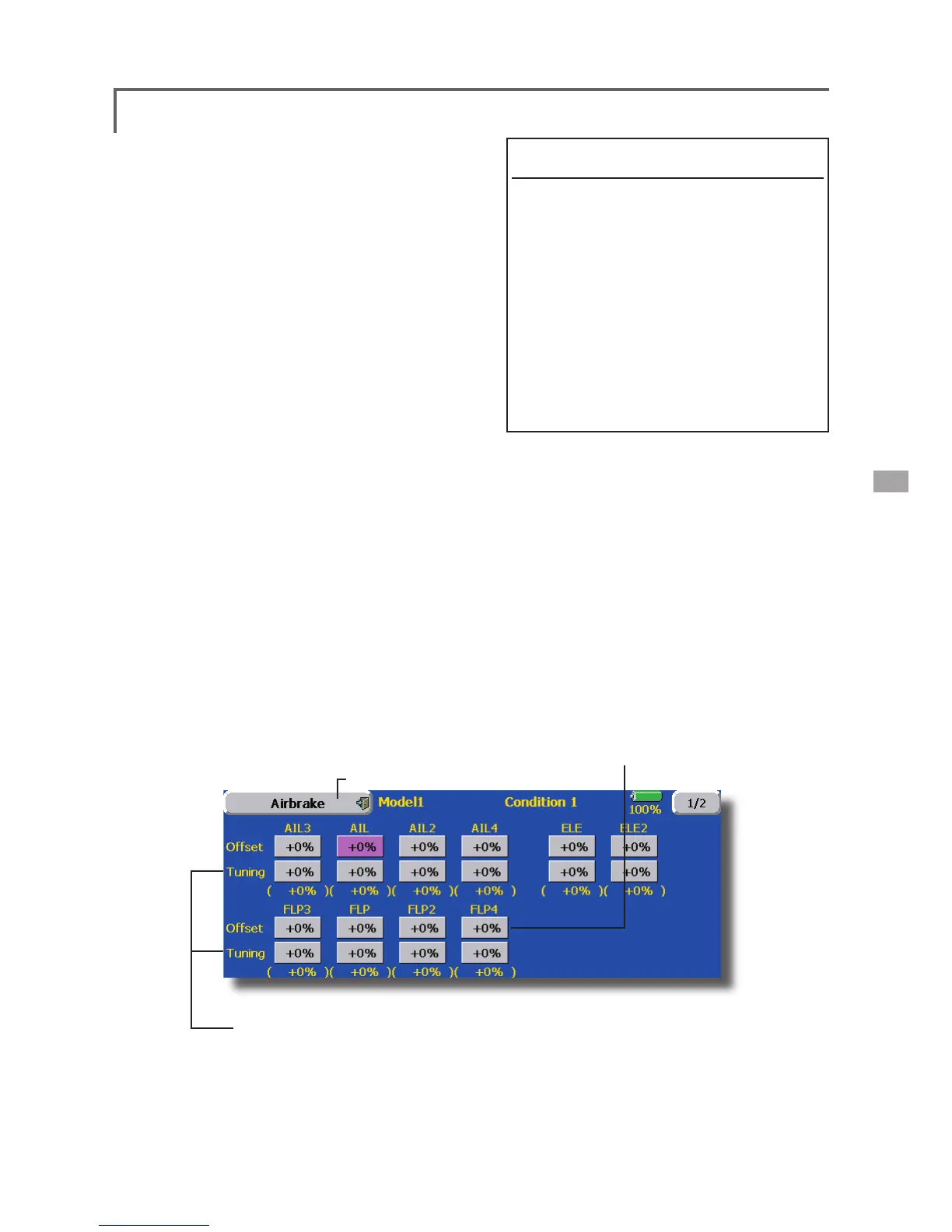

● Touch the [Airbrake] button in the Model Menu to
call the setup screen shown below. (The display
screen is an example. The actual screen depends
on the model type. The screen shown below is for 4
ailerons and 4 fl aps.)
(Touch the [1/2] button to switch to page 2.)
● Touch the ACT button and set the function to
ACT(ON).
● When setting a switch, touch the Switch button
to call the <Switch> screen, and then select the
switch and set its ON direction. (Always ON at "NULL"
setting)
(For a description of the switch selection method, see the description at
the back of this manual.)
Setting example for F3A and other fl aperon
specifi cations
(When 2 ailerons model type selected)
(Page 1/2)
Offset rate:
AIL: [-35~-45%], AIL2: [-35~-45%], ELE: [+5|7%]
Note: The input numerics are examples. Adjust the travel to
match the fuselage.
(Screen 2/2)
ACT: [ON]
Group: [Sngl]
Switch: [SC-C]
Mode: [Manual]
97
