FUTABA 14MZ - Page 90

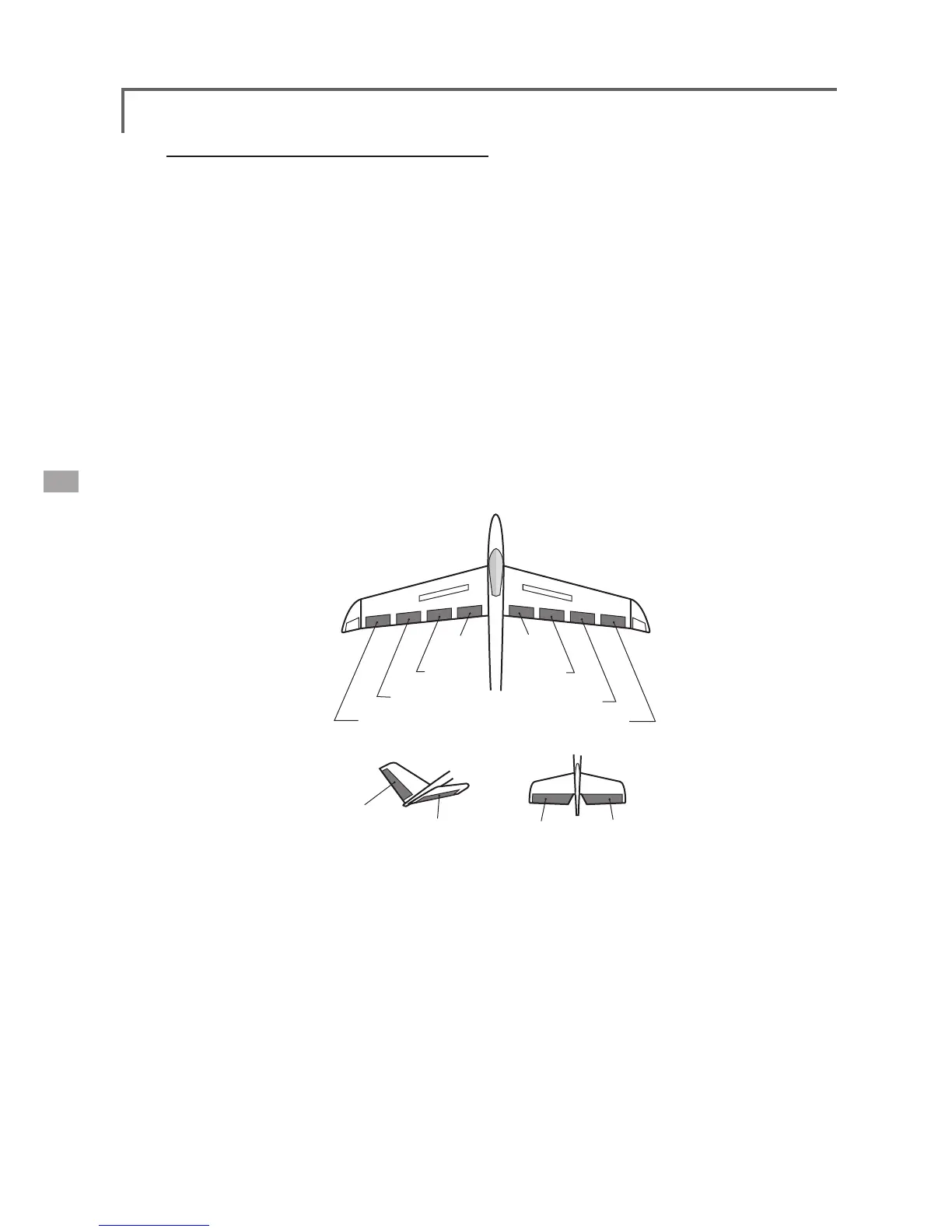

AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR
ELEVATOR 2
AILEVATOR
FLP 3
(Brake Flap)
FLP 4
(Brake Flap)
Setting method
● Touch the "INH" button and set the function to ACT
(ON).
● When setting a switch, touch the [NULL] button
to call the <Switch> screen, and then select the
switch and set its ON direction. (Always ON at
"NULL" setting)
(For a description of the switch selection method,
see the description at the back of this manual.)
● When setting a condition delay, touch the
Condition Delay button and set the delay with the
adjustment buttons which appear on the screen.
The VR operation mode can also be set.
(For a description of condition delay, see the
description at the back of this manual.)
● Camber AFR(D/R) screen call
Touch the Camber AFR button to call the setup
screen. (For a description of the setup method,
see the description at the back of this manual.)
(Curve/rate setup screen)
● The curve and rate are adjusted by calling the
aileron, fl ap, and elevator curve/rate screens.
The rate and curve of each servo can be set by
calling each screen. (For a description of the
curve setting method, see the description at the
back of this manual.)
The servo speed can also be adjusted.
90
