e.bloxx A6-2CF
MODULE DESCRIPTION
10
HB_EBLOXX-A62CF_E_V19.doc
Gantner Instruments Test & Measurement GmbH

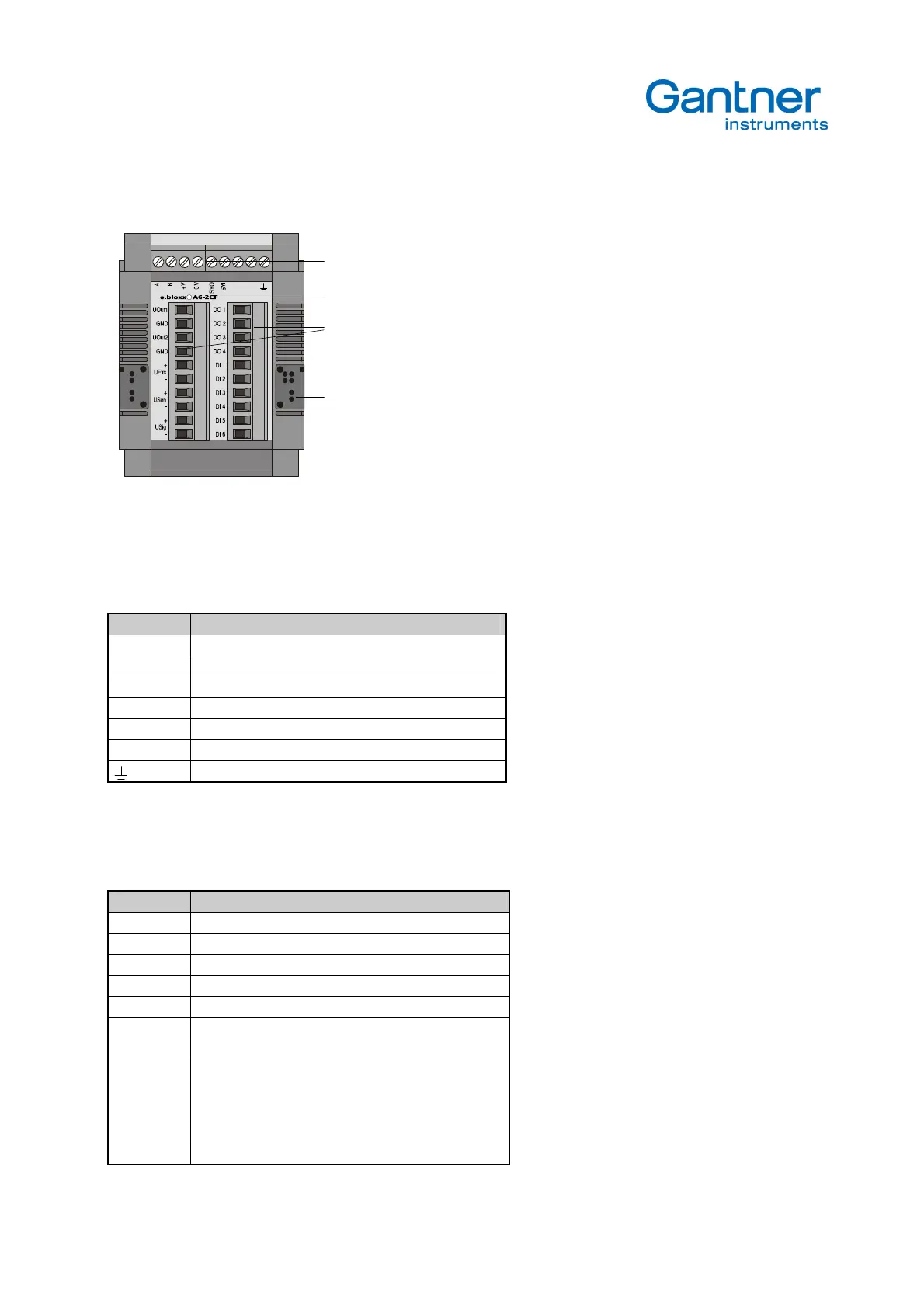

2.3. Module Parts
1 …Pluggable Screw-Type Terminal Strip for Connection of RS 485 Bus, Power Supply,
Synchronization and Grounding
2 … Power/Error-LED (red/green)
3 … Pluggable Screw-Type Terminal Strips for Sensor Connection and In-/Outputs
4 … Rapid Bus Link Plugs
Picture 2.2.
- Parts of the e-bloxx A6-2CF
Terminal Strip for RS 485, Power Supply, Synchronization and Grounding
Table 2.2.
- Description of Terminal Strip for RS 485 Bus and Power Supply
Terminal Strip for Sensor Connection
Table 2.3.
- Description of Terminal Strips for Sensors and In-/Outputs
Terminal Description
A RS 485 Bus Interface A
B RS 485 Bus Interface B
+V Power Supply +
0V Power Supply -
SYO Synchronization Output (Master)
SYI Synchronization Input (Slave)
Grounding
Terminal Description
UOut1 Voltage Output 1
GND Ground
Out2 Voltage Output 2
GND Ground
UExc+ Bridge Excitation Voltage (+)
UExc- Bridge Excitation Voltage (-)
USen+ Sense Leads (+)
USen- Sense Leads (-)
USig+ Measuring Signal (+)
USig- Measuring Signal (-)
DO 1 .. 4 Digital Output 1 up to 4
DI 1 .. 6 Digital Input 1 up to 6
