Gantner e Series - Strain Gauge and Inductive Full Bridge (4-Lead Connection); Strain Gauge and Inductive Full Bridge, Piezo-Resistive Transducer (6-Lead Connection)

e.bloxx A6-2CF
MEASUREMENTS
HB_EBLOXX-A62CF_E_V19.doc 25
Gantner Instruments Test & Measurement GmbH
4.2.1. Strain Gauge and Inductive Full Bridge (4-Lead Connection)

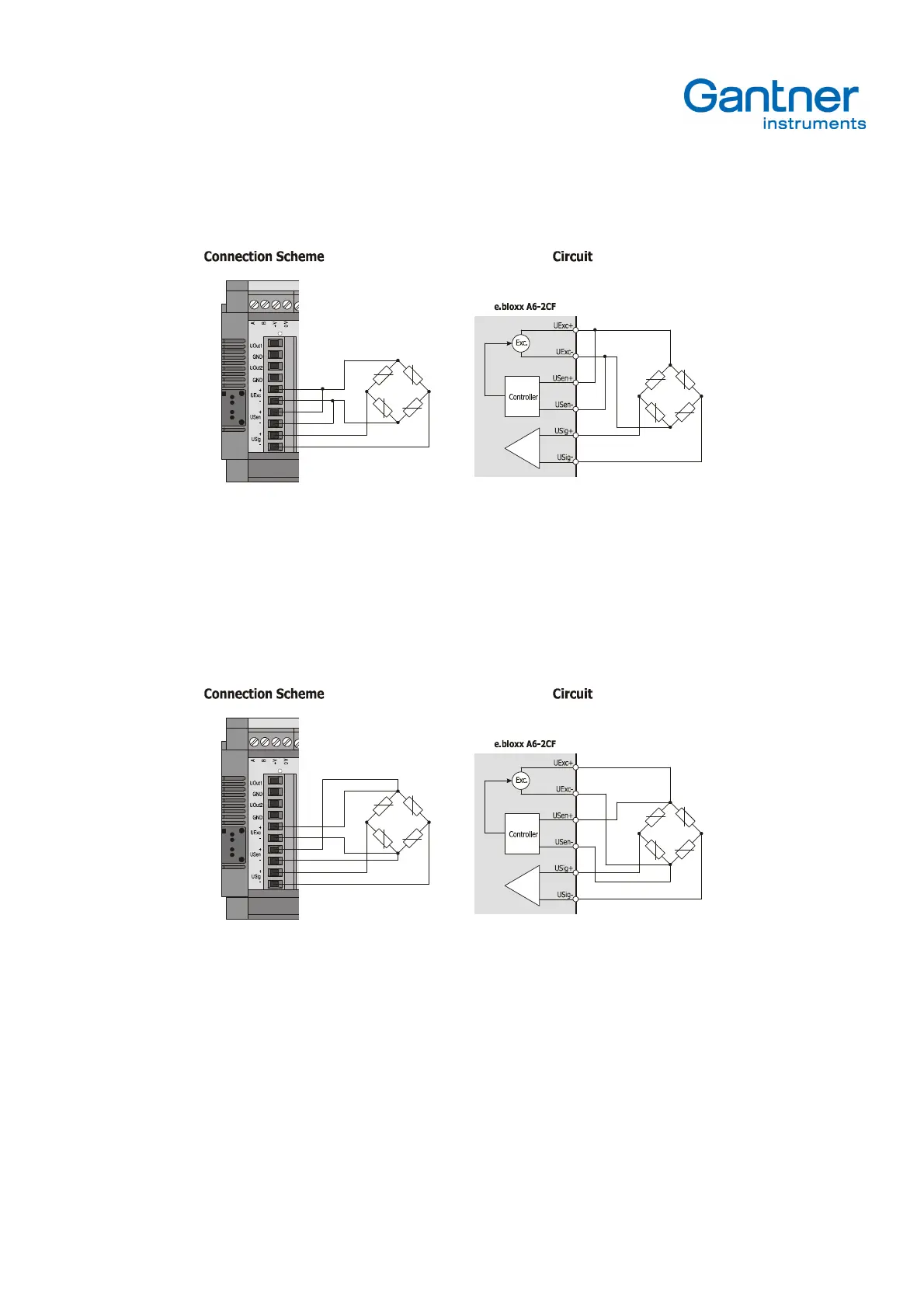

Picture 4.4. – Connection Diagram
Usually piezo-resistive transducers have a quite high resistance (e. g. 4 k Ω ). The cable length should not be longer than
20 m. Use cable with a low capacity.
4.2.2. Strain Gauge and Inductive Full Bridge, Piezo-Resistive Transducer (6-Lead Connection)
Picture 4.5. – Connection Diagram
Due to the high transducer resistance a 6 lead connection for piezo-resistive transducers is not necessary.
