Gantner e Series User Manual

e.bloxx A6-2CF
CONFIGURATION
58 HB_EBLOXX-A62CF_E_V19.doc
Gantner Instruments Test & Measurement GmbH
Set-up:
All the offered function in the group signal conditioning can be combined with arithmetic function, alarm function, Limit
switches and the both analog outputs (see next chapters).
5.4.3 Arithmetic
An expanded conditioning can be the calculation with signals and constants. The module e.bloxx A6-2CF provides math
functions that can be selected and arranged responding the requirements.
The calculation rate for the signal conditioning is 1000/number of arithmetic lines per second. The available functions are:
- Multiplication
- Division
- Addition
- Subtraction
- Minimum
- Maximum
- Select
- Special 1 … 4
- Constant
The arithmetic operations can be mixed with the signal conditioning functions.

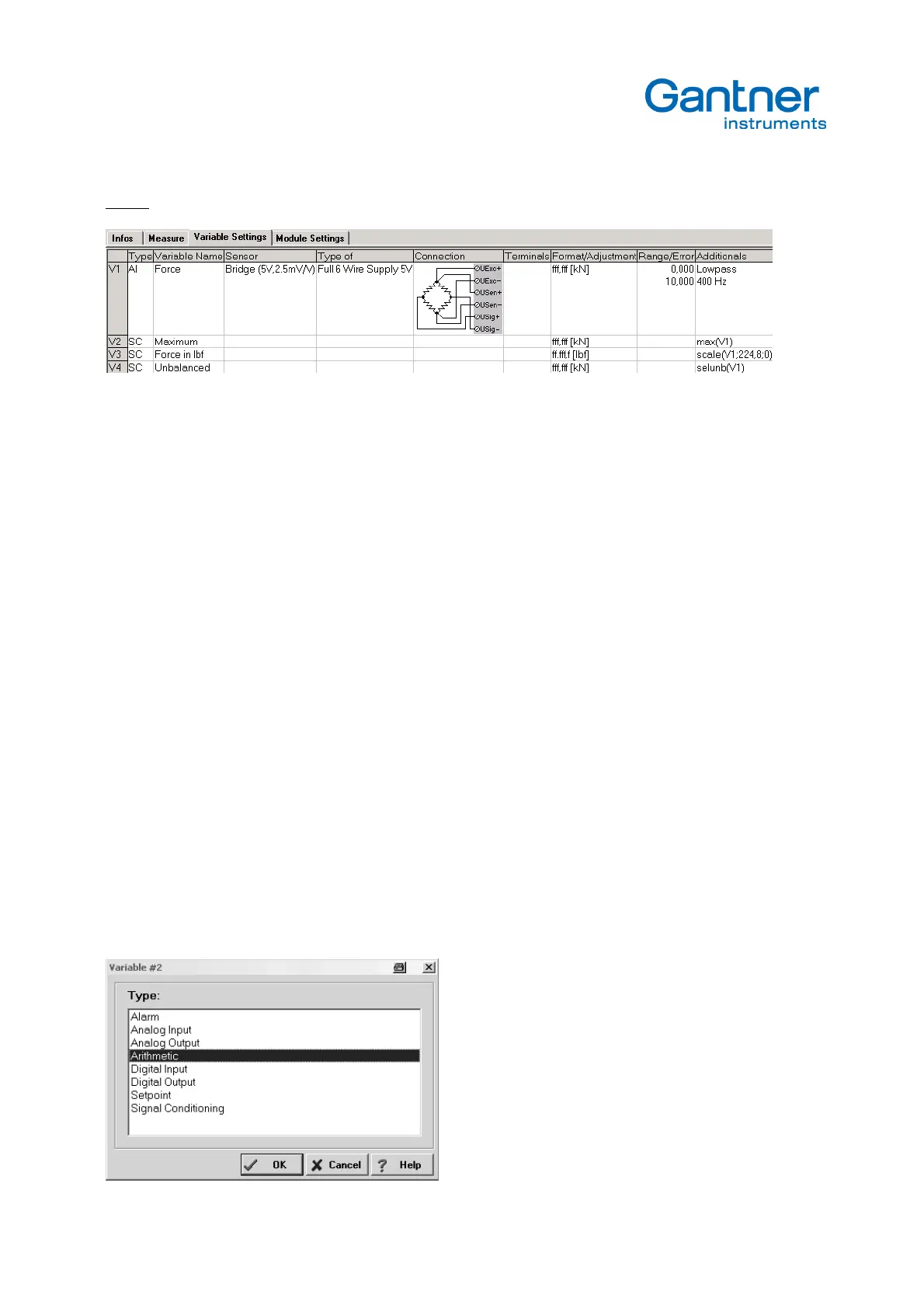

To work with these functions it is necessary to define a new variable. For that option click at any field in a row.
Column "Type"
Open the window Variable and select Signal Conditioning.
