e.bloxx A6-2CF
CONFIGURATION
HB_EBLOXX-A62CF_E_V19.doc
59
Gantner Instruments Test & Measurement GmbH
Columns "Variable Name" and "Format/Adjustment"
According to chapter 5.4.2 Signal Conditioning
Columns "Sensor", "Type of", "Connection", "Terminals"
These columns are not relevant for the signal conditioning.
Column "Additionals"
In this column the arithmetic functions can be selected. As mentioned above there are the following functions available:
- Multiplication *
- Division /
- Addition +
- Subtraction -
- Minimum min
- Maximum max
- Select select
- Special 1 … 4 spec1 … 4
- Constant const
• Multiplication, Division, Addition, Subtraction [ * ], [ / ], [ + ], [ - ]
To calculate with measured values, conditioned values and constants is very helpful in test applications. The math
functions can be use absolute free. The only limit is the number 20 RPN (reveres polish notation). That means 20
elements in the formula (different variables, constants, operator).
The application can be e.g. to calculate the peak to peak value, to show the area of a disc when measuring the diameter
or to detect the maximum by subtraction of the maximum store from the measured value.

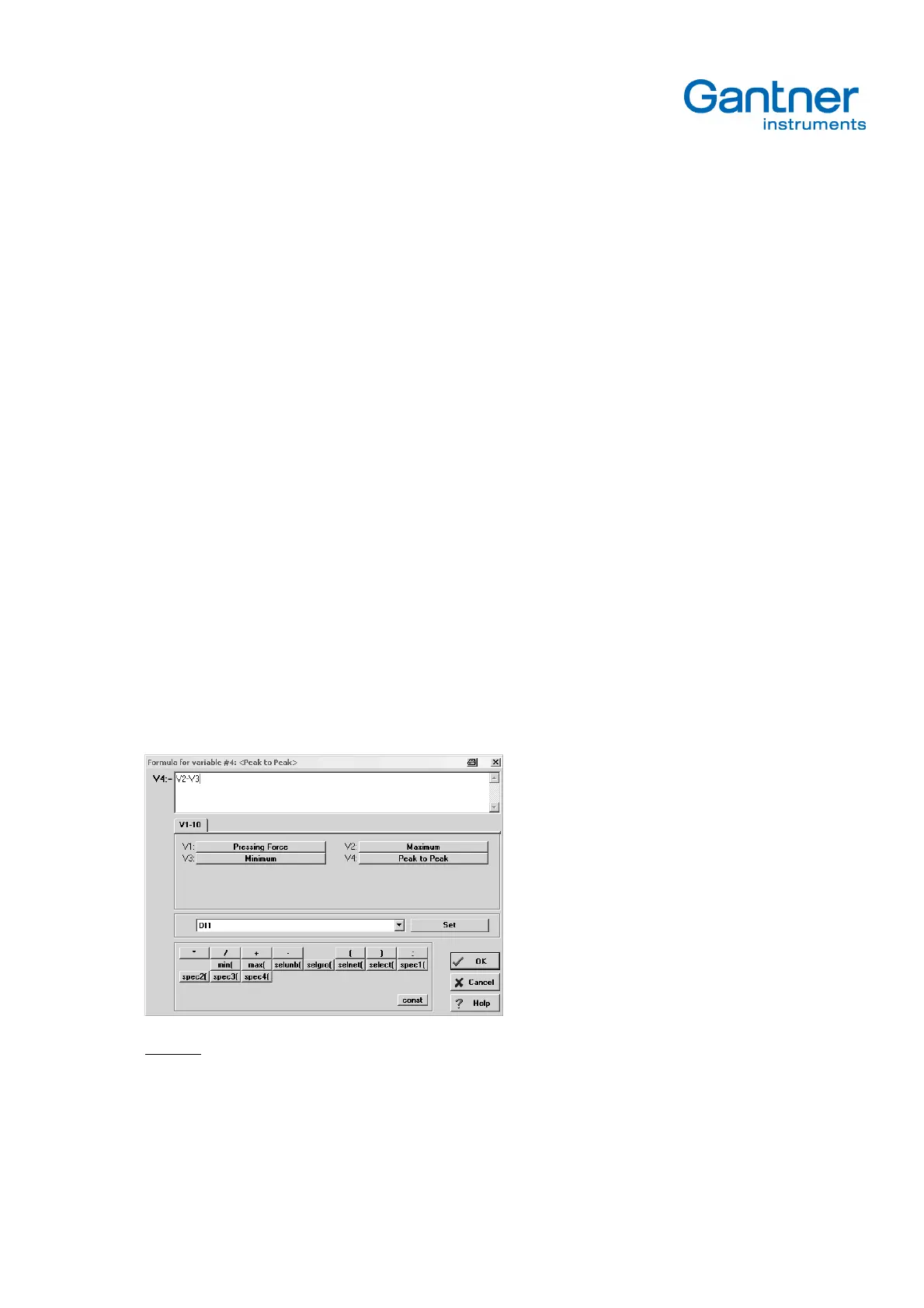

Example: The peak to peak value of a signal should be measured. Variable 2 detect the maximum and variable 3
detect the minimum (see 5.4.2). The operation maximum – minimum provides the required value.
V4=V2-V3
• Minimum-/Maximum store [min] / [max]
In the group of arithmetic the minimum/maximum function is available additional to the same functions in the group
signal conditioning.
