4.5. Digital Output
4.5.1. Digital Status Output - Host-Controlled

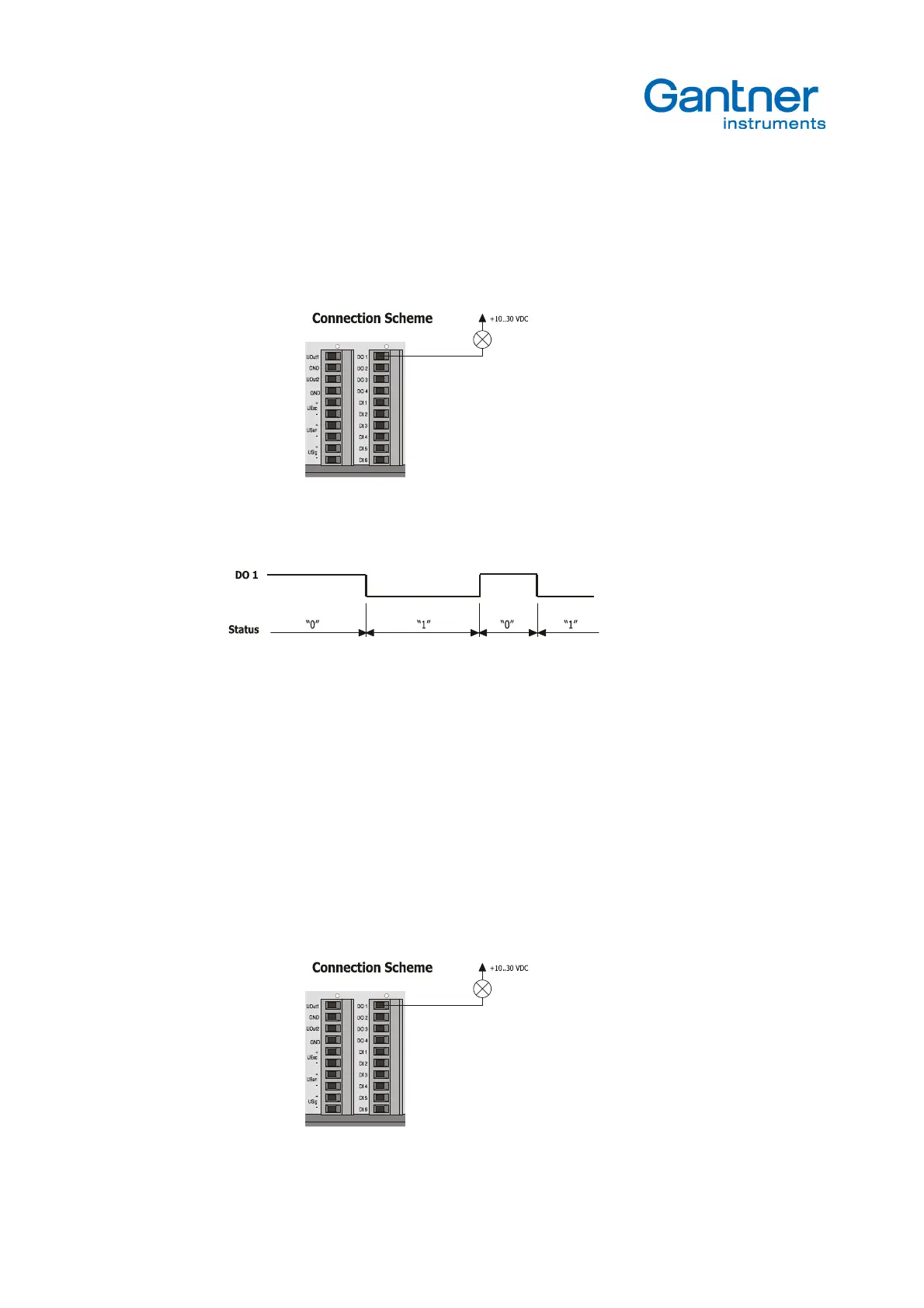

Picture 4.24. – Digital Output as Host-Controlled Output
Picture 4.25. - Signal Diagram of Host-Controlled Digital Output
With the host-controlled digital status output, the digital output is set according to the status information received by the
e.bloxx A6-2CF via bus.
The distribution voltage can range from 10 to 30 VDC. It has to be either supplied externally or be picked up by the
power supply of the sensor modules.
The status of the digital output can be scanned as 1/0 information via bus.
4.5.2. Digital Status Output - Process-Controlled
Picture 4.26. – Digital Output as Process-Controlled Output
