Gantner e Series User Manual

e.bloxx A6-2CF
MEASUREMENTS
HB_EBLOXX-A62CF_E_V19.doc 35
Gantner Instruments Test & Measurement GmbH

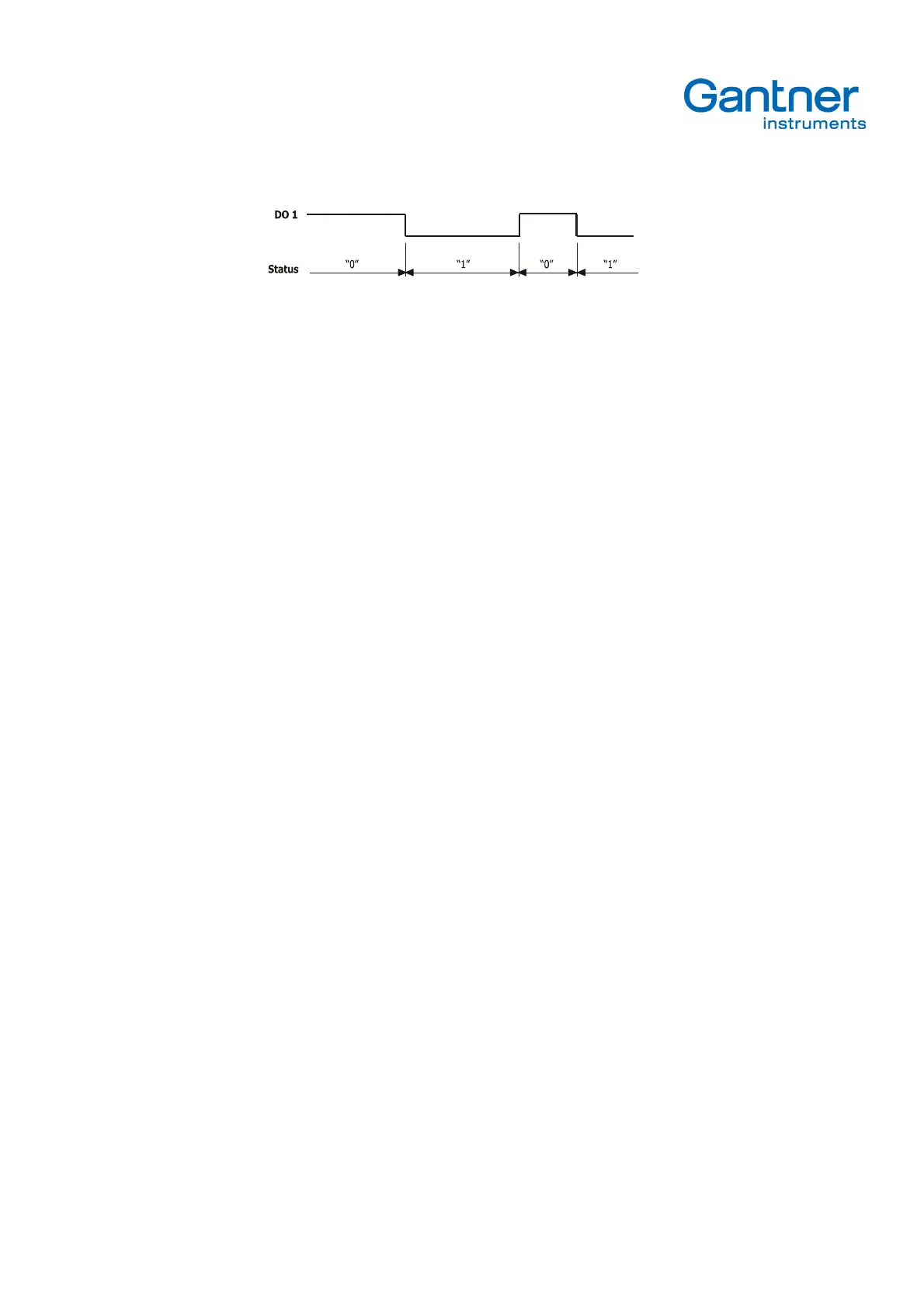

Picture 4.27. - Signal Diagram of Process-Controlled Digital Output
With the process-controlled output of status information the e.bloxx A6-2CF monitors measured values, resp. sensor
variables as to constraints (threshold values). The digital output is set if one or several threshold conditions are fulfilled.
The user can freely define the constraints. The user can also preset the logical signal level (see also the Configuration
Software ICP 100).
The distribution voltage can amount from 10 up to 30 VDC. It has to be supplied externally or picked up by the power
supply of the sensor module.
The status of the digital output can be scanned as 1/0 information via bus.
