e.bloxx A6-2CF
MEASUREMENTS
30
HB_EBLOXX-A62CF_E_V19.doc
Gantner Instruments Test & Measurement GmbH
4.4. Digital Input
4.4.1. Status

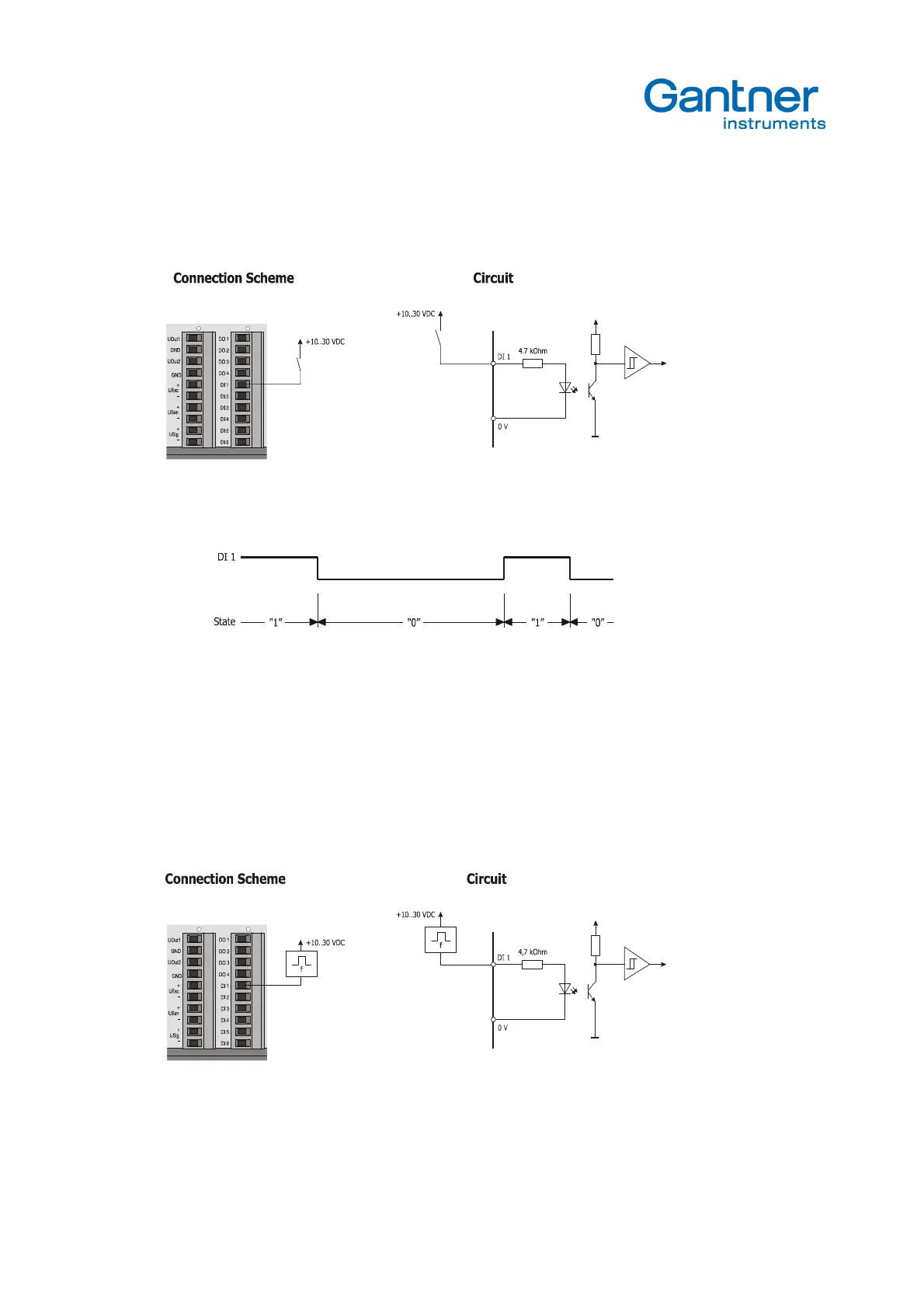

Picture 4.14. -
Connection Diagram
Picture 4.15.
- Signal Diagram of Status Recording
For the acquisition of digital status information (on/off, closed/open, left/right, etc.) the signal applied to the digital input
is collected and is held ready for further processing in the e.bloxx A6-2CF or for transmission via bus.
The digital input is set (switch closed) as long as the applied signal voltage remains over the threshold value of 10 VDC.
The digital information can be scanned as 1/0 information via bus.
4.4.2. Frequency Measurement
Picture 4.16.
Connection scheme and circuit for frequency measurement
