Gantner e Series User Manual

e.bloxx A6-2CF
MEASUREMENTS
HB_EBLOXX-A62CF_E_V19.doc 21
Gantner Instruments Test & Measurement GmbH
4. MEASUREMENTS
4.1. General
The e.bloxx A6-2CF has 1 analog input, 2 analog outputs, 6 digital inputs and 4 digital outputs. The configuration of the
inputs and outputs of the module can be done with the Configuration Software ICP 100 as required by the application.
The applications in the field of testing require a high flexibility in signal conditioning. The e.bloxx A6-2CF provides a wide
range of signal conditioning functionality:
- Zero setting
- Tare
- Low pass filter
- Factor
- Maximum
- Minimum
- Peak to peak signal
- Enveloping curve
- Sample and hold
- Frequency measuring
- Counter
- Arithmetic functions
- Limit switches
- Tolerance band
- 2-point controller
The Configuration Software ICP 100 permits a flexible combination according to the application requirements.
This example diagram shows one possible function of the signal conditioning.

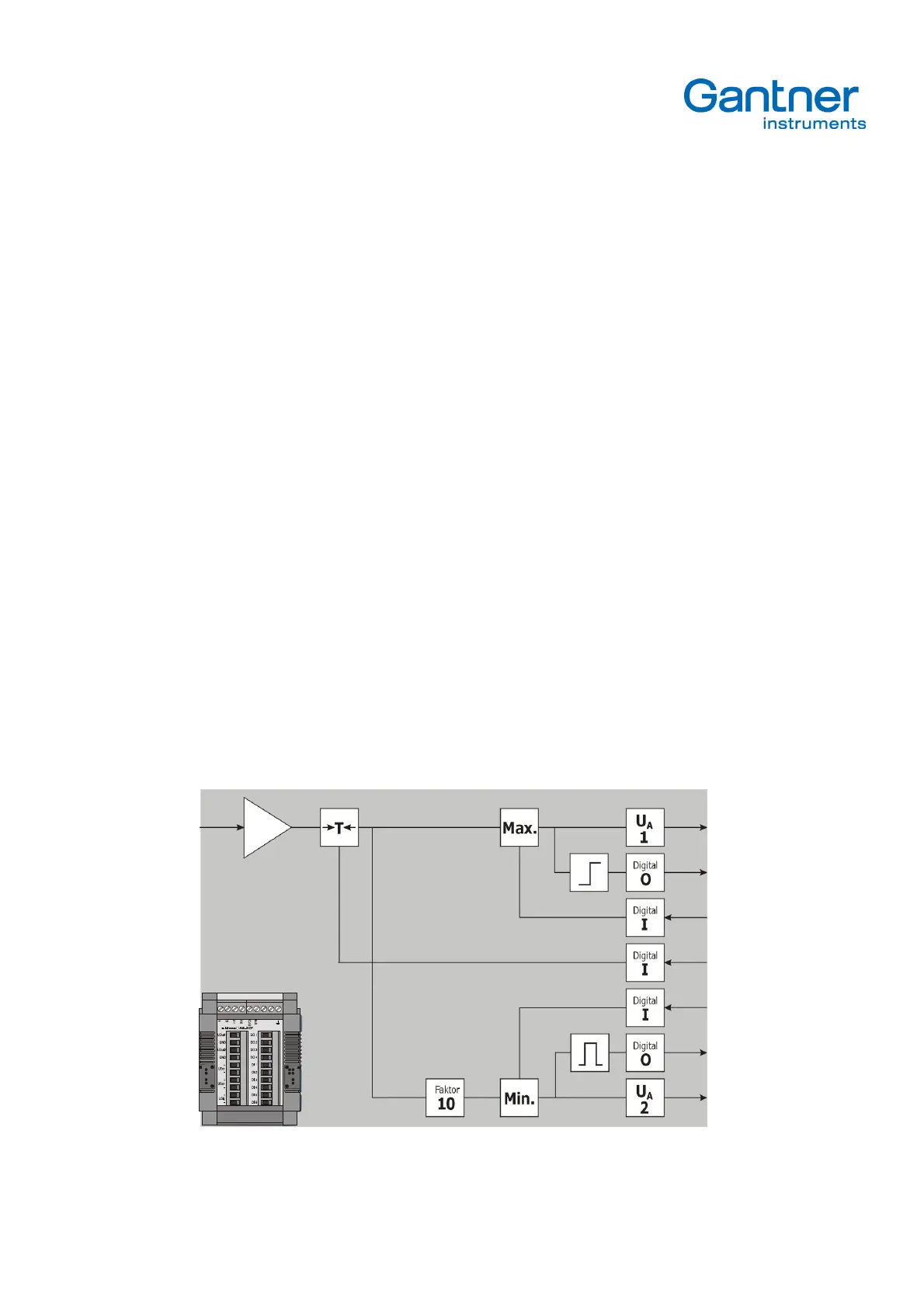

Picture 4.1. - Example for Signal Conditioning
