Gantner e Series User Manual

e.bloxx A6-2CF
CONFIGURATION
HB_EBLOXX-A62CF_E_V19.doc 67
Gantner Instruments Test & Measurement GmbH

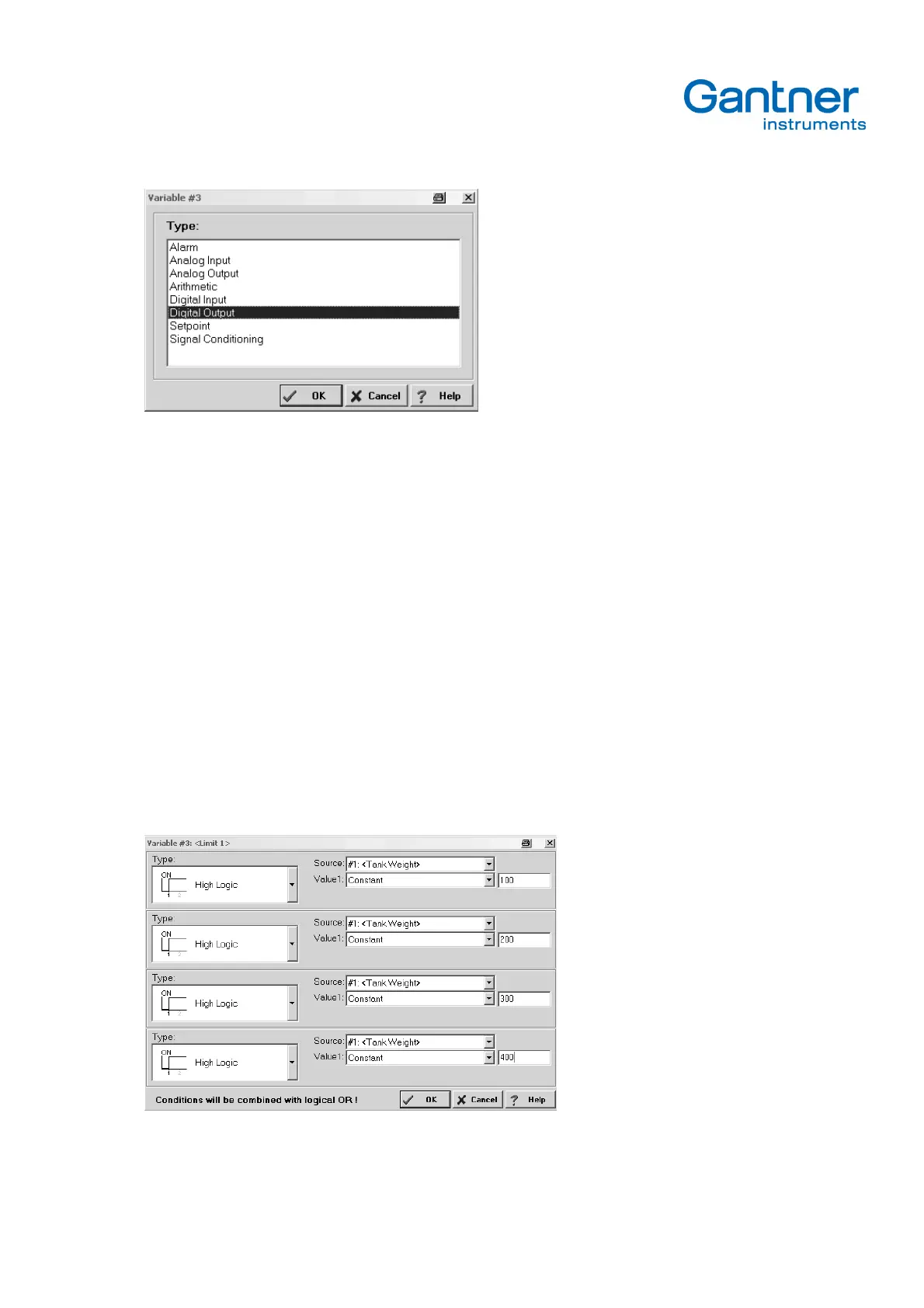

Columns "Variable Name" and "Format/Adjustment"
According to chapter 5.4.2 Signal Conditioning .
Column "Sensor"
This column is not relevant for the digital outputs.
Column "Type of"
Offers the possibility to select process out or state.
Columns "Connection" and "Terminals"
These columns are fix and showing the connection (open collector) and the used terminals. The first selection will use
digital output 1.
Column "Additionals"
Is in the column Type of the option process out selected, the functionality of the column "Additionals" is identical to the
function in the type alarm.
