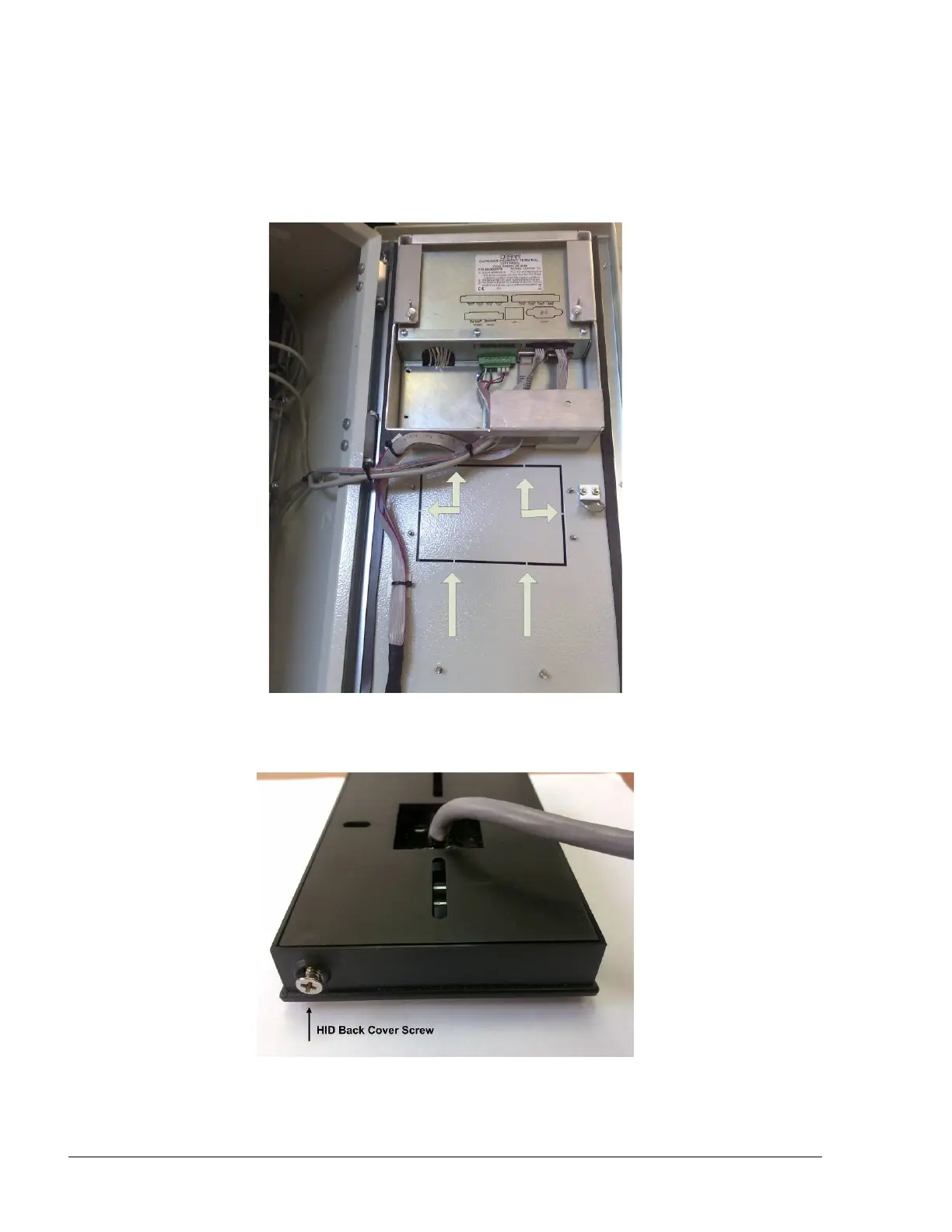

Gasboy Islander PLUS - Figure 4. Rectangular Plate Connecting Points Location; Figure 5. HID Back Cover Removal

2. Cut and remove the rectangular metal plate from the internal side of the pedestal door. Use a
cutter to cut the six connecting points holding the plate to the door. See arrows (Figure 4) for
location of the connecting points that need to be broken. Make sure no sharp edges remained
after cutting and the surface is smooth. Discard the metal plate.
Figure 4. Rectangular Plate Connecting Points Location
3. Remove the HID back cover by opening the side screw (see Figure 5).
Figure 5. HID back cover Removal
