3-2.3. Safety Distances
Figure 3-1 shows the safety distances required for the installation of the Islander PLUS adjacent
to the dispensers. When mounting the Islander PLUS, a minimum clearance of 18 inches
(0.5m) between the unit and any of the pumps or the dispensers must be maintained. This
clearance allows room for the wiring and maintenance of the system.
Islander PLUS is designed and approved for installation and use at a convenient location at or near
fuel Island in the appropriate hazardous (classified) location:
Where hazardous location is classified as Class 1, Division 2 and it does not extend higher
than 18 inches (0.5m) from surface and
A minimum safety separation of 18 inches (0.5m) from any nearest pump/dispenser.

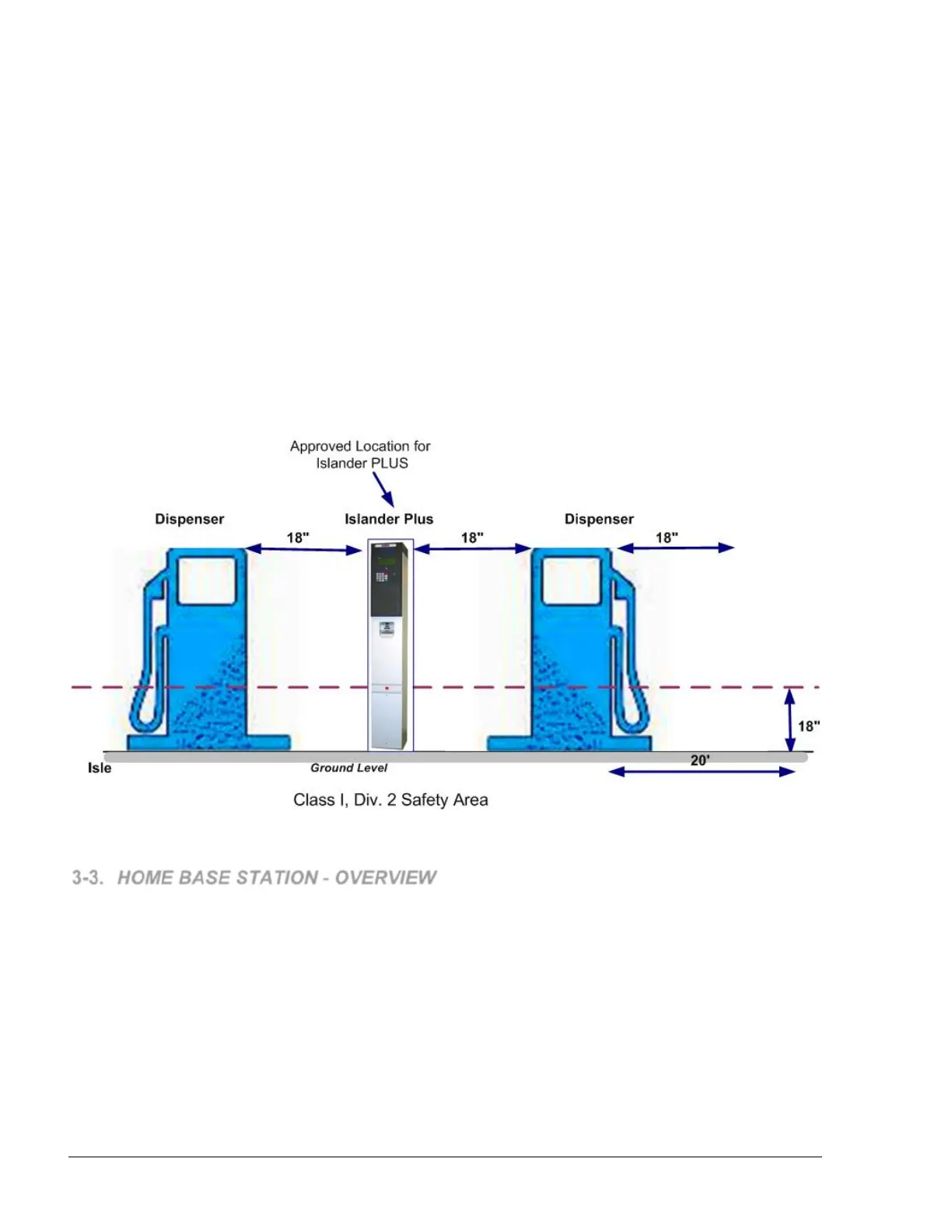

Figure 3-1 Islander PLUSInstallation Control Drawing
3-3. HOME BASE STATION - OVERVIEW
3-3.1. General
Prior to installation, you are required to obtain an overview of the Home Base Station functional
architecture. This overview is required in order to draw an architecture diagram with all
components and their communication links.
Figure 3-2 shows a functional diagram of the links within the Home Base Station with 4 mechanical
pumps.
Figure 3-3 shows a functional diagram of the links within the Home Base Station with 8 mechanical
pumps.
Islander PLUS Manual
44
