Gasboy Islander PLUS User Manual

9. Anchor the Pedestal Pole onto the Pedestal Plate with the four expansion bolts protruding
from the inner ground.
10. Secure the Pedestal Pole with four M10 flat washers (4 in Table 3-1) and M10 nuts
(1 in Figure 3-8) (3 in Table 3-1)
11. Insert the Rosette (see Figure 3-9) (6 in Table 3-1) on the Pedestal Base, and secure it to
Pedestal Pole with four M10 flat washers (4 in Table 3-1) and M10 nuts (1 in Figure 3-8) (3
in Table 3-1).
3-6.8. Sealing Conduits
The conduits shall be sealed in accordance with NFPA requirements and local regulations, to
prevent the passage of gases through conduits, cables and conductors. The fittings are requested
wherever volatile liquids or gases are present in the surroundings (see Figure 3-12).

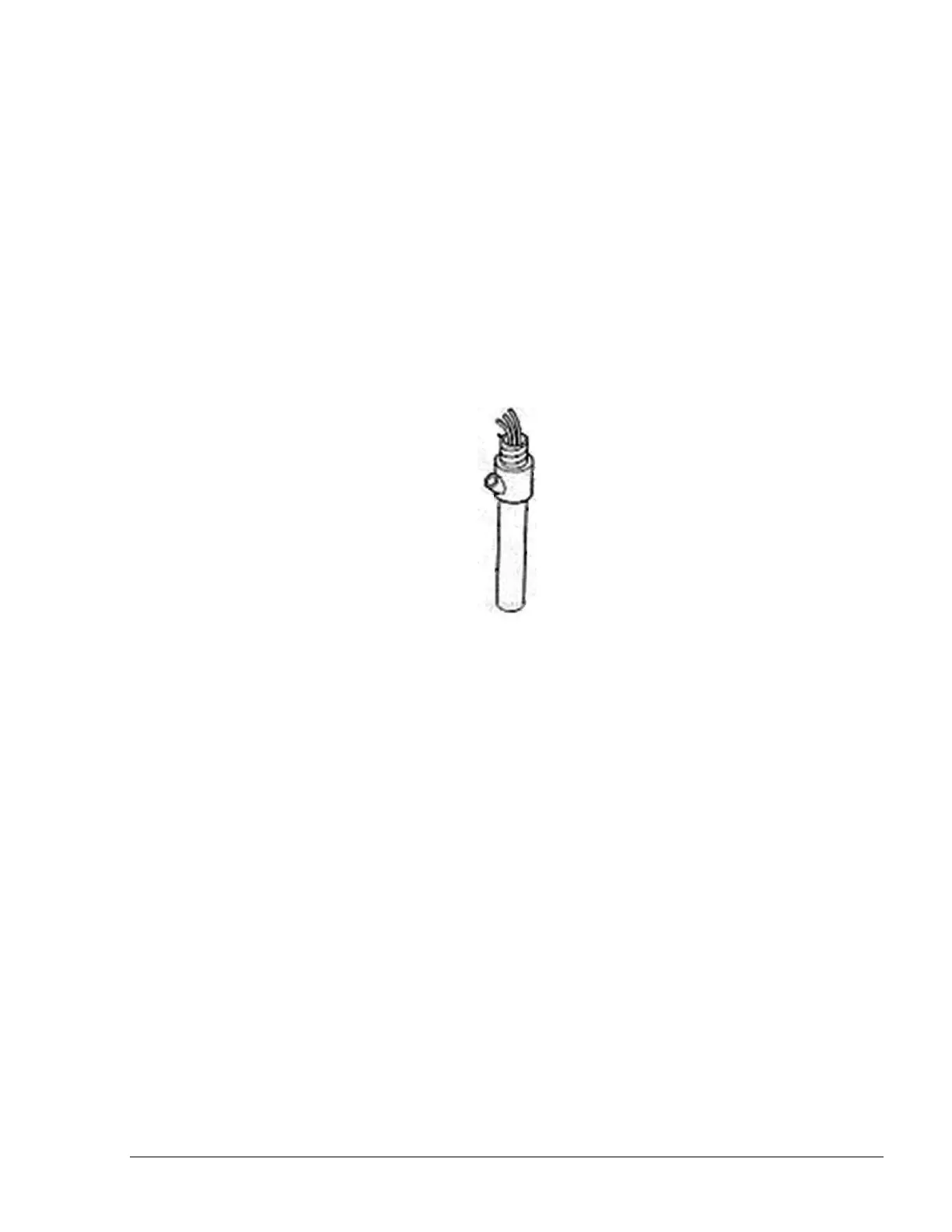

Figure 3-12 Conduit Fitting
Islander PLUS Manual
57
