3-9.2. Tokheim Electronic Pump
The wiring for the Tokheim electronic pump is provided as follows:
• Figure 3-24 shows the specific wiring connections between OrIC and the Tokheim
pump nozzle, and the terminals that differ from the Mechanical Pump.
• Figure 3-23 shows the wiring list for connection to the Terminal, as published in the
Wiring Label added to the inner door. The Wiring Label follows the physical
location of the wires in the Terminal Block, as shown in Figure 3-14.

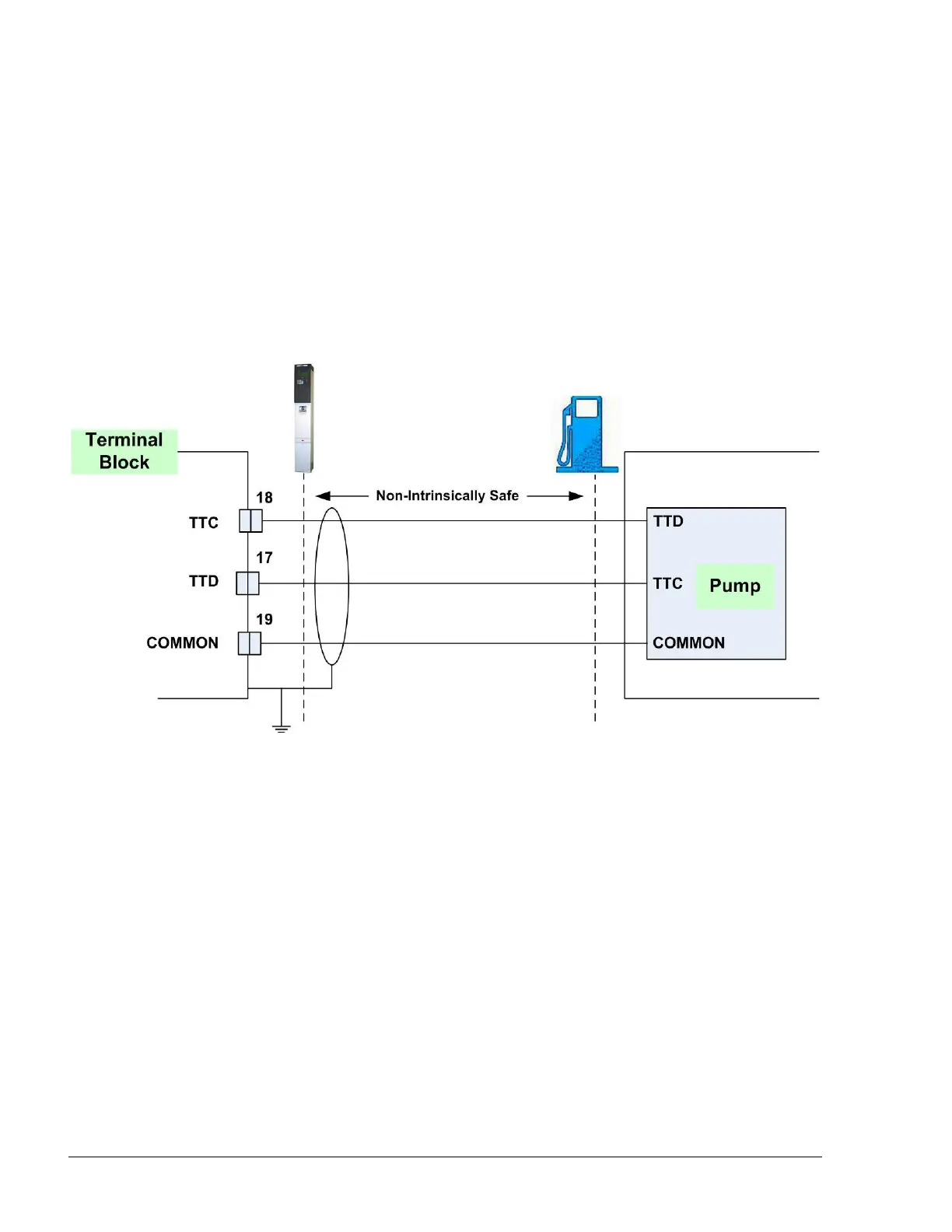

Figure 3-24 Tokheim Electronic Pump - Wiring Diagram
