2-5. CONDUITS INSTALLATION
2-5.1. General
This paragraph describes the infrastructure groundwork necessary to install the conduits in the
Island (see Figure 2-1).
2-5.2. Installing Conduits in Island
Proceed as follows:
1. Determine the location of the Islander PLUS in the Island.
2. Dig and prepare passageways for the necessary conduits
3. Take care to route the following conduits to the inspection boxes:
• Low voltage cables inspection box:
o One conduit to Office (control room)
o One conduit to each pump
o Two conduits to Islander PLUS
• High voltage cables inspection box:
o One conduit to Office (control room)
o One conduit to each pump
o Two conduits to Islander PLUS
2-5.3. Sealing Conduits
The conduits shall be sealed in accordance with NFPA requirements and local regulations, to
prevent the passage of gases through conduits, cables and conductors. The fittings are requested
wherever volatile liquids or gases are present in the surroundings (see Figure 2-3).

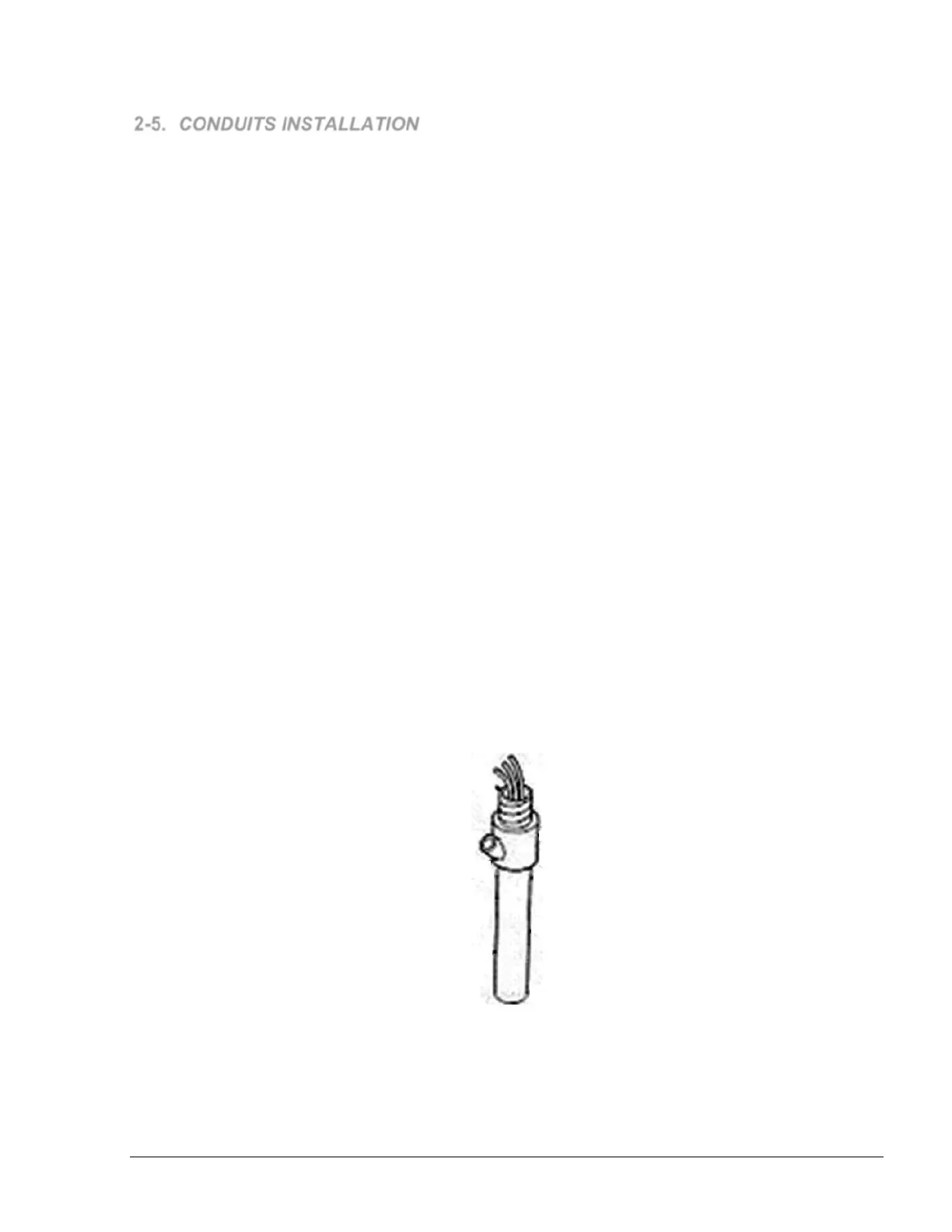

Figure 2-3 Conduit Fitting
