3-10. WIRING TO GENERAL COMPONENTS

3-10.1. General

The following paragraphs show the specific wiring between the Islander PLUS Terminal Block and

components common in both types of Home Base Stations, either with mechanical or electronic

pump.

3-10.2. Connection to TLG Controller

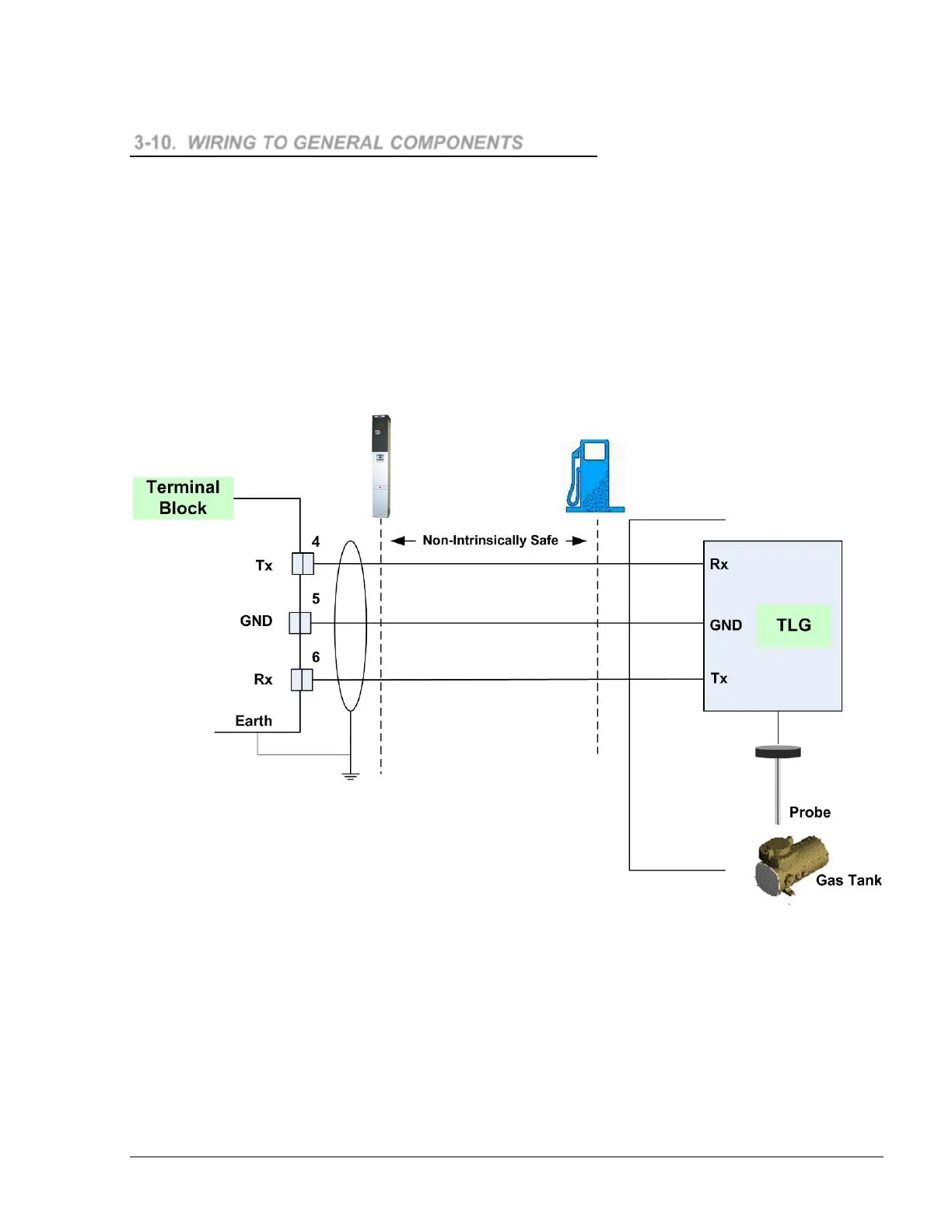

Figure 3-27 shows the required connection between the TLG controller in the site and the Islander

PLUS Terminal Block.

Figure 3-27 Terminal Block – TLG Wiring Link

3-10.3. Connection to Journal Printer

A journal printer (P/N M09680B090, see Figure 3-28) is available for journaling important

operations such as all transactions on hard copy.
