6. Place the unit in the hole while the HID logo faces the front of the pedestal and the cable facing
the back. Place the four holder holes on the four studs soldered to the door and tighten the nuts
and washers (P/N 815102500 and 815302200, respectively). In cases where installing the unit in
Islander PLUS 8-hoses pedestals, proceed as follows:
a. Secure only three nuts and washers, excluding the nut in the upper left corner
b. Place a spacer on the upper left corner stud (see Figure 9)
c. Place the two remaining spacers and install the OrCU holder
d. Secure the OrCU holder, utilizing three M3 flat screws
e. Install and secure the OrCU module to the holder, utilizing four 4X10 screws and
washers

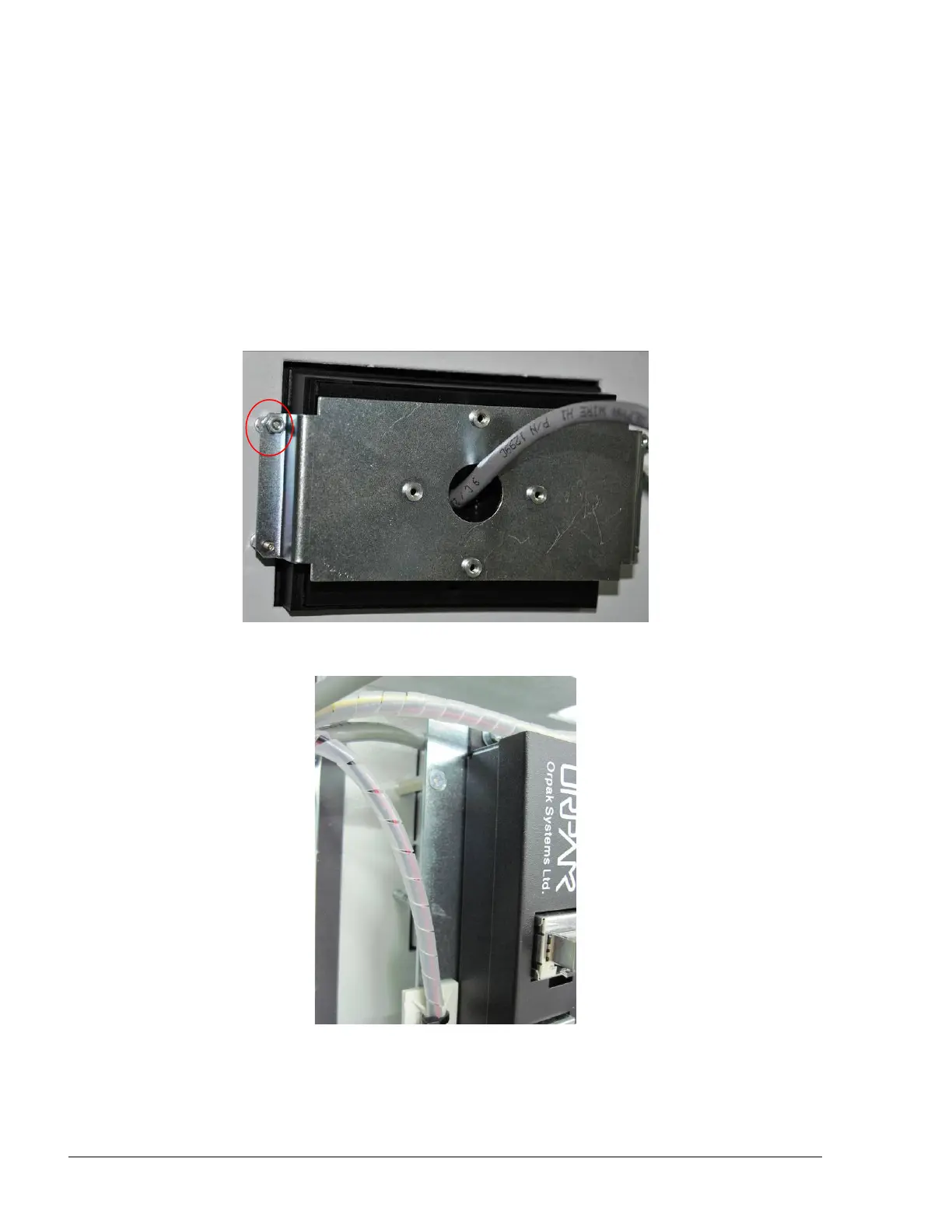

Figure 8. HID Mounted on Pedestal Door
Figure 9. Upper Left Corner Spacer
7. Connect the HID connector to the designated connector in the OrPT (for OrPT versions 5.24.03
and up only) and tighten the connector screws.
