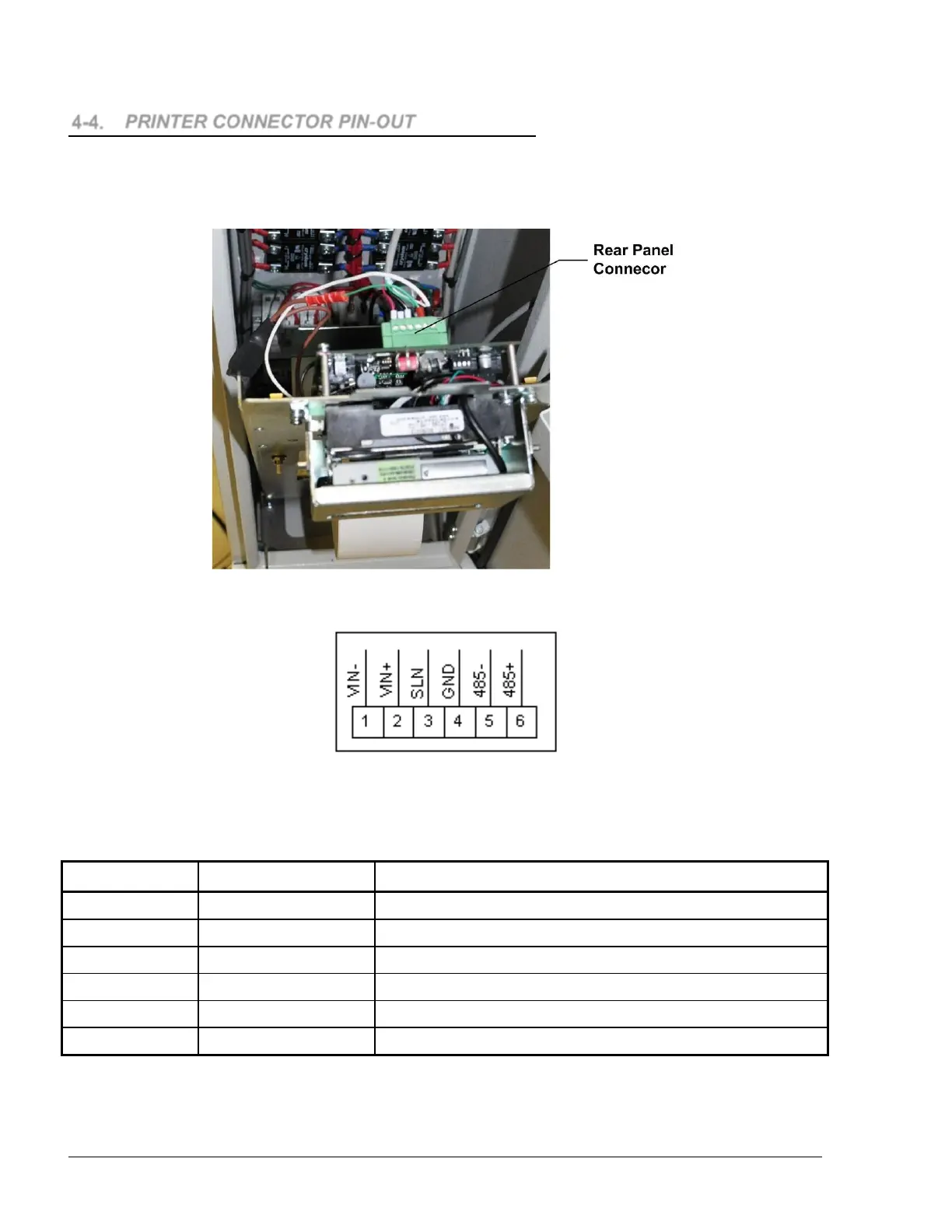

4-4. PRINTER CONNECTOR PIN-OUT
The printer connector is located on the printer rear panel (see Figure 4-4). It provides the printer
both the communication link and the power supply input (24 – 26 VDC). The power is supplied via
an external power supply.Figure 4-5 and Table 4-2 show the Printer connector pin-out description.
Figure 4-4. Printer Connector
Figure 4-5. Printer Connector – Pin-out Description
Table 4-2. Printer Module Connector – Pin-out Description
Pin Number Functionality Description
1 VIN - DC Power Supply GND
2 VIN + DC Plus Voltage
3 SLN Not Applicable
4
GND
RS-485 GND
5 485 - RS-485 Communication Line
6 485 + RS-485 Communication Line
