Terminal No.

Signal Name

Functional Description

10 PULSER_2 Pulser Input – Nozzle 2

11 PULSER_3 Pulser Input – Nozzle 3

12 PULSER_4 Pulser Input – Nozzle 4

PULSER_5

Pulser Input – Nozzle 5

PULSER_6

Pulser Input – Nozzle 6

15 PULSER_7 Pulser Input – Nozzle 7

16 PULSER_8 Pulser Input – Nozzle 8

49 LOAD 1 Pump control output - Nozzle 1

50 LOAD 2 Pump control output - Nozzle 2

51 LOAD 3 Pump control output - Nozzle 3

LOAD 4

Pump control output - Nozzle 4

53 LOAD 5 Pump control output - Nozzle 5

54 LOAD 6 Pump control output - Nozzle 6

55 LOAD 3 Pump control output - Nozzle 7

56 LOAD 8 Pump control output - Nozzle 8

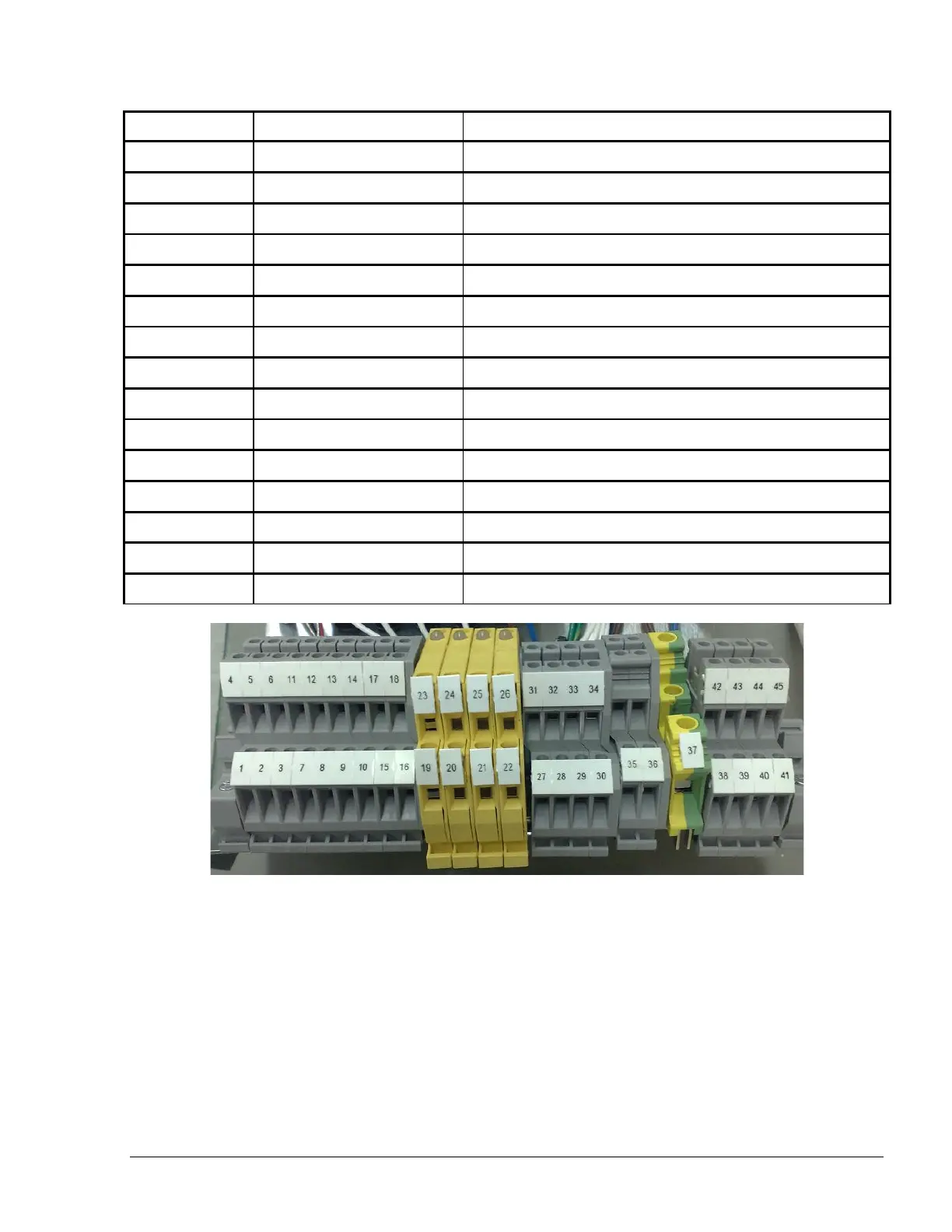

Figure 3-14 Islander PLUS Terminal Block
