3-7. WIRING
3-7.1. General
After completing the installation procedure, perform the following wiring procedures. The wiring is
performed in the Islander PLUS Terminal Block only.
The wires should be pulled from the conduits that protrude from the Installation Base, or in the
opposite direction, from the Terminal Block to the device in the Home Base Station.
3-7.2. Types of Wiring
The wiring in the Terminal Block differs in accordance with the type of pump installed in the Home
Base Station. There are several types of pumps:
• Mechanical Pump
• Electronic Pumps
The following paragraphs provide the wiring requirements for each type of pump.
3-7.3. Wiring Requirement
For any type of wire, prior to inserting it to the terminal block, proceed as follows:
1. Insert any wire with a terminal lug only.
2. Use the proper Terminal Crimper to attach the lug to the wire.
3. For UL Listing; The Terminal Lug must be a UL recognized component.

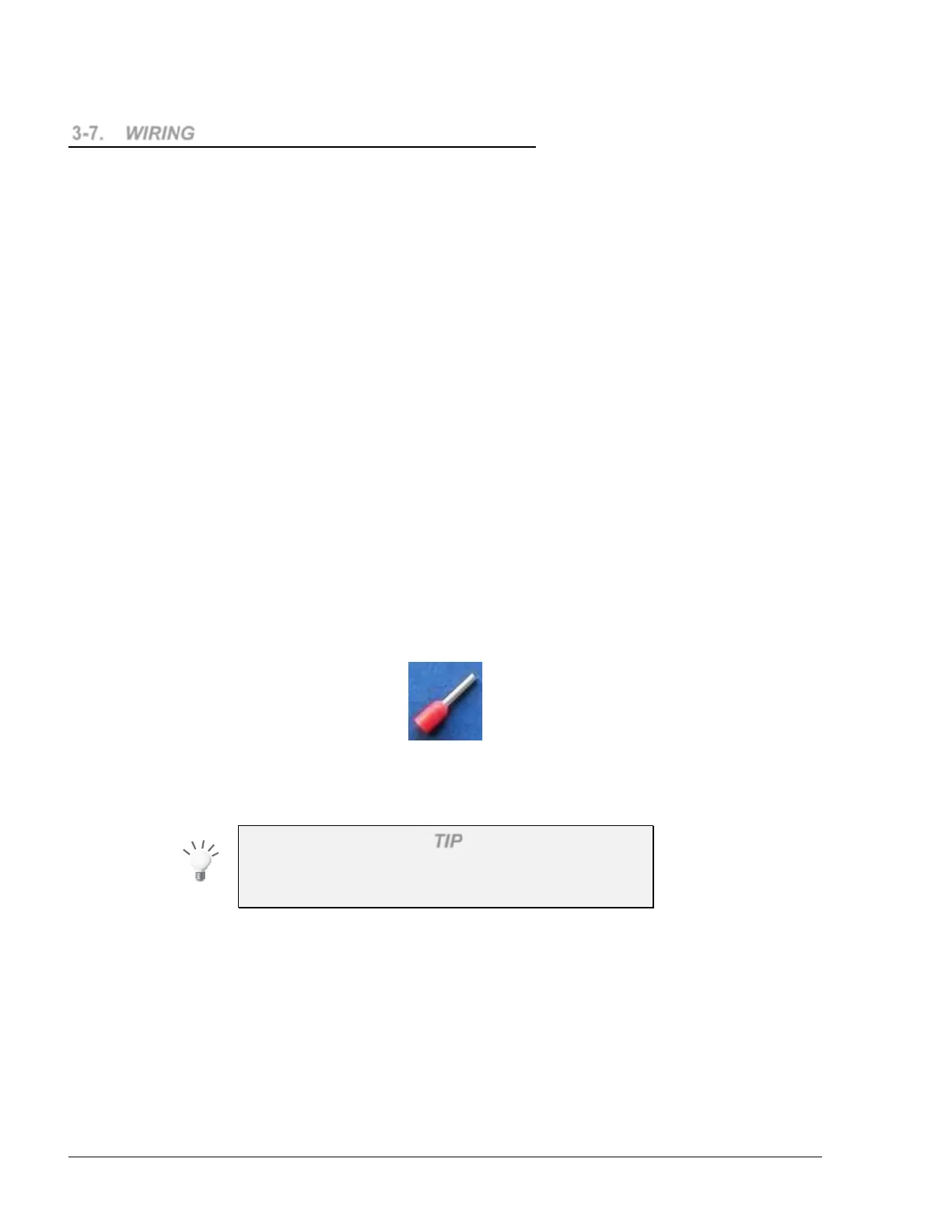

Figure 3-13 Terminal Lug
TIP
Mark each cable at its both ends with a number or
sign that will identify its functionality in the future.
3-7.4. Types of Cable
The following cables are in required for the Islander PLUS installation:
• Power cable – In accordance with local regulations
Islander PLUS Manual
58
