Gasboy Islander PLUS User Manual

Mechanical dispensers require the installation of MPIC cards on the 8-port Convertor. Electronic
dispensers (Tokheim, Current Loop, RS-485) require installation of interface relevant cards on the
8-port Convertor.
1-5.6. Contactless Tags/Cards
1-5.6.1. Data Key Sockets – Fleet key
The pedestal can be supplied with an optional key reader for payment with Data Key
Sockets (see Figure 1-9). The key reader is installed behind the printer door cover on the
front panel.

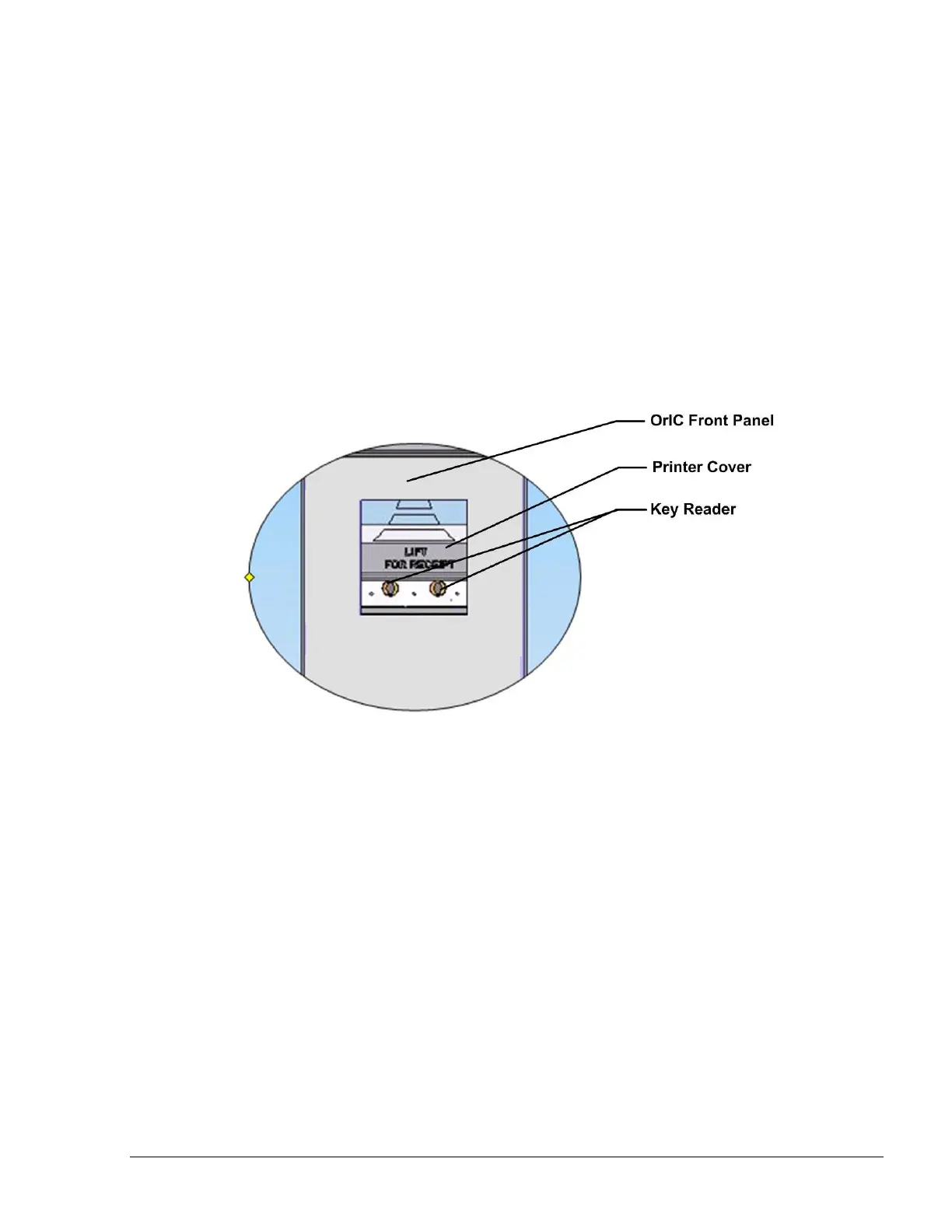

Figure 1-9 – Islander PLUS with Data Key Reader (Optional)
1-5.6.2. HID Device
The pedestal can be supplied with an optional HID card reader for payment with specific
cards. The HID reader supports Track 2 and 26/37/32 bit card formats. For further
information on HID reader format setup, please refer to the OrPT Installation, Setup and
Operation Manual, P/N MDE-4819.
The HID reader is installed behind the decorative black cover of the front panel (Refer to
Appendix C).
1-5.6.3. Configurations
Table 1-1 define all the available product numbers for the different configurations of Islander
PLUS:
Islander PLUS Manual
17
