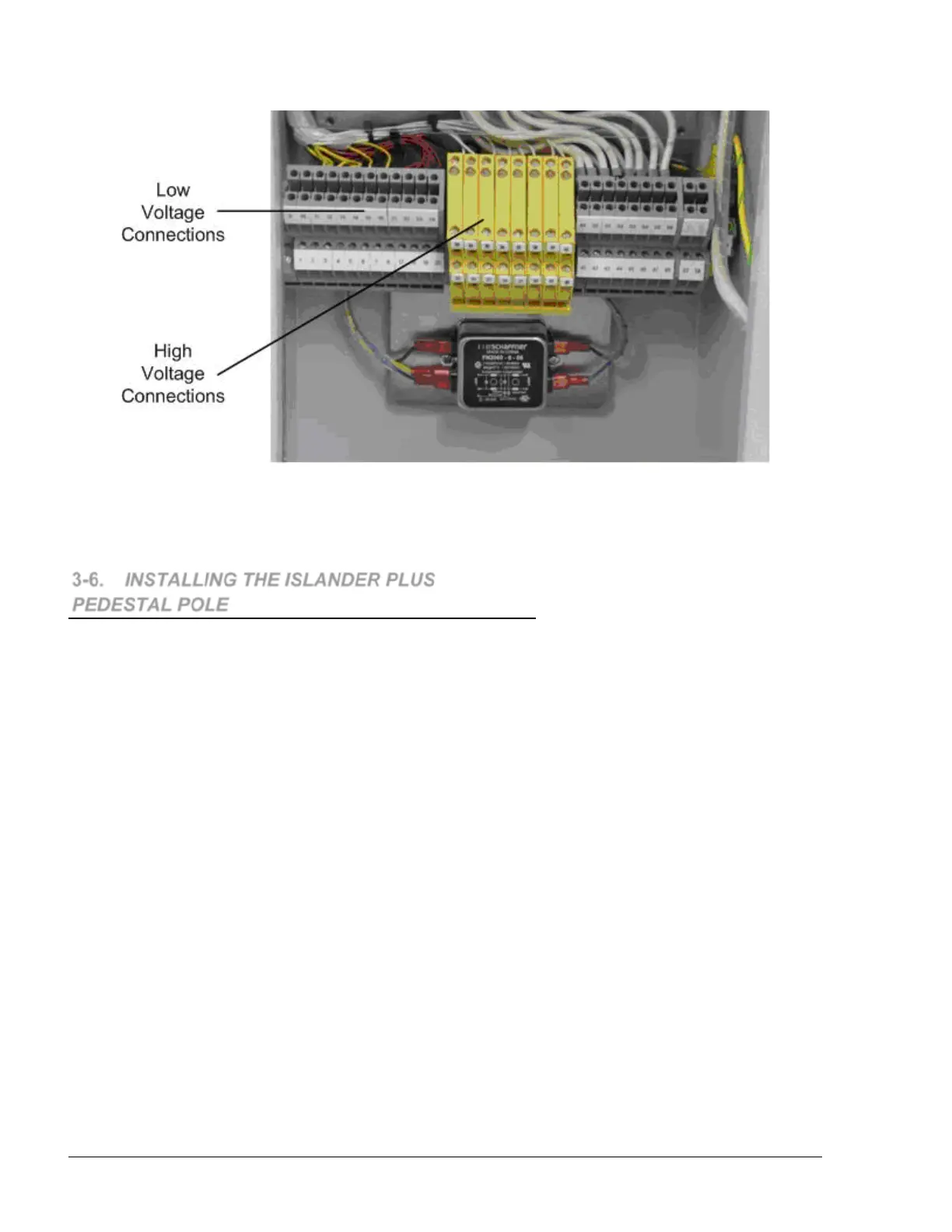

Figure 3-6 Islander PLUS Terminal Block, Power and LAN Connections (8 pumps)
3-6. INSTALLING THE ISLANDER PLUS
PEDESTAL POLE
3-6.1. General
The Islander PLUS pedestal is mounted in the Home Base Station (see Figure 3-7) on a base
plate that is fastened to the Home Base Station concrete floor. The base plate upper side
includes 4 holding screws immersed in the Home Base Station concrete floor.
3-6.2. Installation Procedure Steps
Installation of the Islander PLUS pedestal consists of the following general steps:
• Running conduits to the pedestal site
• Installing the Base Plate
• Installing the Pedestal Base
• Installing the Pedestal
• Running the cable conduits to the installation hole and filling all open holes
• Installing the Rosettes to firmly lock the Islander PLUS pedestal.
3-6.3. Pedestal Site Preliminary Setup Procedures
Proceed as follows:
1. Determine the spot for the Islander PLUS pedestal installation
Islander PLUS Manual
52
