Instructions for SL500DC/SL800DC
www.gatexpertstore.com

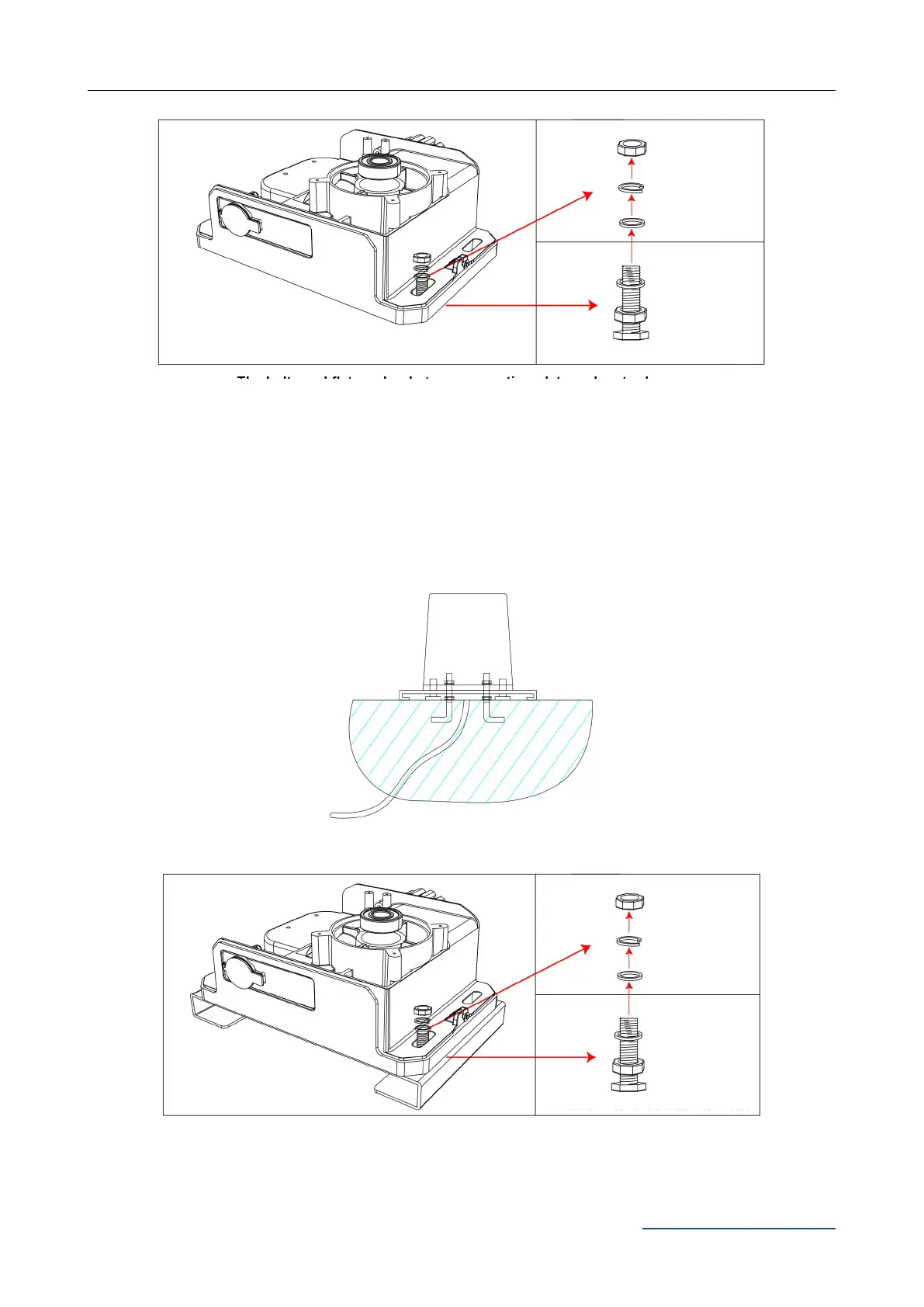

The bolts and flat washer between mounting plate and motor base are
used for adjusting the height of the motor.
The bolts and flat washer between mounting plate and motor base are
used for adjusting the height of the motor.
Figure 10
With Mounting Plate
· Pre embed the anchor bolts as per Φ10 holes in Figure 8 before concreting, after concrete
hardening, place the mounting plate, fit and tighten anchor bolts.(as per figure 11).
· Bolt motor to the mounting plate using the M8 x 40mm bolts with spring and flat washers
provided and tighten as required (as per figure 12).
Figure 11
Figure 12
