Instructions for SL500DC/SL800DC

www.gatexpertstore.com

Step 4 - Motor Pad Footing

· The motor pad concrete footing requires an area of no less than 450mm long x 300mm wide

and a minimum depth of 200mm (Standard requirement).

· Ensure surface is level and parallel to the driveway.

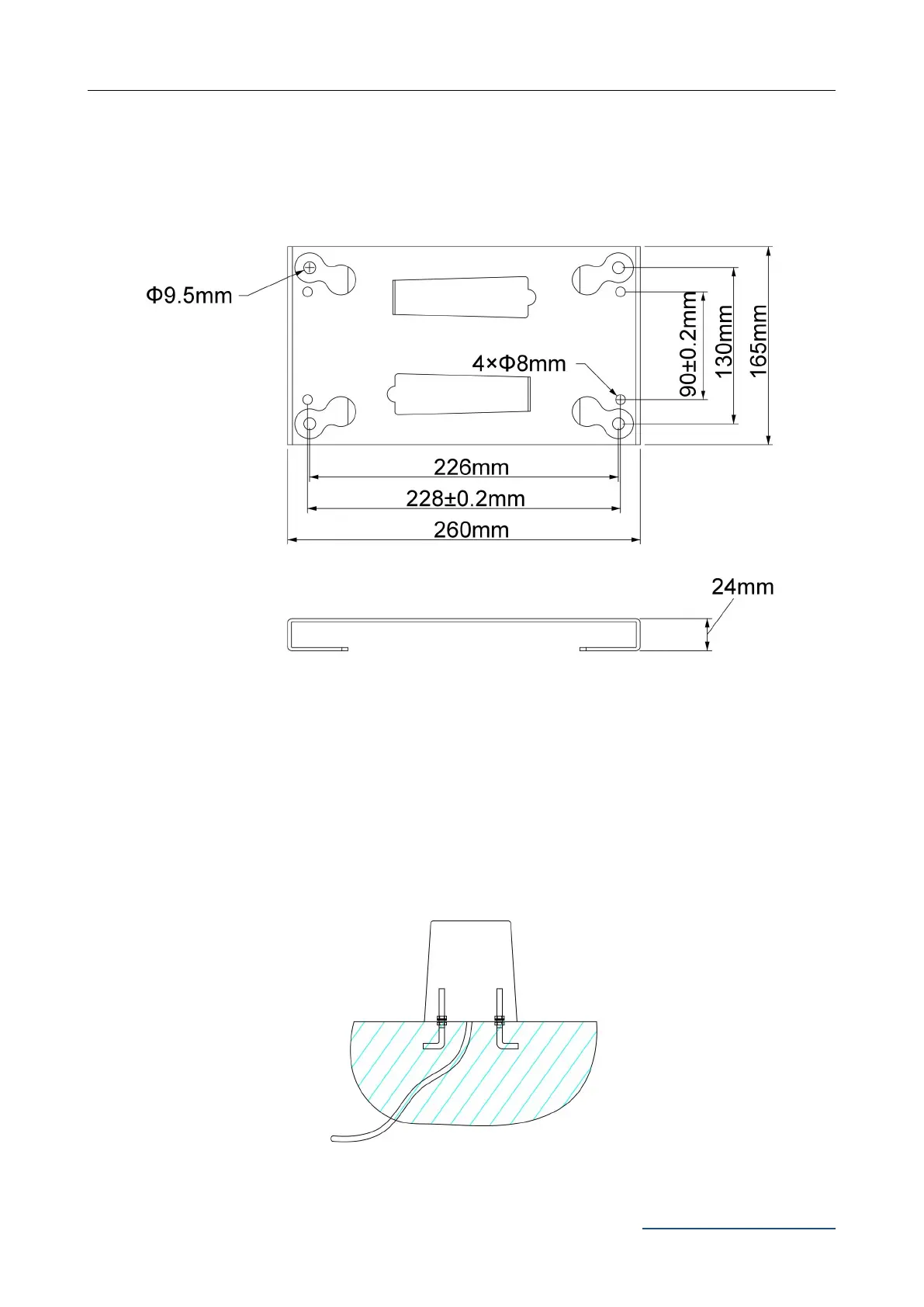

Mounting Plate Dimensions

Figure 8

Step 5 - Fitting Mounting Plate and Motor

Without Mounting Plate

· Pre-embed the anchor bolts according to holes in motor base before concerting (as per Figure

9).

· After concrete hardening, bolt the motor with M8x40mm bolts, spring and flat washers provided

and tighten as required. (The height can be slightly adjusted by bottom bolts as per Figure 10).

Figure 9
