Instructions for SL500DC/SL800DC
www.gatexpertstore.com
exit the manual control mode, and check if the two magnet limit switch stops are within
the detection range of the magnetic limit switch.
Quick Setting for Running Travel
Precondition:
1. Before setting the running travel, please make sure that the gate is completely open.
2. Please install the limit switch stops at limit switch position and make sure the polarities
are correct, after installed, please do not move or remove it anymore.
A. Operation Instruction
a. Press “+” button for 2 sec., motor will automatically start it’s travel learning.
b. During gate closing, the indicator lights will be on from L5 to L1 in sequence and
repeatedly.
c. During gate opening, the indicator lights will be on from L1 to L5 in sequence and
repeatedly.
d. After travel is set, the indicator lights L1-L5 will be on in sequence, then all will flicker
once and off.

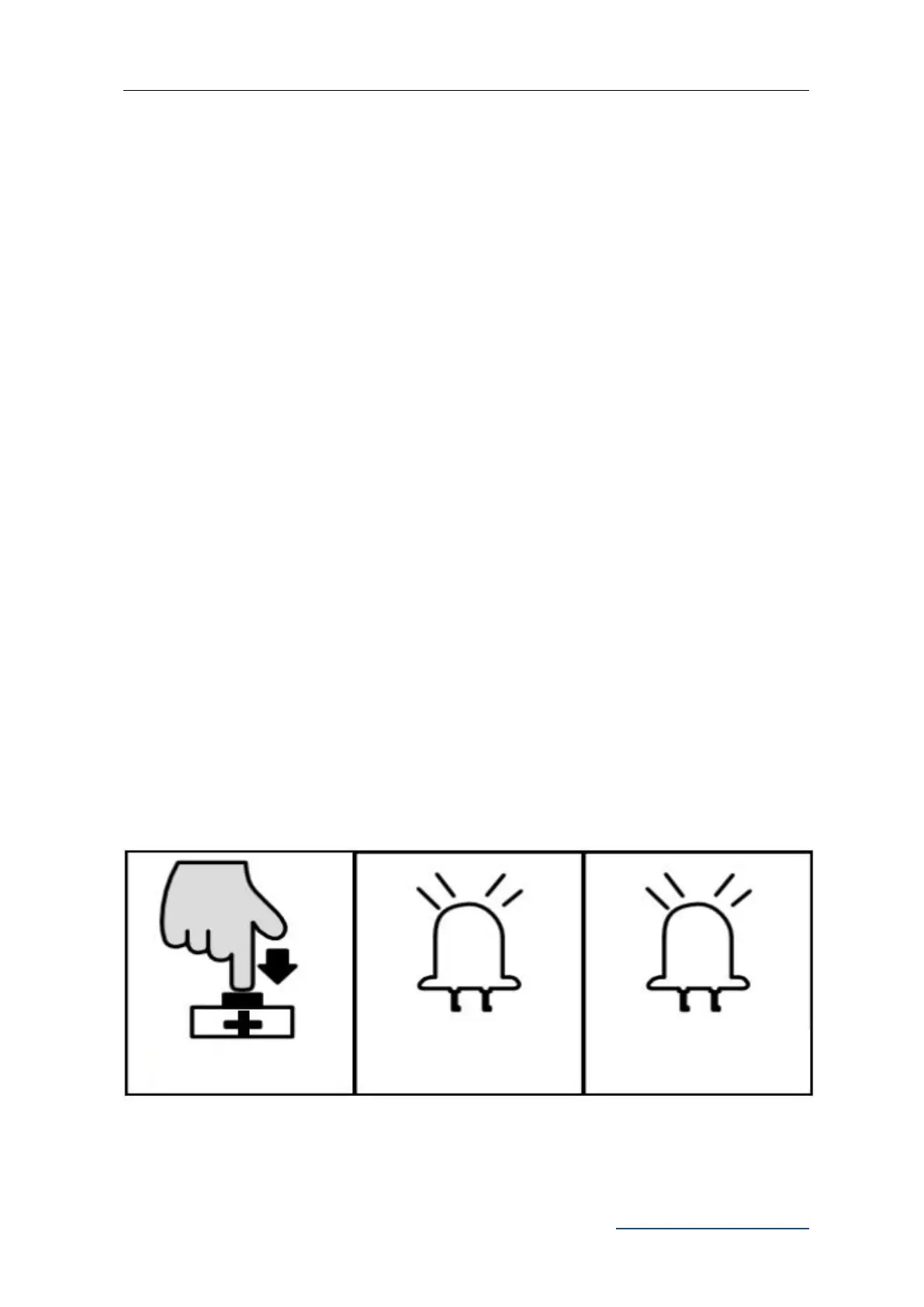

B. Operation Graphic Illustration
1. Enter into Quick Setting:
2. After Travel is Set:
During opening, L1 to L5 will be
on in sequence and repeatedly
During closing, L5 to L1 will be
on in sequence and repeatedly
To Next Page
