Instructions for SL500DC/SL800DC
www.gatexpertstore.com
Step 9 - Testing Travel and Limit Stop Position
Ensure gate opener is installed as per step 4, 5 and 6 and the sliding gate is in the middle position.
Limit switch stops are correctly installed and well contacted with magnetic limit switch. Please refer
to page 20-21 for the setting of open and closed limit switch position.
The ideal closed final position for the gate frame is 10-15mm from closed gate end catch.

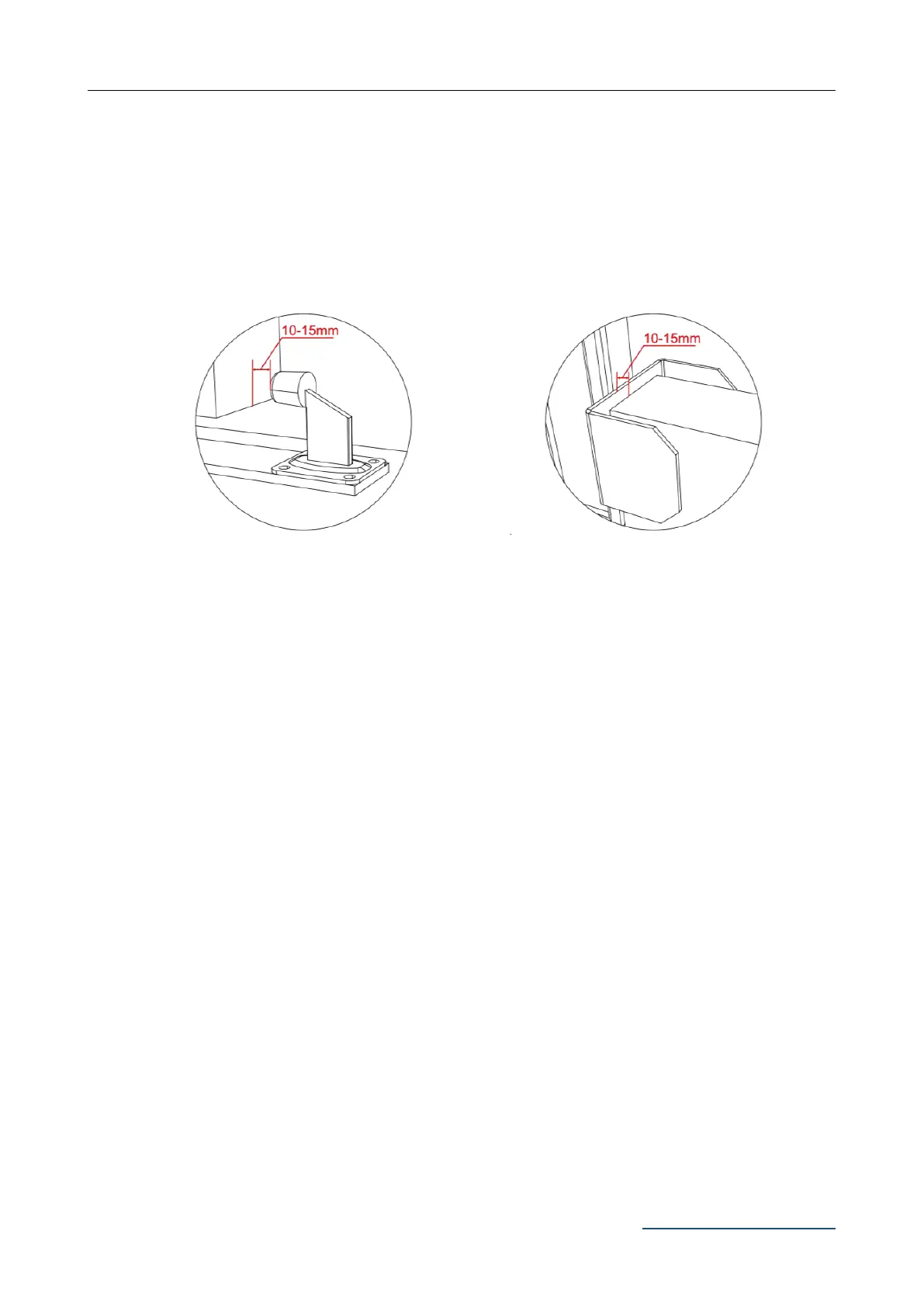

Figure 19
Now the basic open and closed positions are set, for further setting functions and adjusting
parameters, please refer to pages 14-46 in this manual.
