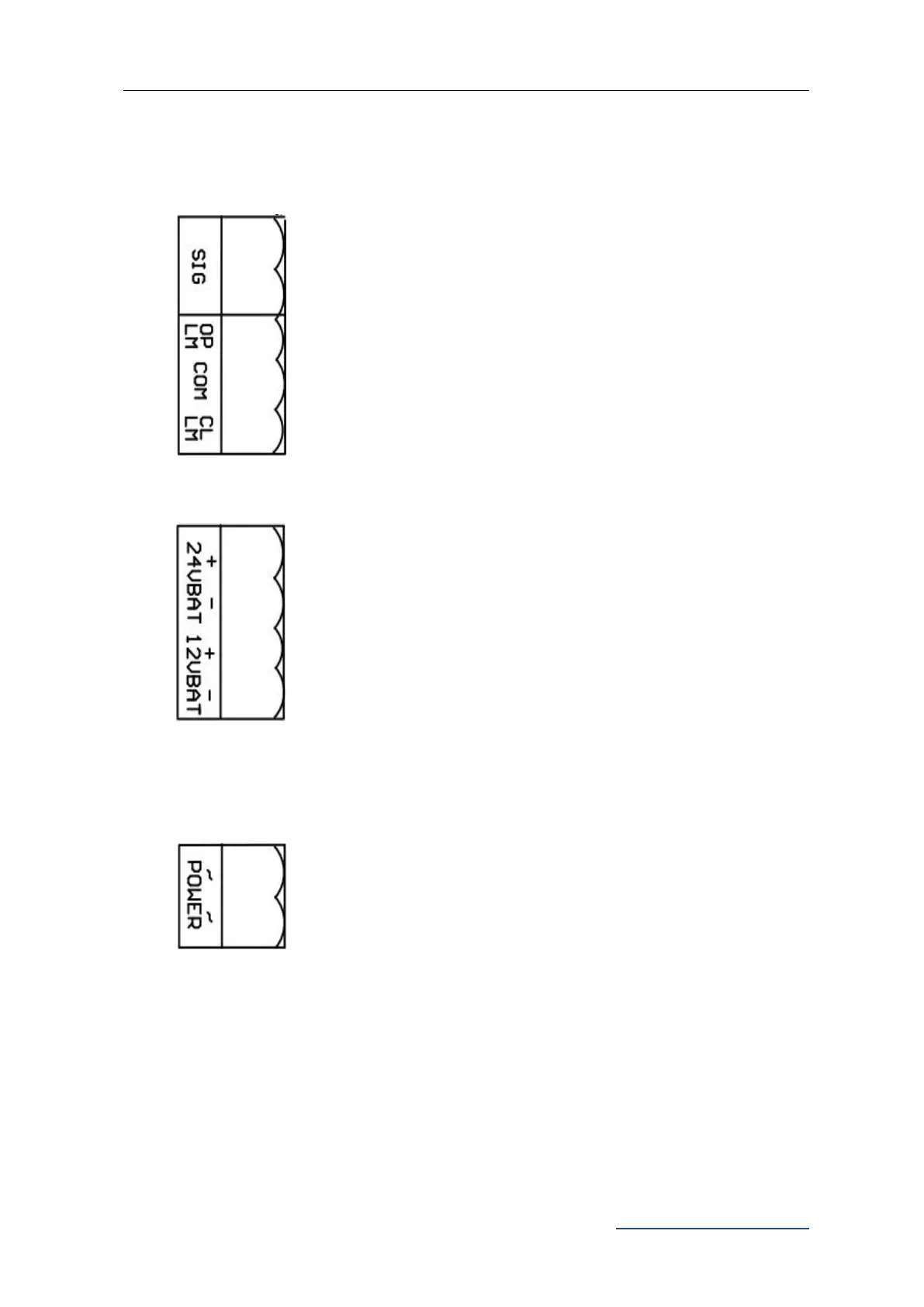

X6 Terminal:
SIG: Output close signal after gate closed in place.
OPLM: Open Limit Switch
COM: Limit Switch Common Terminal.
CLLM: Close Limit Switch
X4 Terminal:
24VBAT+: Battery Positive
24VBAT-: Battery Negative
Battery Specification: 24V/9Ah
12VBAT+: Battery Positive
12VBAT-: Battery Negative
Battery Specification: 12V/9Ah
Note: + and - must be wired correctly, wrong wring will
damage the control board.
X2 Terminal:
Power: Power Supply(Transformer Output)
Transformer Specification: 240VAC/22VAC or 120VAC/22VAC
Rated Power: 120W
