Step 3
Place the stand beam upright on the T-stand and follow number  to assemble.
(See Figure 2-4 & 2-5)
Step 4
Position the stand beam perpendicularly to part and put the screws into the holes and
tighten them as Figure 2-5. Then the complete picture of stand will be like Figure 2-4.

T-Stand


 Stand beam

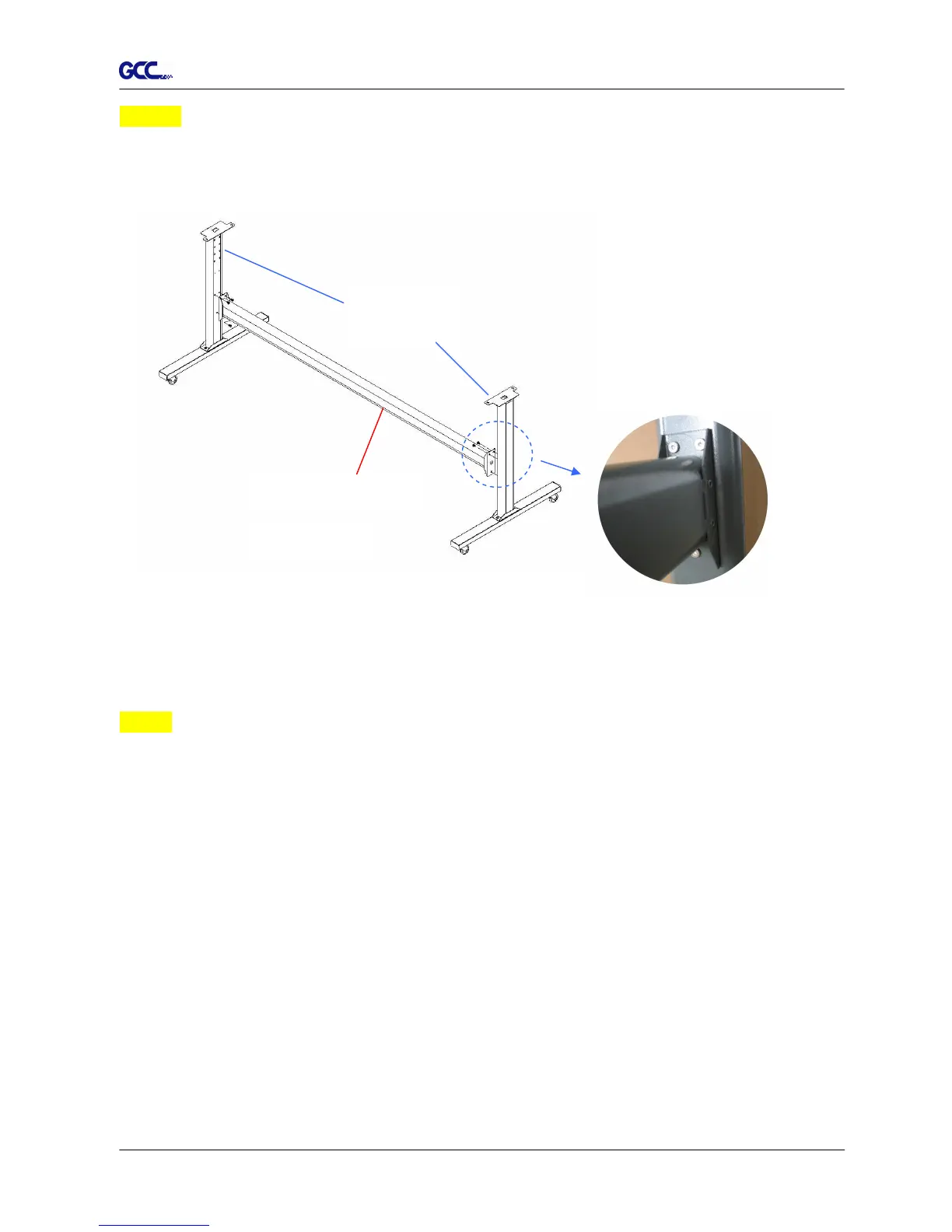

Figure 2-4
Figure 2-5
