2.8 Auto Cut-off system Installation
Step 1 Unscrew the Cover from the Tool Carriage using a screw driver (Figure 2-31 and 2-32).
Step 2 Manually disassemble the Cover, which will still be connected to the Tool Carriage
through wires (Figure 2-33 and 2-34).

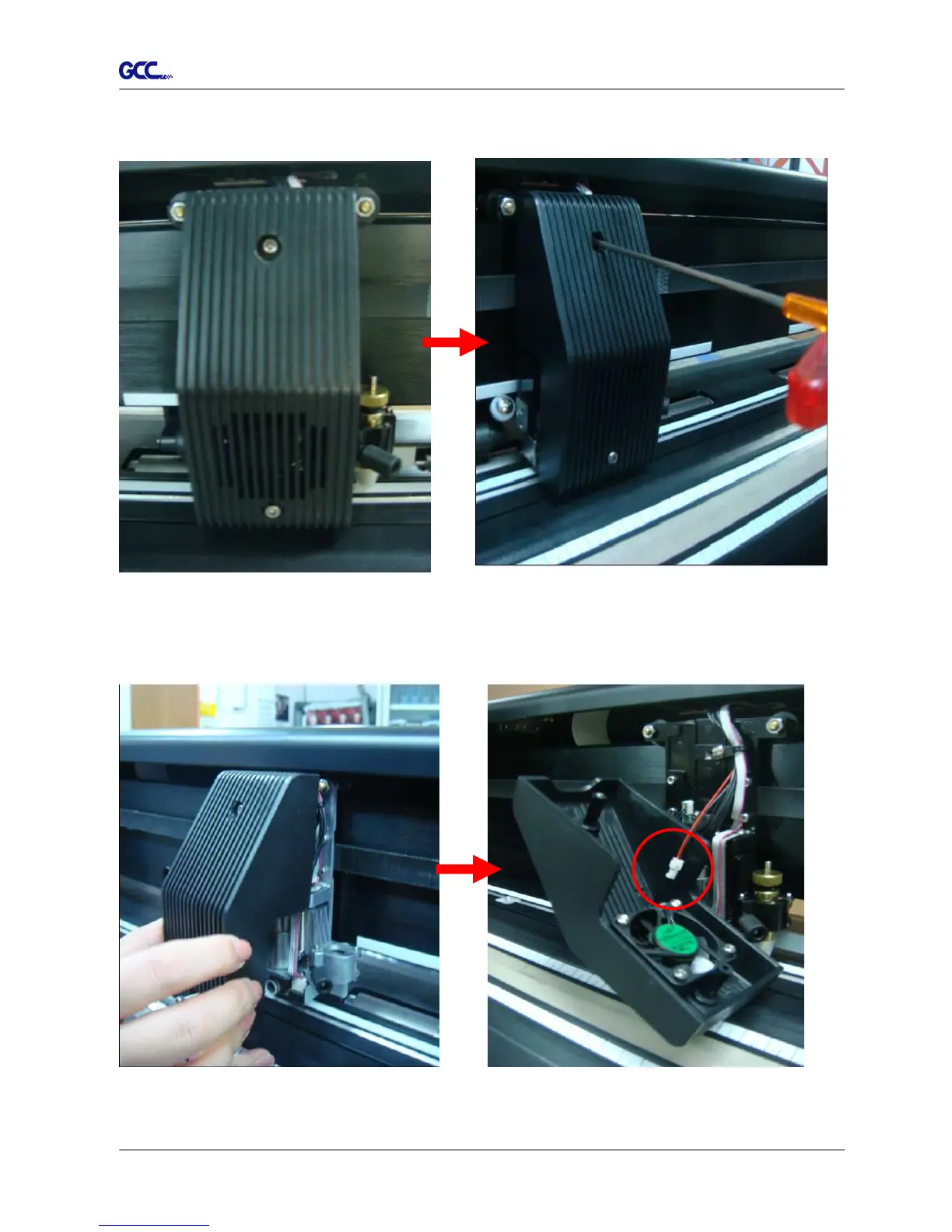

Figure 2-31 Figure 2-32
Figure 2-33 Figure 2-34
