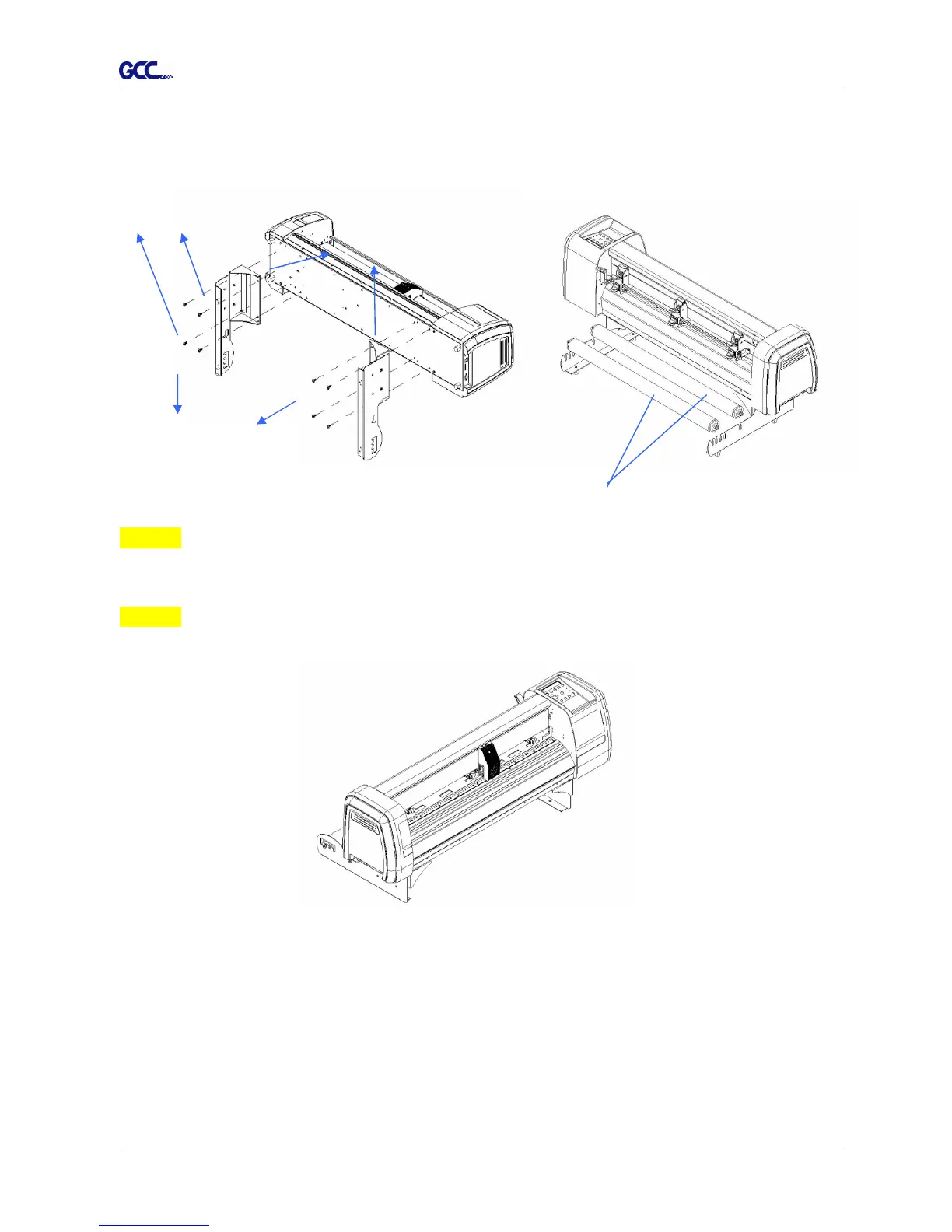

of the machine. Then, insert the M6 screws into the holes of Roll Holder support assembly
and tighten them with M6 L-shape screwdriver. Like Figure 2-9.
Step 5
Place the two roll holders into the holes of Roll Holder Support (Figure 2-10).
Step 6
The complete Desktop Media Support System will be shown as in Figure 2-11.
Figure 2-11
M6 screws
Screw holes
Roll Holder Assembly
Figure 2-10
Roll Holders
Figure 2-9
