RX Series User Manual
Installation 2-12
Step 4

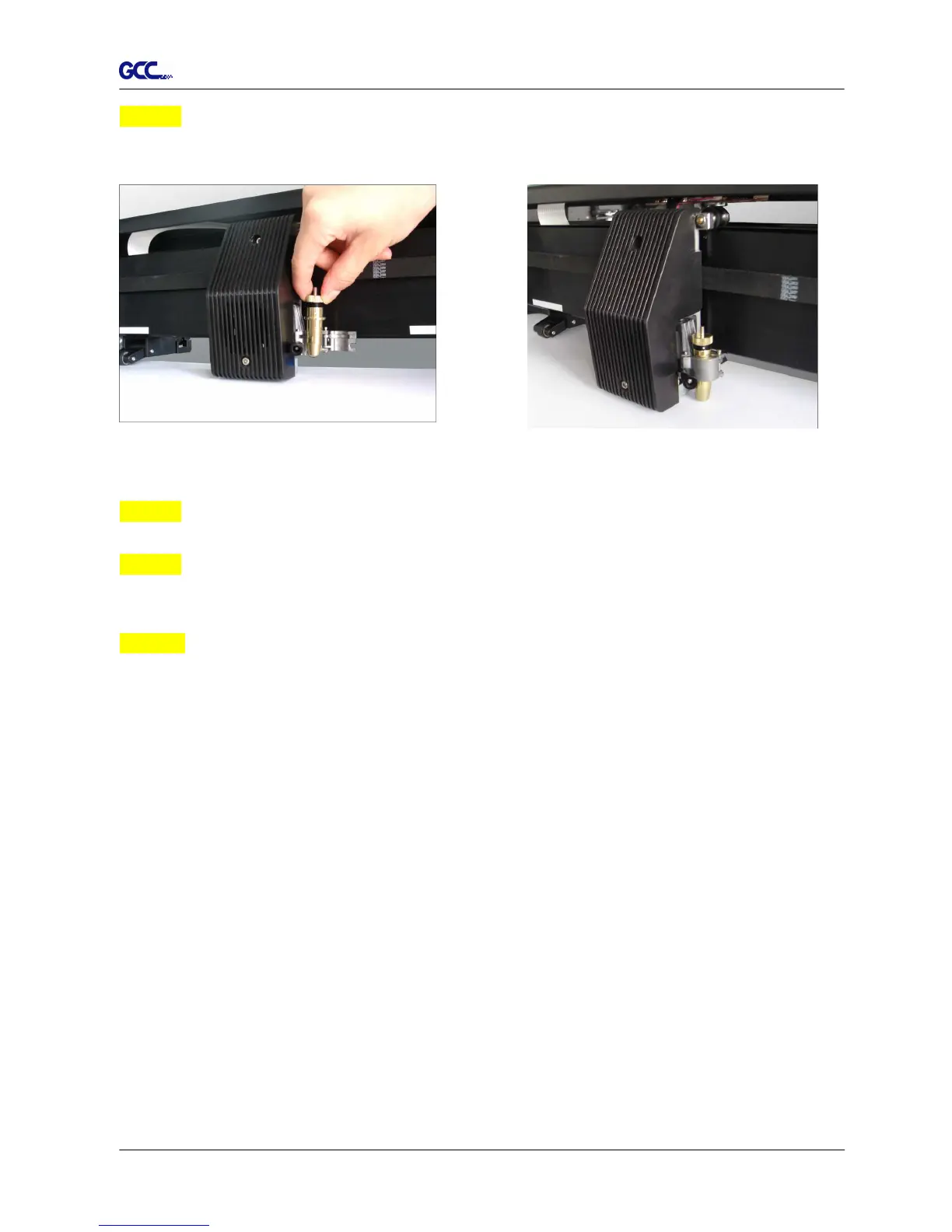

Insert the blade holder into tool carriage. Please note the outward ring of the holder must put
into the grooves of carriage firmly (see Figure 2-24), then fasten the case (Figure 2-25).
Figure 2-24
Figure 2-25
Step 5 Use the reversing steps to remove the blade holder.
Step 6 Eject the blade. Push “Blade eject pin” to eject blade when the blade needs to be
replaced.
Caution
The blade will lose its sharpness after a period of usage; the cutting quality might be affected.
By increasing the cutting force, it might do the trick. However, once the blade is worn out and
no longer provides a reliable cutting, you should replace a new one. The blade is consumable
and must be replaced as often as necessary to maintain the cutting quality. The quality of the
blade deeply affects cutting quality. So be sure to use a high quality blade to ensure good
cutting results.
