Step 3

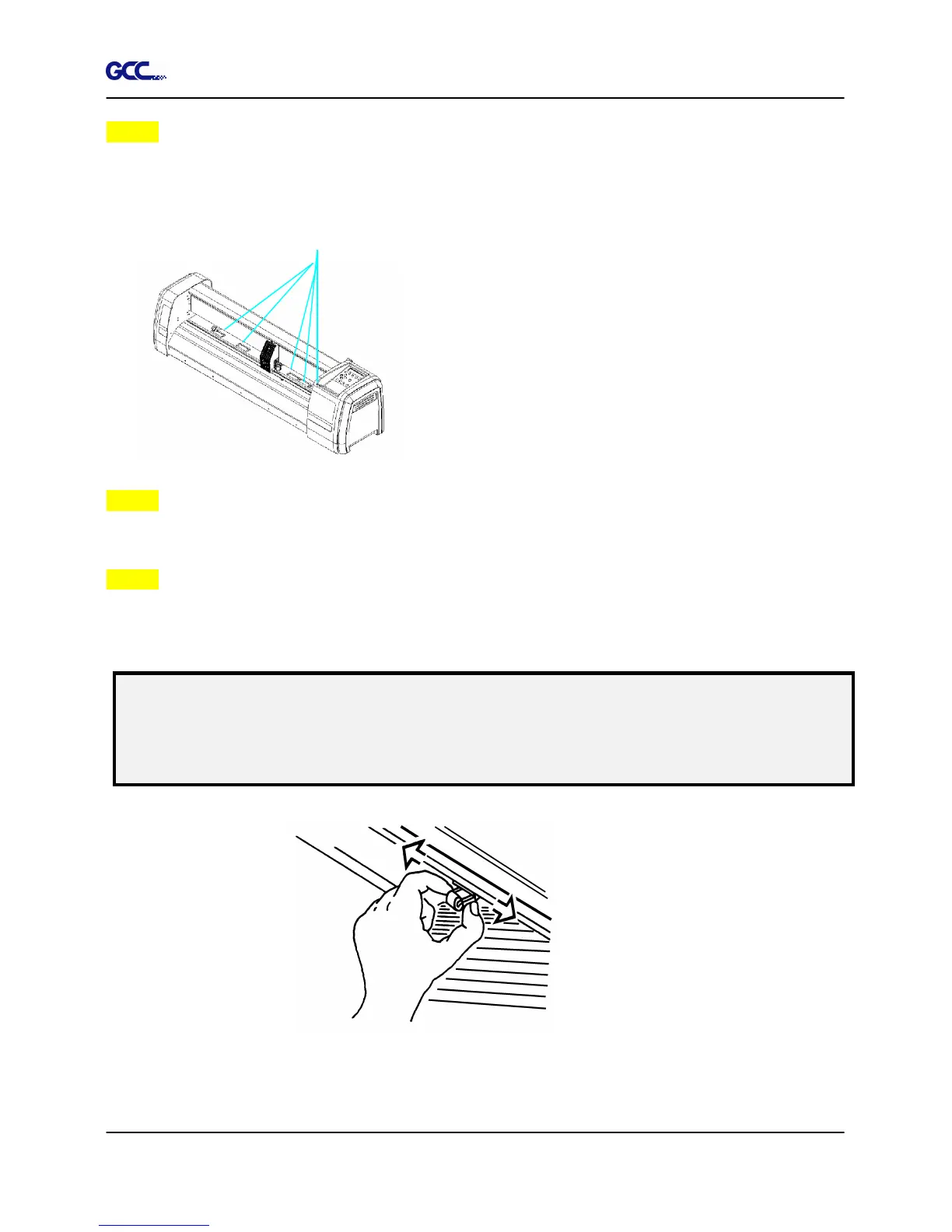

Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be
positioned above the grid drum. The white marks on the top trail will remind you where the grid
drums are (Figure 4-3).
Step 4
Push the lever backward to lower down the pinch rollers.
Step 5
Turn on the power, the tool carriage will measure the size of the media automatically. And the
plotting cutter begins to work.
Note:
1. Always adjust the position with the pinch roller raised.
2. Move the pinch roller by applying force at the rear portion of the pinch roller support.
3. Do not move it by holding its front rubber roller (Figure 4-4).
Figure 4-4
(X)
Incorrect
