•Click on the Save to File button to save the selected waveform to the local PC. A new
window will appear, requesting the file name and path. One file is saved as a
COMTRADE file, with the extension "CFG." The other file is a "DAT" file, required by the
COMTRADE file for proper display of waveforms.
• To view a previously saved COMTRADE file, click the Open button and select the
corresponding COMTRADE file.

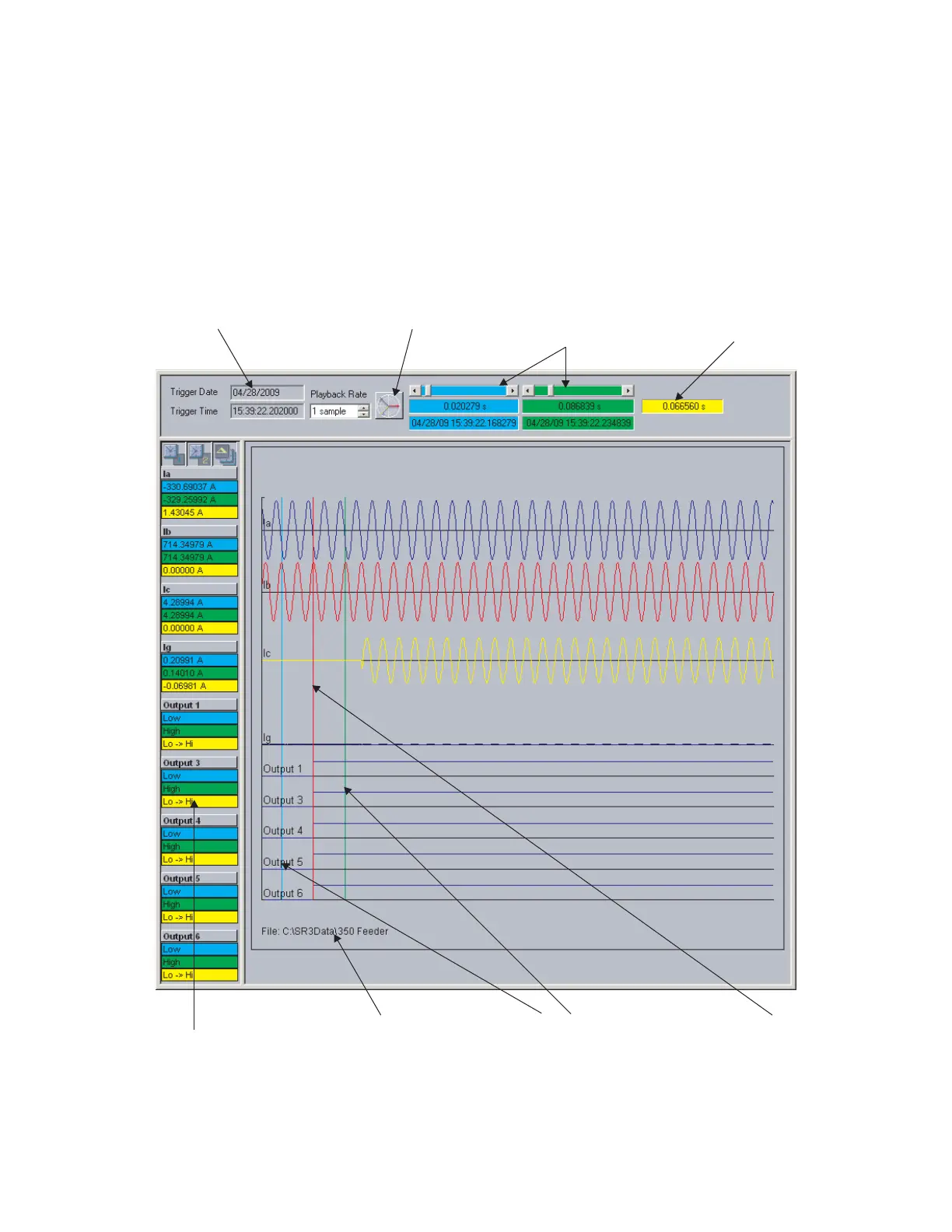

• To view the captured waveforms, click on the Launch Viewer button. A detailed
Waveform Capture window will appear as shown below.
Display graph values
at the corresponding
cursor line. Cursor
lines are identified
by their colors.
FILE NAME
Indicates the
file name and
complete path
(if saved).
CURSOR LINES
To move lines, locate the mouse
pointer over the cursor line, then
click and drag the cursor to the
new position.
TRIGGER LINE
Indicates the point
in time for the
trigger.
TRIGGER TIME & DATE
Displays the time and date
of the Trigger.
VECTOR DISPLAY SELECT
Click here to open a new graph
to display vectors.
CURSOR LINE POSITION
Indicates the cursor line position
in time with respect to the
beginning of the buffer.
DELTA
Indicates time difference
between the two cursor
lines.
