3–12 339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
SOFTWARE SETUP CHAPTER 3: INTERFACES
Software setup

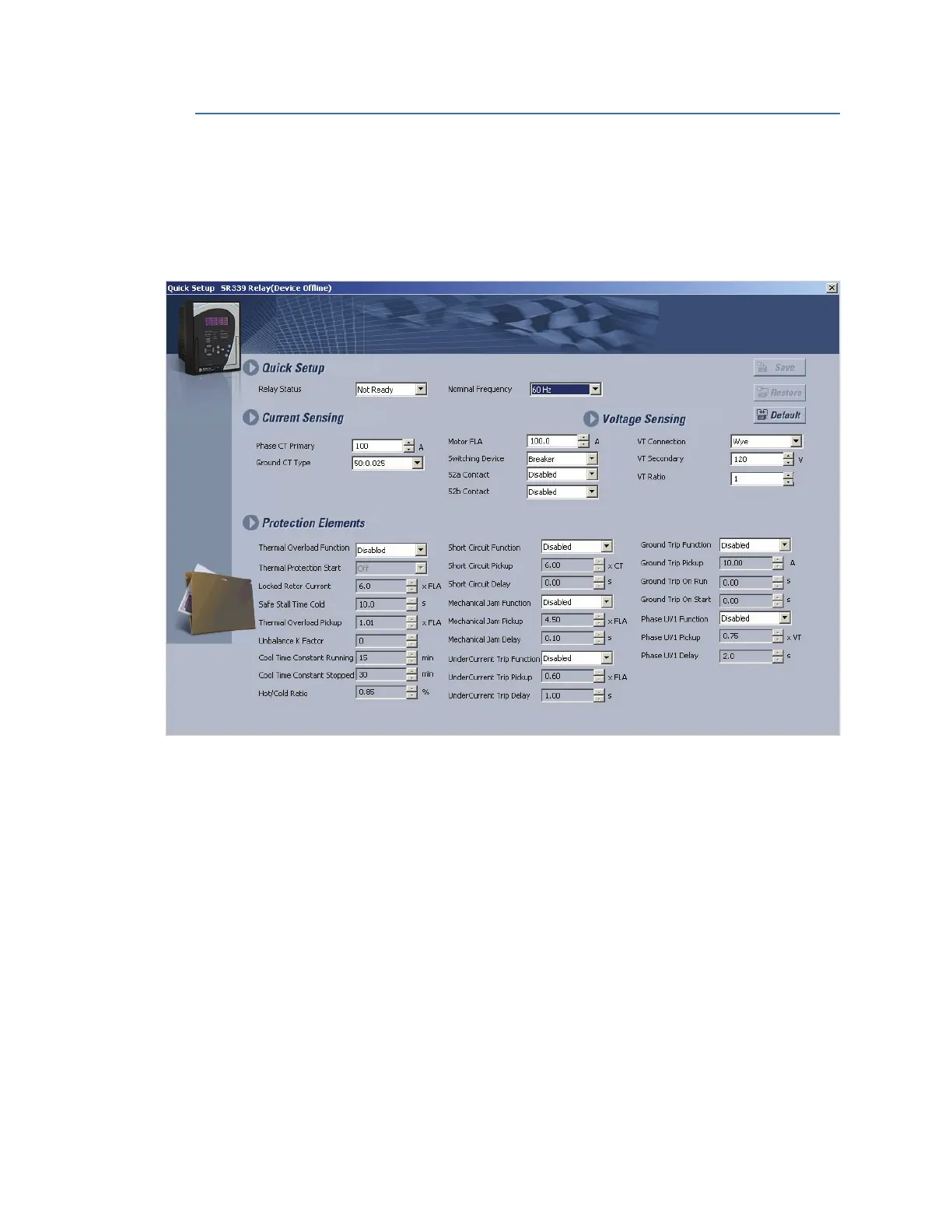

Quick setup - Software interface
• The Quick Setup window allows you to configure important settings from different
screens in the relay by adding them to a common window.
• Quick Setup window options are available for a single device or a file.
• The Quick Setup Window option is accessed from the "Tree" which launches on
clicking.
EnerVista 3 Series Setup Software
Although settings can be entered manually using the control panel keys, a PC can be used
to download setpoints through the communications port. The EnerVista 3 Series
Setup software is available from GE Multilin to make this as convenient as possible. With
EnerVista 3 Series Setup running, it is possible to:
• Program and modify settings
• Load and save setting files to and from a disk
• Read actual values
• Monitor status
• Read pre-trip data and event records
• Get help on any topic
