CHAPTER 3: INTERFACES SOFTWARE SETUP
339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–31
Advanced EnerVista 3 Series Setup features

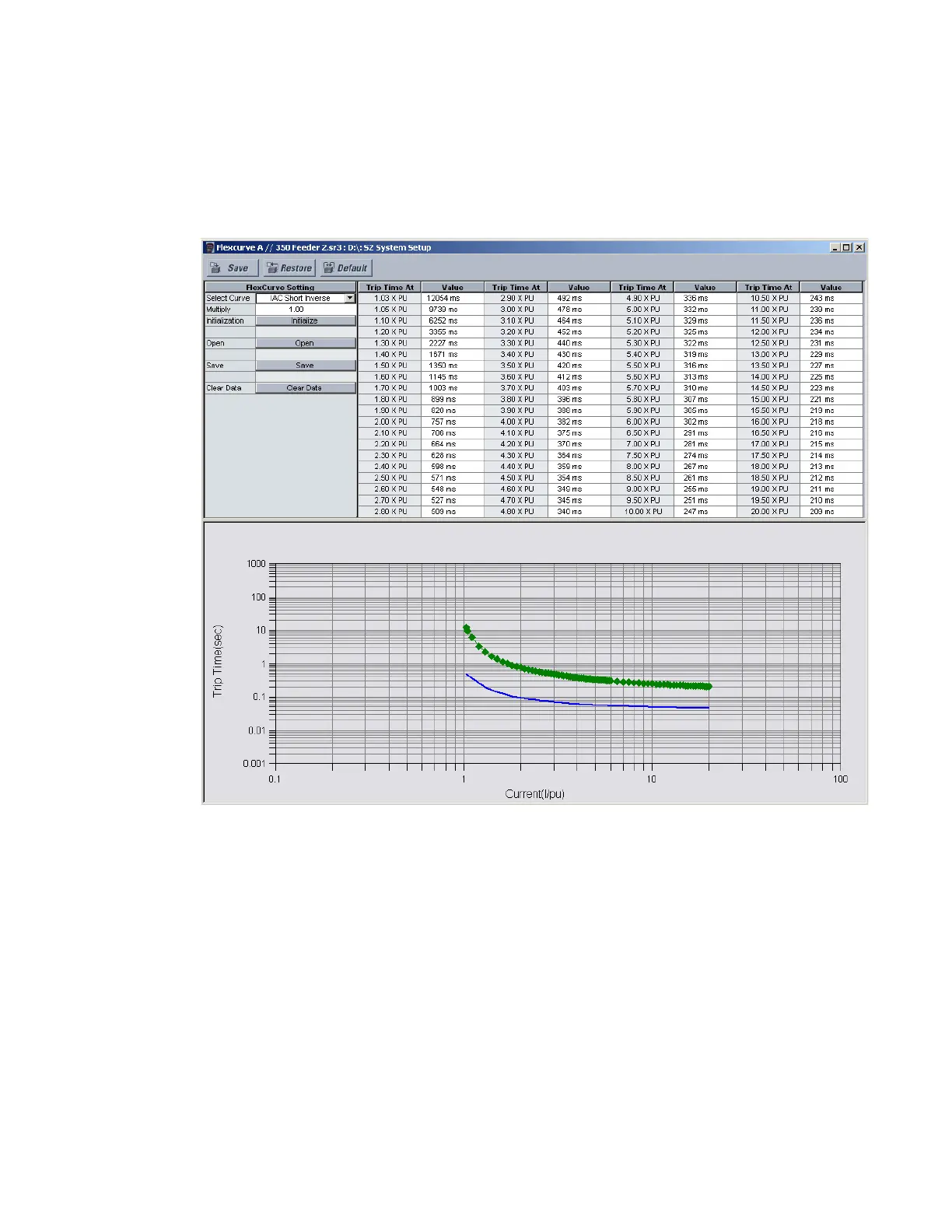

Flexcurve editor The FlexCurve Editor is designed to allow the user to graphically view and edit the
FlexCurve. The Flexcurve Editor screen is shown below:
• The Operate Curves are displayed, which can be edited by dragging the tips of the
curves
• A Base curve can be plotted for reference, to customize the operating curve. The Blue
colored curve in the picture (in both curves) is a reference curve. It can be Extremely
Inverse, Definite Time, etc.
• The Trip Times in the tables and curves work interactively i.e., changing the table value
will affect the curve shape and vice versa.
• The user can save Configured Trip Times.
• The user can export Configured Trip Times to a CSV file
• The user can load Trip Times from a CSV File
• The screen above shows the model followed by 339 for viewing Flexcurves. Select
Initialize to copy the trip times from the selected curve to the FlexCurve.
