CHAPTER 3: INTERFACES SOFTWARE SETUP
339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3–35
6. The method of customizing the datalog view is the same as the Waveform Capture
described below.
Transient recorder
(Waveform capture)

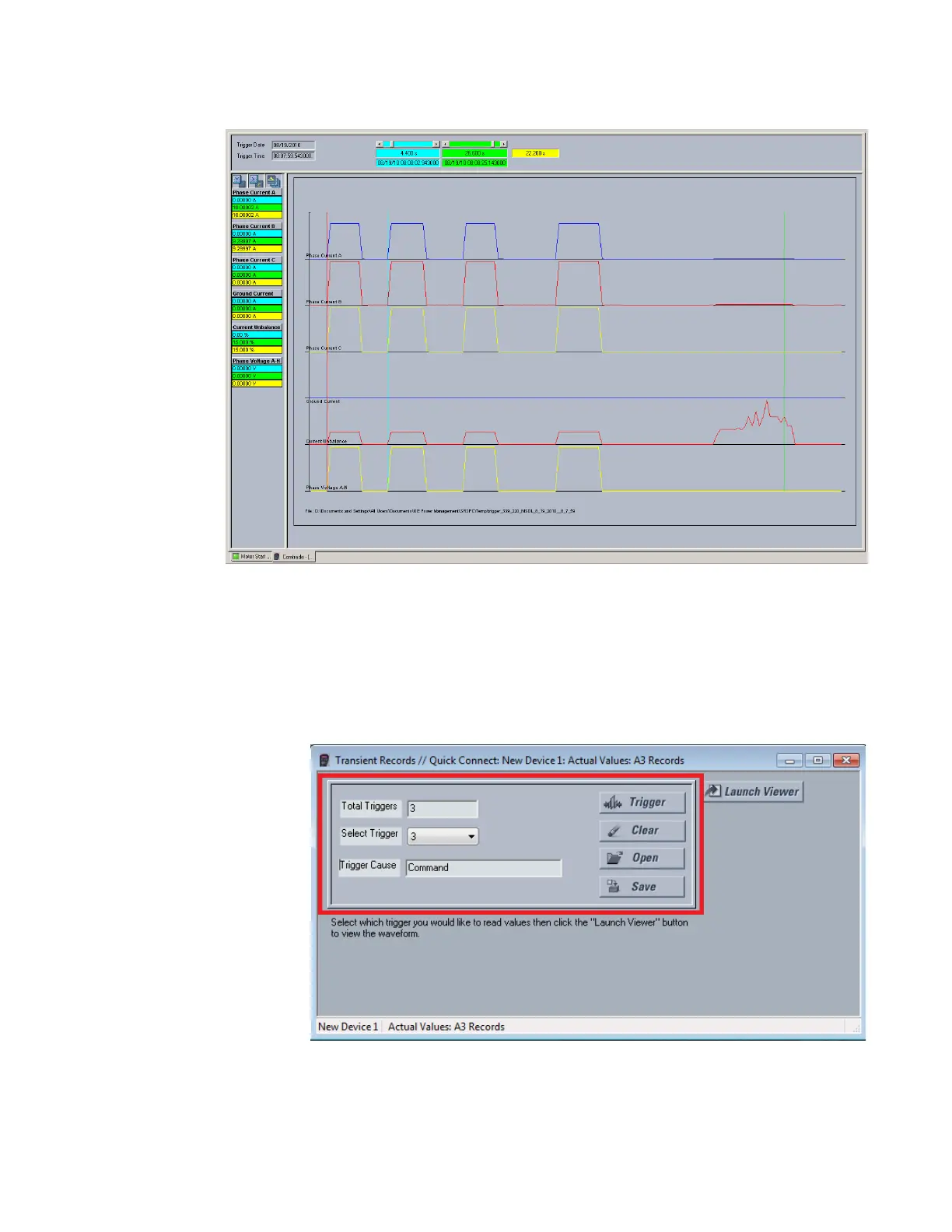

The EnerVista 3 Series Setup software can be used to capture waveforms (or view trace
memory) from the relay at the instance of a pickup, trip, alarm, or other condition.
• With EnerVista 3 Series Setup software running and communications established,
select the Actual Values > A3 Records > Transient Records menu item to open the
Transient Recorder Viewer window.
•Click on Trigger Waveform to trigger a waveform capture. Waveform file numbering
starts with the number zero in the 339 , so that the maximum trigger number will
always be one less than the total number of triggers available.
