CHAPTER 6: SETPOINTS S3 PROTECTION
339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 6–37

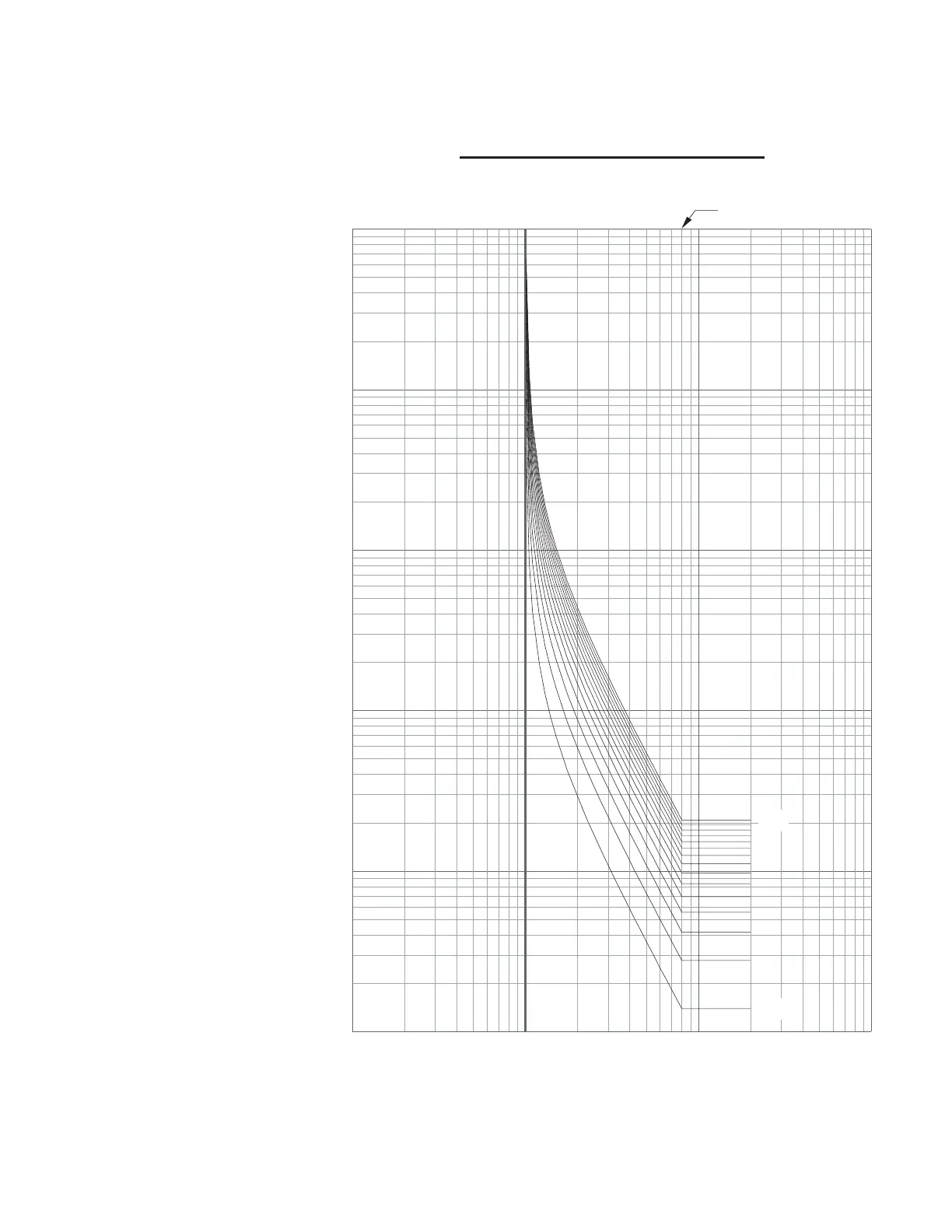

Figure 6-15: Standard Overload Curve Trip Times
STANDARD MOTOR CURVES
8 x FLA
x1
x15
100000
10000
1000
100
10
1.00
0.10 1.00
Multiples of FLA
Time To Trip in Seconds
10 100
896804A1.CDR
