CHAPTER 6: SETPOINTS S5 INPUTS/OUTPUTS
339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 6–169

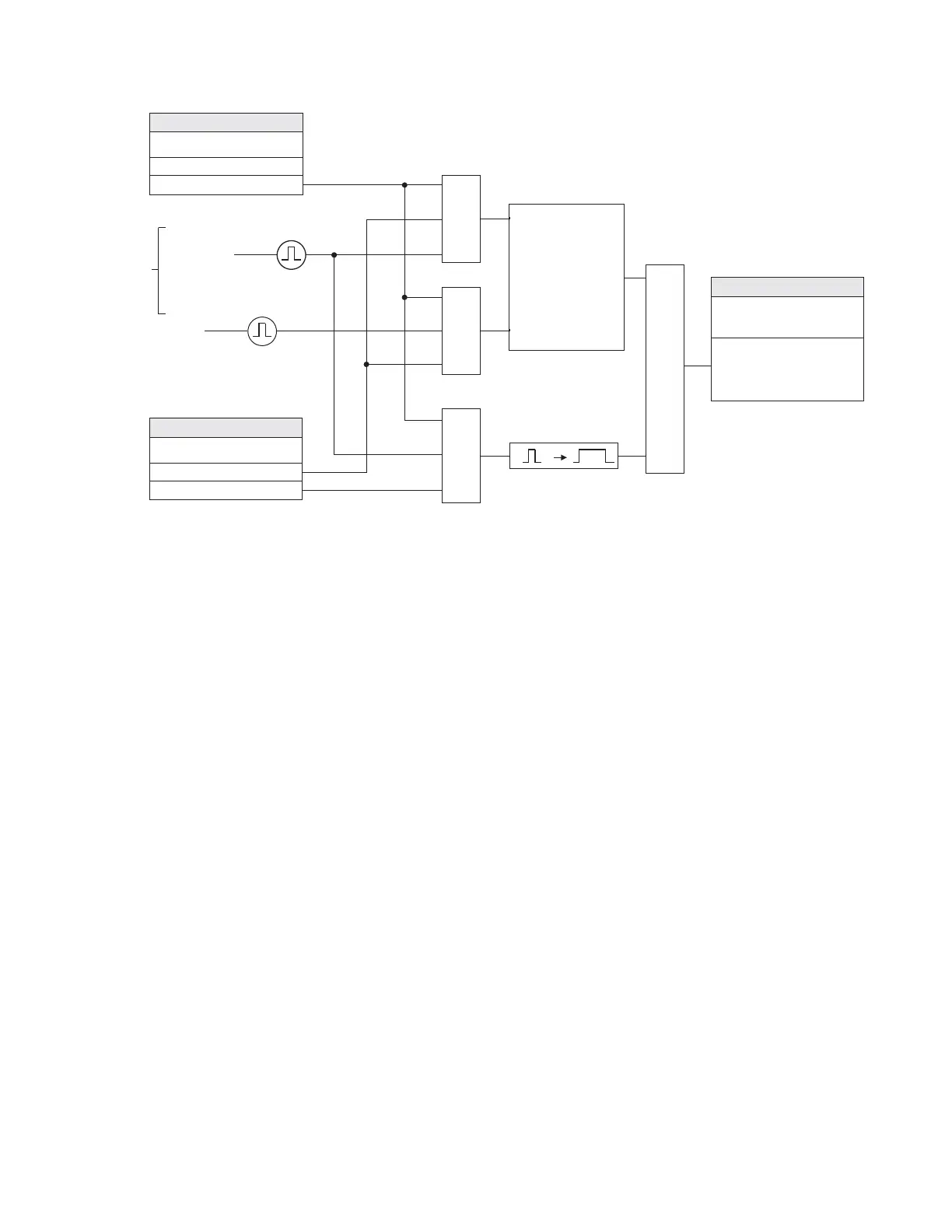

SETPOINT
V INPUT FUNCTION
Disabled = 0
Enabled = 1
AND
SETPOINT
V INPUT 1 TYPE
Latched
Self-Reset
AND AND
“VirtualInput1toON=1"
“Virtual Input 1 to OFF = 0"
S
R
LATCH
OR
ACTUAL VALUES
V INPUT 1 NAME:
(Operand)
VInput1Status
897774.cdr
From
Control
menu
