Appendix D. Foundation Fieldbus Communications
116 DigitalFlow™ GF868 Programming Manual (1-Channel)
D.4 Selecting Units for AI Blocks
To select the units for the individual AI blocks:
1. Double click on the AI block for which you wish to set the units (ANALOG_INPUT_1 or ANALOG_INPUT_2 in the
tree under GEFlow-XMT; see Figure 39 on page 114).
2. Select the Scaling tab and set the unit for the measurement based on the flowmeter settings.
For example, if the flowmeter was set to use the metric unit system and the PRIMARY_SELECTOR was set to use
VELOCITY you would choose m/s for the unit as shown in Figure 41.

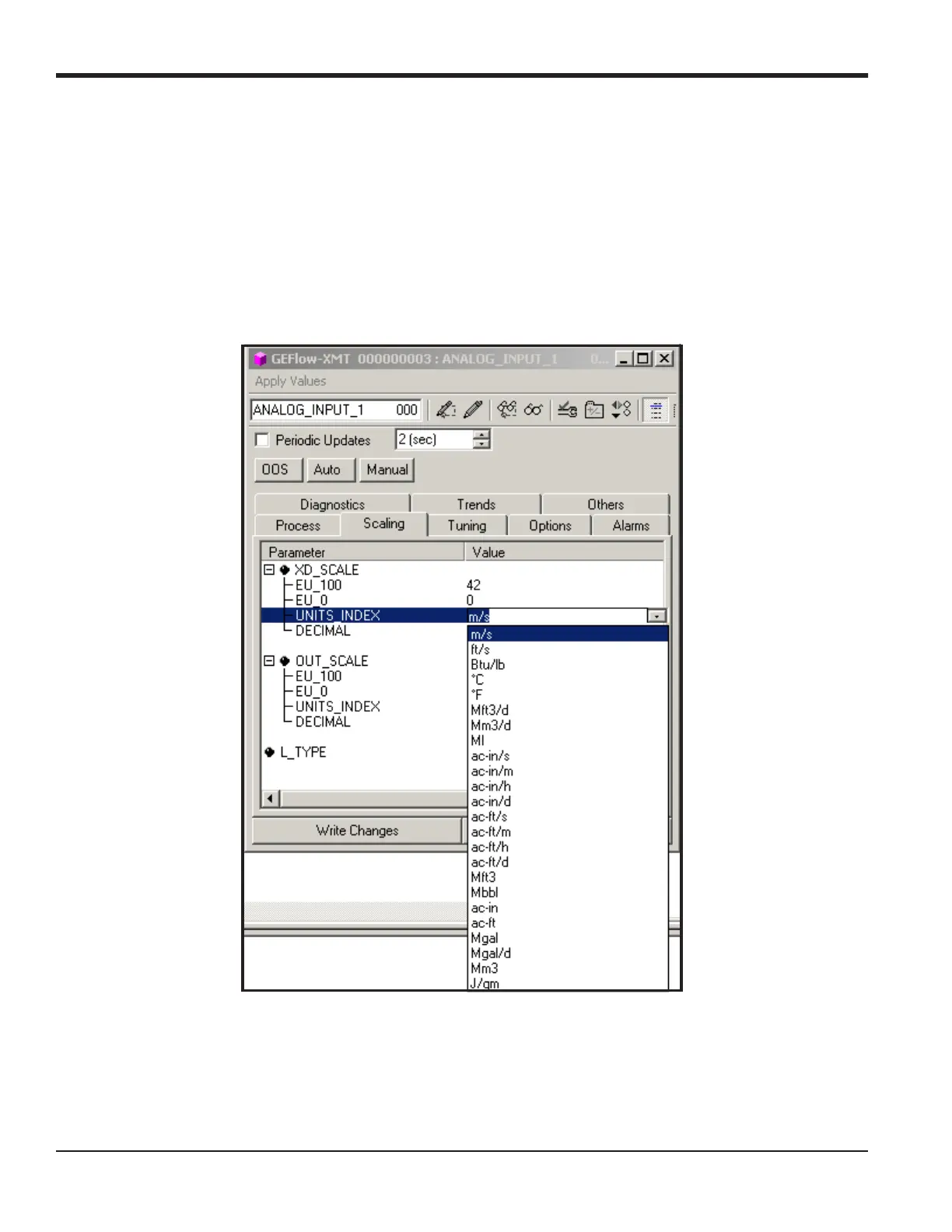

Figure 41: Units Index Drop Down List
