GE PROPRIETARY
TO
GE
D
IRECTION
5308917-100, R
EVISION
8
LOGIQ P3 S
ERVICE
M
ANUAL
Chapter 4 Funct
ional Checks
4-35
4-3-14-5
Full Backup
(cont’d)
10.)
A recovery information message appe
ars. Press
Next
to continue.
11.)
Press
Finish
after Emer
gency Disk
Recovery co
mplete.

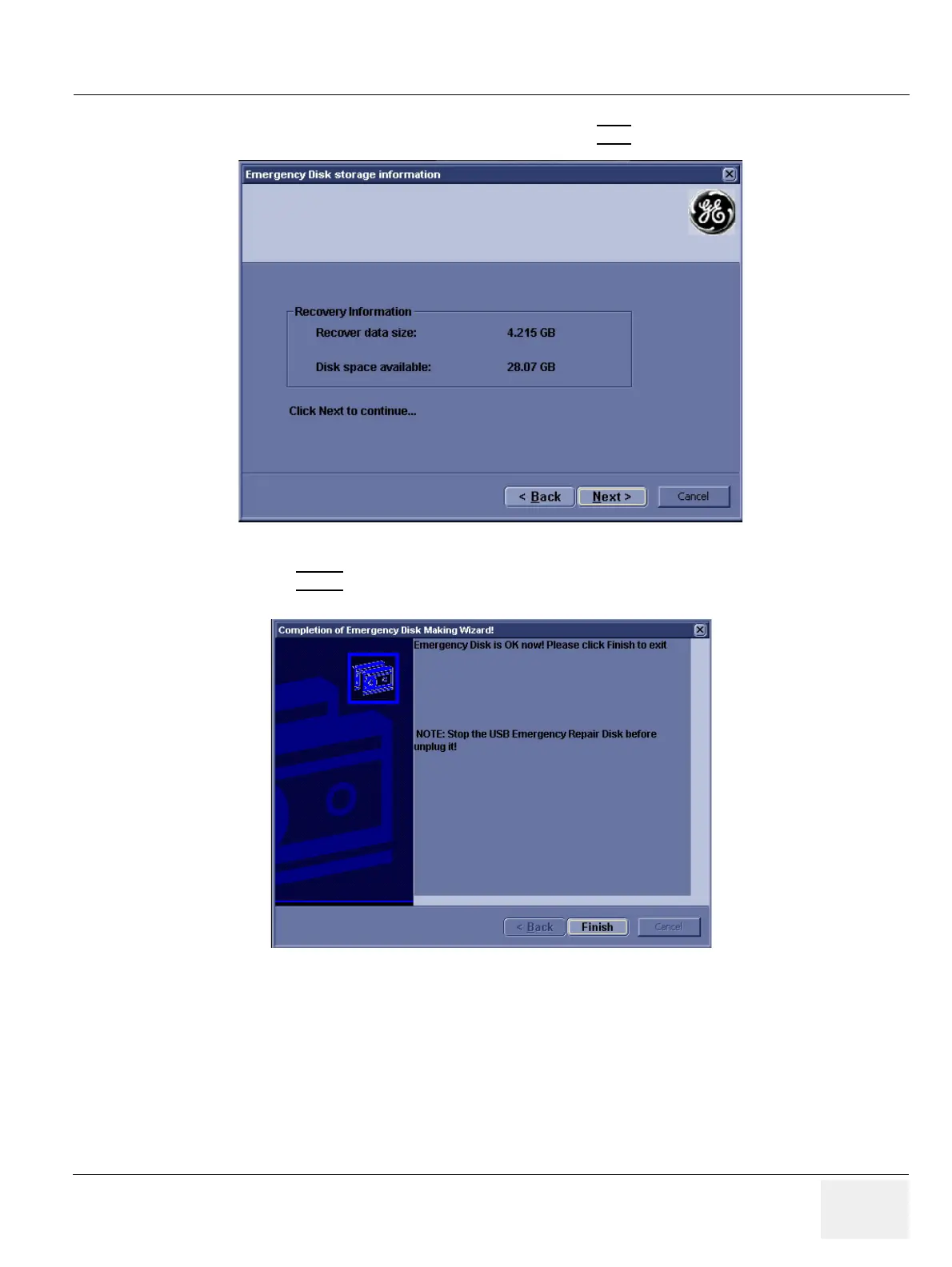

Figure 4-30 Recover
y Information message
Figure 4-31 Emergency Disk Recov
ery Complete
132
134
Table of Contents
Default Chapter
13
Table of Contents
13
CHAPTER 1 Introduction
33
Overview
33
Purpose of Chapter 1
33
Chapter Contents
33
Purpose of Proprietary Manual
33
Typical Users of the Basic Service Manual
34
LOGIQ P3 Models Covered by this Manual
34
LOGIQ P3 BT10 Models
35
Purpose of Operator Manual(S)
35
Important Conventions
36
Conventions Used in Book
36
Standard Hazard Icons
37
Product Icons
38
Safety Considerations
42
Introduction
42
Human Safety
42
Mechanical Safety
42
Electrical Safety
43
Labels Locations
43
Warning Labels Location Table
49
Dangerous Procedure Warnings
50
Lockout/Tagout Requirements (for USA Only)
50
Returning/Shipping Probes and Repair Parts
50
EMC, EMI, and ESD
51
Electromagnetic Compatibility (EMC)
51
Electrostatic Discharge (ESD) Prevention
51
Customer Assistance
52
Contact Information
52
System Manufacturer
53
CHAPTER 2 Pre Installation
55
Overview
55
Purpose of this Chapter 2
55
Chapter Contents
55
General Console Requirements
56
Console Environmental Requirements
56
Cooling
56
Lighting
56
Electrical Requirements
57
LOGIQ P3 Power Requirements
57
Inrush Current
58
Site Circuit Breaker
58
Site Power Outlets
58
Unit Power Plug
58
Power Stability Requirements
58
EMI Limitations
59
Scan Probe Environmental Requirements
60
Time and Manpower Requirements
60
Facility Needs
61
Recommended Ultrasound Room Layout
61
Purchaser Responsibilities
61
Required Features
62
Desirable Features
62
Recommended and Alternate Ultrasound Room Layout
63
Networking Pre-Installation Requirements
64
Stand Alone Scanner (Without Network Connection)
64
Scanner Connected to Hospital's Network
64
Purpose of DICOM Network Function
64
DICOM Option Pre-Installation Requirements
64
CHAPTER 3 Installation
67
Overview
67
Purpose of Chapter 3
67
Average Installation Time
67
Installation Warnings
68
Safety Reminders
68
Receiving and Unpacking the Equipment
69
Moving into Position
73
Adjusting System Clock
73
Product Locator Installation Card
74
Packing the Equipment
74
Preparing for Installation
75
Verify Customer Order
75
Physical Inspection
75
System Voltage Settings
75
EMI Protection
75
Checking the Components
75
Completing the Installation
76
Power on / Boot up
76
Scanner Power on
76
Turn on the System
77
Power Off/ Shutdown
77
Back-End Processor Power down - LOGIQ P3
77
Back-End Processor Power down - LOGIQ P3 BT10
78
Scanner Shutdown
79
Transducer Connection
79
System Configuration
81
System Specifications
81
Physical Dimensions
81
Approved Peripherals
81
Connecting Cables
82
Peripherals/Accessories Connector Panel
82
Rear Panel Connector
82
TOP Panel Connector
83
This Section Indicates the Pin Assignment for each Connector
84
Connect Peripherals
85
Configuring the Bluetooth Printer
91
Ge Direction
91
5308917-100, Revision
91
Available Probes
92
Software/Option Configuration
93
Connectivity Installation Worksheet
94
Loading Base Image Software
95
Software Version Check out
96
Functional Check-Out
96
Paperwork
97
Product Locator Installation
97
User Manual(S)
97
Direction 5308917-100, Revision 8 Logiq P3 Service Manual
98
CHAPTER 4 Functional Checks
99
Overview
99
Purpose for Chapter 4
99
Required Equipment
99
General Procedure
100
Power On/Boot up
100
Boot up
100
Turn on the System
101
Power Off/ Shutdown
101
TMST Power down
101
Scanner Shutdown
102
Full Maintenance Reboot (LOGIQ P3)
102
Archiving and Loading Presets
103
Archiving Presets to a DVD-R Disk (or USB Memory Device)
103
Loading Presets from a DVD-R Disk (or USB Memory Device)
104
Adjusting the Display Monitor
104
System Features
105
Control Panel
105
LOGIQ P3 Softmenu Key Tour
106
Monitor Display
107
B Mode Checks
108
Preparations
108
B Mode OP Panel Controls
109
B Mode Softmenu Key
110
M Mode Controls
111
Preparations
111
M Mode OP Panel Controls
112
M Mode Softmenu Key
113
Color Flow Mode Checks
114
Preparations
114
Color Flow Mode OP Panel Controls
115
Color Flow Mode Softemenu Key
116
Doppler Mode Checks
118
Preparations
118
Direction
118
Doppler Mode OP Panel Controls
119
Basic Measurements
122
Distance and Tissue Depth Measurements
122
Circumference/Area (Ellipse) Measurement
122
Worksheets
122
Probe/Connectors Usage
123
Direction 5308917-100, Revision 8 Logiq P3 Service Manual
123
Connecting a Probe
123
Activating the Probe
123
Deactivating the Probe
123
Disconnecting the Probe
123
Using Cine
123
Activating CINE
123
Quickly Move to Start/End Frame
123
Start Frame/End Frame
123
Adjusting the CINE Loop Playback Speed
124
Moving through a CINE Loop Frame by Frame
124
Image Management (QG)
124
Backup and Restore Database, Preset Configurations and Images
125
Formatting Media
125
Backup System Presets and Configurations
126
Restore System Presets and Configurations
127
Archiving Images
128
Full Backup
130
Patient Healthcare Information
134
Software Configuration Checks
135
Peripheral Checks
135
PC Based Products - Vulnerability and Precautions
136
5308917-100, Revision
136
CHAPTER 5 Components and Functions (Theory)
137
Overview
137
Block Diagram - Logiq P3
138
Block Diagram - LOGIQ P3 BT10
139
General Information
140
Front End
141
The Back End
142
Top Console
142
External I/O
144
Peripherals
144
Wiring
145
Power up Sequence Description
146
Power down Sequence Description
146
PWA Assy Diagrams
148
Tmst
148
Description
149
Rx64
150
Description
151
Tx64
151
Description
152
Cwd
152
Connector Board
153
Rear Panel-1 & Rear Panel 2
154
Keyboard
156
Indicator Leds
157
Power Diagrams
158
Overview
158
Common Service Platform
160
Introduction
160
Global Service User Interface (GSUI)
160
Internationalization
160
Service Login
160
Access / Security
160
RFS (Request for Service)
162
General
162
Sending RFS Procedure
162
Direction 5308917-100, Revision 8 Logiq P3 Service Manual
162
CHAPTER 6 Service Adjustments
167
Overview
167
Purpose of this Chapter 6
167
Monitor Adjustments
168
Adjustments Procedures
168
Monitor Calibration Procedure
168
Ge Direction
169
CHAPTER 7 Diagnostics/Troubleshooting
169
Overview
169
Purpose of Chapter 7
169
Gathering Trouble Data
170
Overview
170
Collect Vital System Information
170
Collect a Trouble Image with Logs
171
USB Quick Save
172
Overview
172
Check and Record the P3 Key Function
172
Setting the P3 Key to USB Quick Save
173
Screen Captures
174
Check and Record the P3 Key Function
174
Setting the P3 Key to Screen Capture
174
Capturing a Screen
174
Reset the P3 Key to Customer's Functionality
176
Wire - LAN Network
177
Troubleshooting
178
Console Troubleshooting Trees
178
System Doesn't Boot
179
B Mode Low Sensitivity
180
B Mode Low Image Quality
181
Noise in B Mode
182
Color Flow Low Sensitivity
183
Spectrum Doppler Low Sensitivity
184
Noise in Color Flow
185
Scan Procedure
186
Trackball
188
LCD Display
189
Peripheral Troubleshooting Trees
190
Unable Recording by Printer
190
Drive Issue DVD-RW
191
LCD Troubleshooting
192
Network Troubleshooting Trees
192
No Connection to the Network at All
192
CHAPTER 8 Replacement Procedures
195
Overview
195
Purpose of Chapter 8
195
Disassembly/Re-Assembly
196
Warning and Caution
196
Returning/Shipping for Repairs
196
Standard Tools List for LOGIQ P3
197
LCD Assy (FRU P/N: 5315112-1 - LP3, 5396925-1 - LP3 BT10)
198
Tools
198
Needed Manpower
198
Preparations
198
Removal Procedure
198
Mounting Procedure
201
Functional Checkout Procedure
201
LCD Arm Cover (FRU P/N: 5310093)
202
Tools
202
Needed Manpower
202
Preparations
202
Removal Procedure
202
Mounting Procedure
202
Functional Checkout Procedure
202
Handle P3 Console (FRU P/N: 5315120)
203
Tools
203
Needed Manpower
203
Preparations
203
Removal Procedure
203
Mounting Procedure
203
Functional Checkout Procedure
203
Keyboard Assembly for P3 (FRU P/N: 5314404)
204
Tools
204
Needed Manpower
204
Preparations
204
Removal Procedure
204
Mounting Procedure
206
Replace Keyboard Assembly
206
Functional Checkout Procedure
207
Keyboard Assembly for LP3 BT (FRU P/N: 5412217-1)
208
Tools
208
Needed Manpower
208
Preparations
208
Removal Procedure
208
Mounting Procedure
210
Replace Keyboard Assembly
210
Functional Checkout Procedure
210
TGC PWA FRU Assy (FRU P/N: 5315107-P3, 5438284-LP3BT)
211
Tools
211
Needed Manpower
211
Preparations
211
Removal Procedure P3
211
Removal Procedure P3 BT
211
Mounting Procedure
212
Functional Checkout Procedure
212
Keyboard Controller Board (FRU P/N: 5454860 - Includes 5402819 Plus Screws)
213
Mounting Procedure
217
Functional Checkout Procedure
217
Alpha Numeric Keyboard with Cables (FRU P/N: 5315106-2)
218
Tools
218
Needed Manpower
218
Preparations
218
Removal Procedure
218
Mounting Procedure
218
Functional Checkout Procedure
219
Keyboard Rear Cover Assy (FRU P/N: 5315122)
222
Tools
222
Needed Manpower
222
Preparations
222
Removal Procedure
222
Mounting Procedure
223
Functional Checkout Procedure
223
Probe Holder (FRU P/N: 5168500) / Gel Bottle Holder (FRU P/N: 5168636)
224
Needed Manpower
224
Preparations
224
Removal Procedure
224
Mounting Procedure
224
Functional Checkout Procedure
224
P/N: 5262796 - P3, 5455710 - P3Bt)
225
Tools
225
Needed Manpower
225
Preparations
225
Removal Procedure
225
Mounting Procedure
227
Cals
228
Tools
228
Needed Manpower
228
Preparations
228
Removal Procedure
228
Mounting Procedure
228
LH Side Cover (FRU No: 5315114)
228
Functional Checkout Procedure
228
Rear Cover (FRU No. 5315117)
229
Tools
229
Needed Manpower
229
Preparations
229
Removal Procedure
229
Mounting Procedure
230
Functional Checkout Procedure
230
Front Cover (FRU No.5315116)
231
Tools
231
Needed Manpower
231
Preparations
231
Removal Procedure
231
Mounting Procedure
232
Functional Checkout Procedure
232
Top Cover (FRU P/N: 5315121)
233
Tools
233
Needed Manpower
233
Preparations
233
Removal Procedure
233
Mounting Procedure
235
Functional Checkout Procedure
235
Caster Wheel Front (FRU P/N :5315118 - LP3, 5368246 - LP3BT10) / Caster Wheel
236
Rear (FRU P/N: 5315119 - LP3, 5368247 - LP3 BT10)
236
Tools
236
Needed Manpower
236
Preparations
236
Removal Procedure
236
Mounting Procedure
236
Functional Checkout Procedure
236
Ge Direction
237
Rear EMI Cover (Part of EMI Cover Assy FRU P/N: 5315111)
237
Tools
237
Needed Manpower
237
Preparations
237
Removal Procedure
237
Mounting Procedure
237
Functional Checkout Procedure
237
Right EMI Cover
238
Tools
238
Needed Manpower
238
Preparations
238
Removal Procedure
238
Mounting Procedure
238
Functional Checkout Procedure
239
Left EMI Cover
240
Tools
240
Needed Manpower
240
Preparations
240
Removal Procedure
240
Mounting Procedure
241
Functional Checkout Procedure
241
MST BOARD ASSEMBLY ( P/N: 5315025-2 - LP3, 5388844-1 - LP3BT10) SOM (P/N: 5398506 or 5267782-3 - LP3, 5398506 or 5267782-3 - LP3BT10)
242
Tools
242
Needed Manpower
242
Preparations
242
Removal Procedure
242
Mounting Procedure
245
Functional Checkout Procedure
246
Hard Disk Drive Assembly ( Part No:5315113)
247
Tools
247
Needed Manpower
247
Preparations
247
Removal Procedure
247
Mounting Procedure
248
Functional Checkout Procedure
248
USB Cable Set (FRU P/N: 5315039)
249
Tools
249
Needed Manpower
252
Preparations
252
Removal Procedure
252
Tools
252
Needed Manpower
254
Preparations
254
Removal Procedure
254
Tools
254
FAN Assy (FRU No.: 5314414)
254
Preparations
255
Removal Procedure
255
Rear Panel Assy (FRU P/N: 5313708-1) - LOGIQ P3
255
Tools
255
Needed Manpower
255
Mounting Procedure
256
Functional Checkout Procedure
257
(Fruno. 5314412-3)
258
Tools
258
Needed Manpower
258
Preparations
258
Removal Procedure
258
Mounting Procedure
260
Functional Checkout Procedure
261
Tools
262
Needed Manpower
262
Preparations
262
Removal Procedure
262
Mounting Procedure
263
Functional Checkout Procedure
263
RX Board (FRU P/N: 5315027)
264
Tools
264
Needed Manpower
264
Preparations
264
Removal Procedure
267
Flex Cable (MST to TX) Assy (FRU No.5315109)
267
Tools
267
Needed Manpower
267
Preparations
267
Mounting Procedure
268
Functional Checkout Procedure
269
Power Block - LOGIQ P3
270
Tools
270
Needed Manpower
270
Preparations
270
Removal Procedure
270
Mounting Procedure
272
Functional Checkout Procedure
272
Power Block - LOGIQ P3 BT10
273
Tools
273
Needed Manpower
273
Preparations
273
Removal Procedure
273
Mounting Procedure
274
Functional Checkout Procedure
274
Tools
275
Needed Manpower
275
Preparations
275
Removal Procedure
275
Functional Checkout Procedure
276
Tools
277
Needed Manpower
277
Preparations
277
Removal Procedure
277
Mounting Procedure
277
Functional Checkout Procedure
277
Video Interface Board (5397507 - LP3 BT)
280
Tools
280
Fru Bom
280
Needed Manpower
280
Removal Procedure
280
Mounting Procedure
280
Functional Checkout Procedure
280
Signal Cable Set (FRU P/N: 5315042 for P3 and P/N: 5388847 for P3 BT)
281
Tools
281
Fru Bom
281
Needed Manpower
281
Preparations
281
Removal Procedure
281
Functional Checkout Procedure
282
Power Cable Set (FRU P/N: 5315036 for P3 and P/N: 5388845 for P3 BT)
283
Tools
283
Fru Bom
283
Needed Manpower
283
Preparations
283
Removal Procedure
283
Functional Checkout Procedure
284
CWD Assy (FRU No: 5124847)
285
Tools
285
Needed Manpower
285
Preparations
285
Removal Procedure
285
Functional Checkout Procedure
286
Loading Software
287
Initiate Software Reload from the Common Service Desktop
290
Initiate Software Reload from the Recovery Console
291
Functional Checkout Procedure
292
For a Service Call with no Fru Replacement, Use the Following Debrief Script
292
CHAPTER 9 Renewal Parts
295
Overview
295
Purpose of Chapter 9
295
List of Abbreviations
296
Operator Console Assy
297
LCD Assy
298
Keyboard Assy
299
Keyboard Key Caps FRU Part No:- 5315124
300
Mechanical Assy
304
Pwa Assy
306
Pwa Assy (Cont'D)
306
Flex PCB Cables
307
Signal Cable Set
308
USB Cable Set
309
Power Cable Set
310
Accessories and Kits
312
Probe
314
Logiq P3 FRU List with Part Numbers
315
CHAPTER 10 Care & Maintenance
319
Overview
319
Periodic Maintenance Inspections
319
Why Do Maintenance
320
Keeping Records
320
Maintenance Task Schedule
320
How Often Should Care & Maintenance Tasks be Performed
320
Tools Required
322
Standard GE Tool Kit
322
Special Tools, Supplies and Equipment
324
Specific Requirements for Care & Maintenance
324
System Maintenance
325
Preliminary Checks
325
Functional Checks (See also Chapter 4)
326
System Checks
326
Peripheral/Option Checks
327
Input Power
327
AC Power Inspection
327
Physical Inspection
328
Optional Diagnostic Checks
329
View the Logs
329
Probe Maintenance
329
Basic Probe Care
329
Basic Probe Cleaning
329
Using a Phantom
330
Electrical Safety Tests
330
Safety Test Overview
330
Leakage Current Limits
331
LOGIQ Ultrasound System Leakage Current Limits
332
Outlet Test - Wiring Arrangement
334
Grounding Continuity
334
Meter Procedure
334
Chassis Leakage Current Test
336
Definition
336
Generic Procedure
336
Data Sheet for Enclosure Source Leakage Current
337
Isolated Patient Lead (Source) Leakage-Lead to Ground
337
Definition
337
Generic Procedure
338
Isolated Patient Lead (Source) Leakage-Lead to Lead
338
Data Sheet for ECG Leakage Current
339
Probe Leakage Current Test
340
Definition
340
Generic Procedure for Leakage Current
340
Meter Procedure Using Probe Adaptor
341
Data Sheet for Transducer Source Leakage Current
342
When There's too Much Leakage Current
343
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GE LOGIQ P3 PRO and is the answer not in the manual?
Ask a question
GE LOGIQ P3 PRO Specifications
General
Brand
GE
Model
LOGIQ P3 PRO
Category
Medical Equipment
Language
English
Related product manuals
GE LOGIQ P3 VET
348 pages
GE LOGIQ P3 EXPERT
348 pages
GE LOGIQ P9
602 pages
GE LOGIQ P7
602 pages
GE LOGIQ P6
478 pages
GE LOGIQ P5
532 pages
GE LOGIQ P6 Series
484 pages
GE LOGIQ P5 Basic OB
532 pages
GE LOGIQ P6 Pro Series
484 pages
GE LOGIQ E9
808 pages
GE LOGIQ S8
418 pages
GE LOGIQ E10
778 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
