IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-46 Section 8-4 - Mechanicals
8-4-9 Left EMI Cover (P/N: 5308964 - Not a FRU; Part of EMI Cover Assy FRU P/N:
5315111)
This is a description on how to remove and replace the Left EMI Cover.
8-4-9-1 Tools
• Common Phillips screwdrivers
8-4-9-2 Needed Manpower
• 1person, 15 minutes
8-4-9-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-9-4 Removal Procedure
1) Remove Left cover. Refer section 8-4-1 on page 32 for details on how to remove Left cover.
3) eight screws to be unfastened of LH -side EMI cover of Logiq P3 system.
Refer Figure 8-51 on page 8-46
2) Remove LH- side EMI cover. Refer Figure 8-51 on page 8-46 for details on how to remove Left cover.

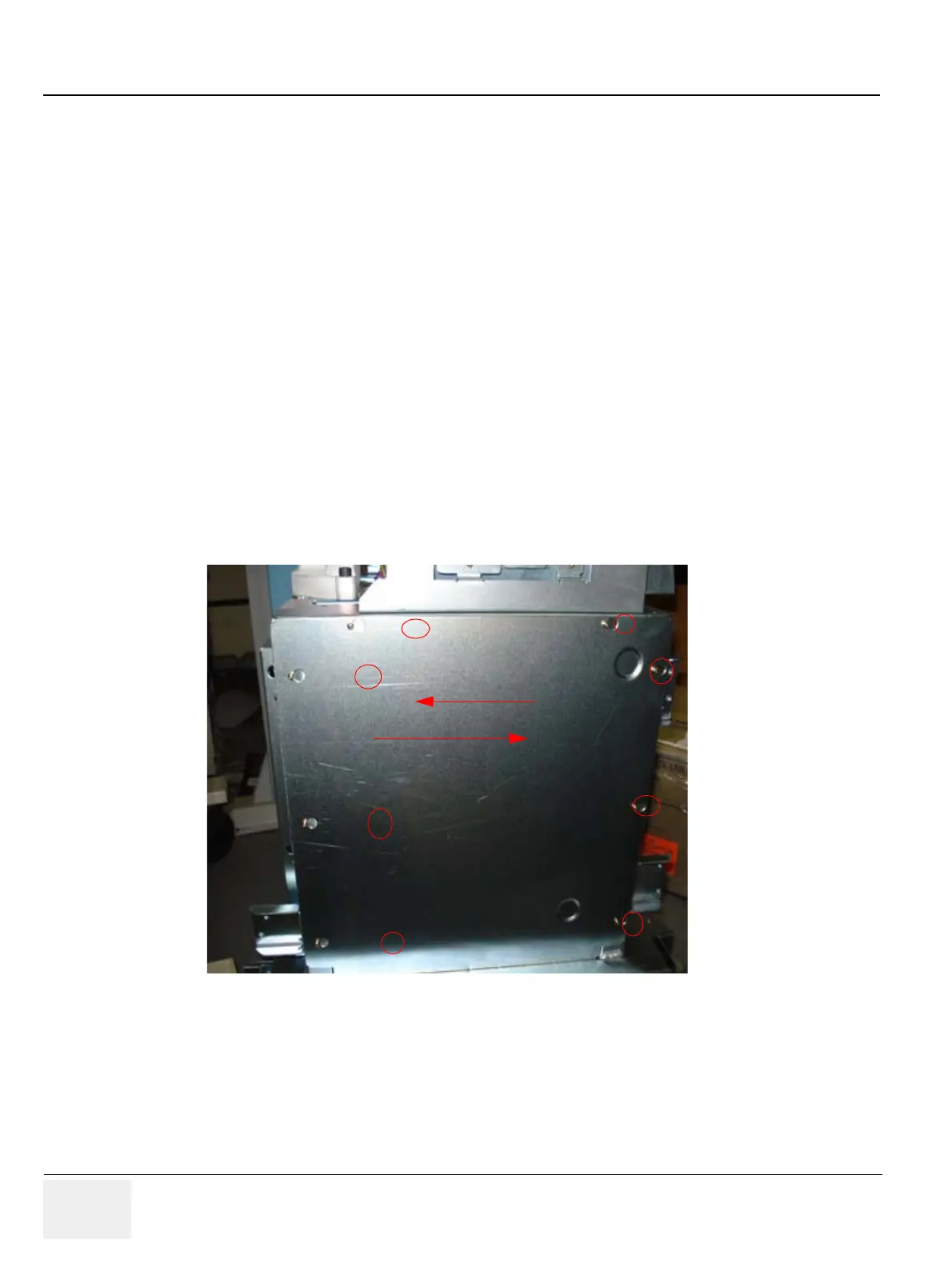

Figure 8-51 LH side EMI cover
4) Use Screwdriver & Loose eight screws (1,2,3,4,5,6,7,8,), from LH-side EMI cover of Logiq P3 system
1
2
3
4
6
7
8
Slide this way to remove the cover
Slide this way to reinstall the cover
