Chapter 8 Replacement Procedures 8-81
Section 8-8Key Caps (FRU P/N: 5315124)
8-8-0-1 Tools
• Common Phillips screwdrivers
8-8-0-2 Needed Manpower
• 1person, 15 minutes
8-8-0-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-8-0-4 Removal Procedure
1) Remove the Keyboard assembly.
2) Remove 24 screws shown in figure below and seperate the Keyboard PWA.
3) Push the key cap out from the rear side and remove it.

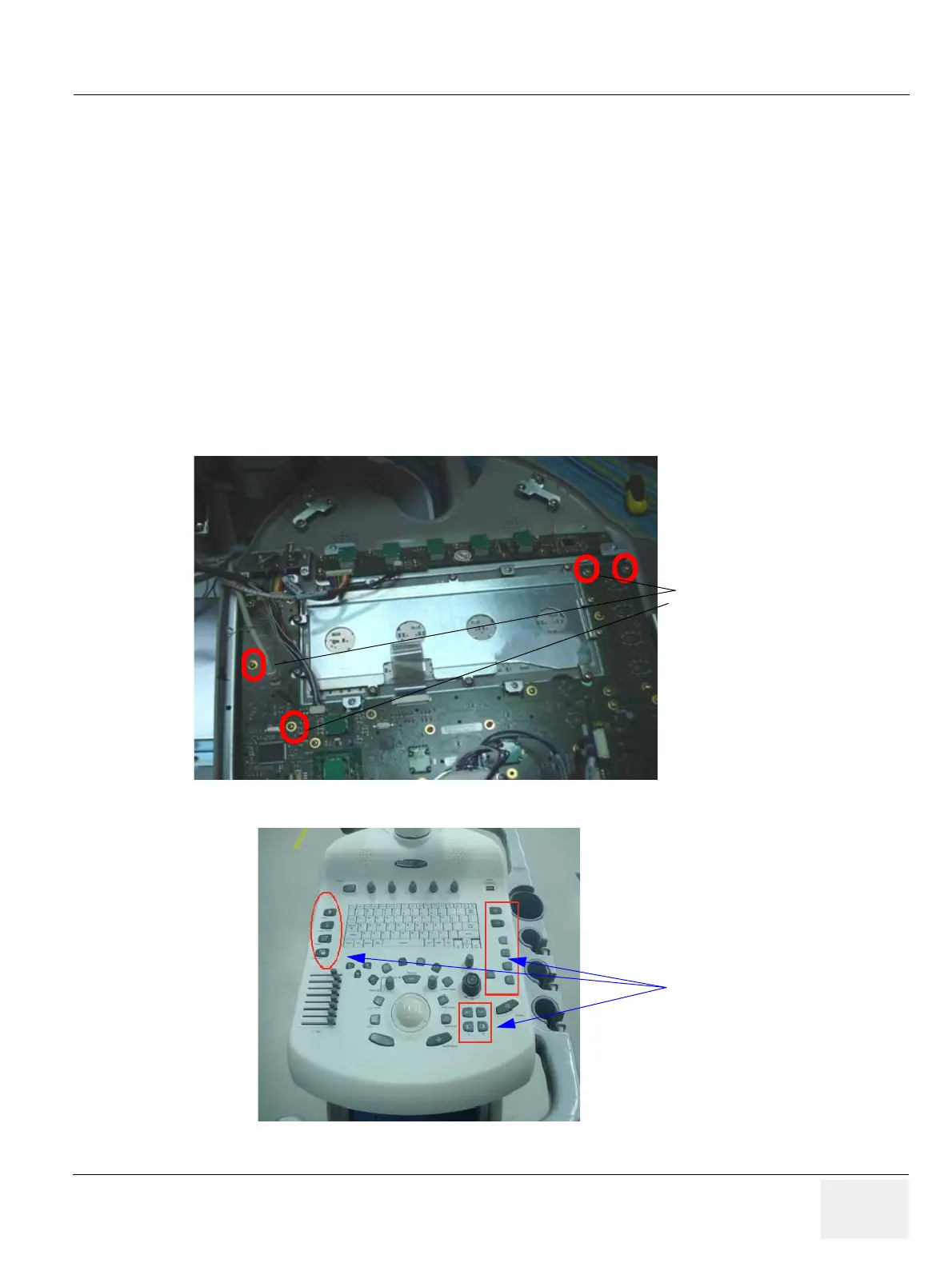

Figure 8-88 Top View of Key Caps
