IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-76 Section 8-7 - Power Block - LOGIQ P3
Section 8-7 Power Block - LOGIQ P3
8-7-1 Transformer Assembly (FRU No. 5408517) Cable Guard Clamp (FRU
No:5219747)
This is a description on how to remove and replace the Transformer Assy.
8-7-1-1 Tools
• Common Phillips screwdrivers
8-7-1-2 Needed Manpower
• 1 persons, 15 minutes
8-7-1-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
NOTE: For 110V System Configuration use 110V wired Plug (with 3 Amps Fuse).
NOTE: For 230V System Configuration use 230V Wired plug (With 2 Amps Fuse).
NOTE: To replace Cable Guard Clamp Donot remove the transformer,remove power cord and press
the cable clamp from both the sides the clamp will come out side.
8-7-1-4 Removal Procedure
1) Remove rear cover. Refer section 8-4-3 on page 35
2) Unscrew two screws (a,b) as marked in Figure 8-83 on page 8-76
3) Remove GND cable (which ever connected near to “a” ). Refer Figure 8-83 on page 8-76

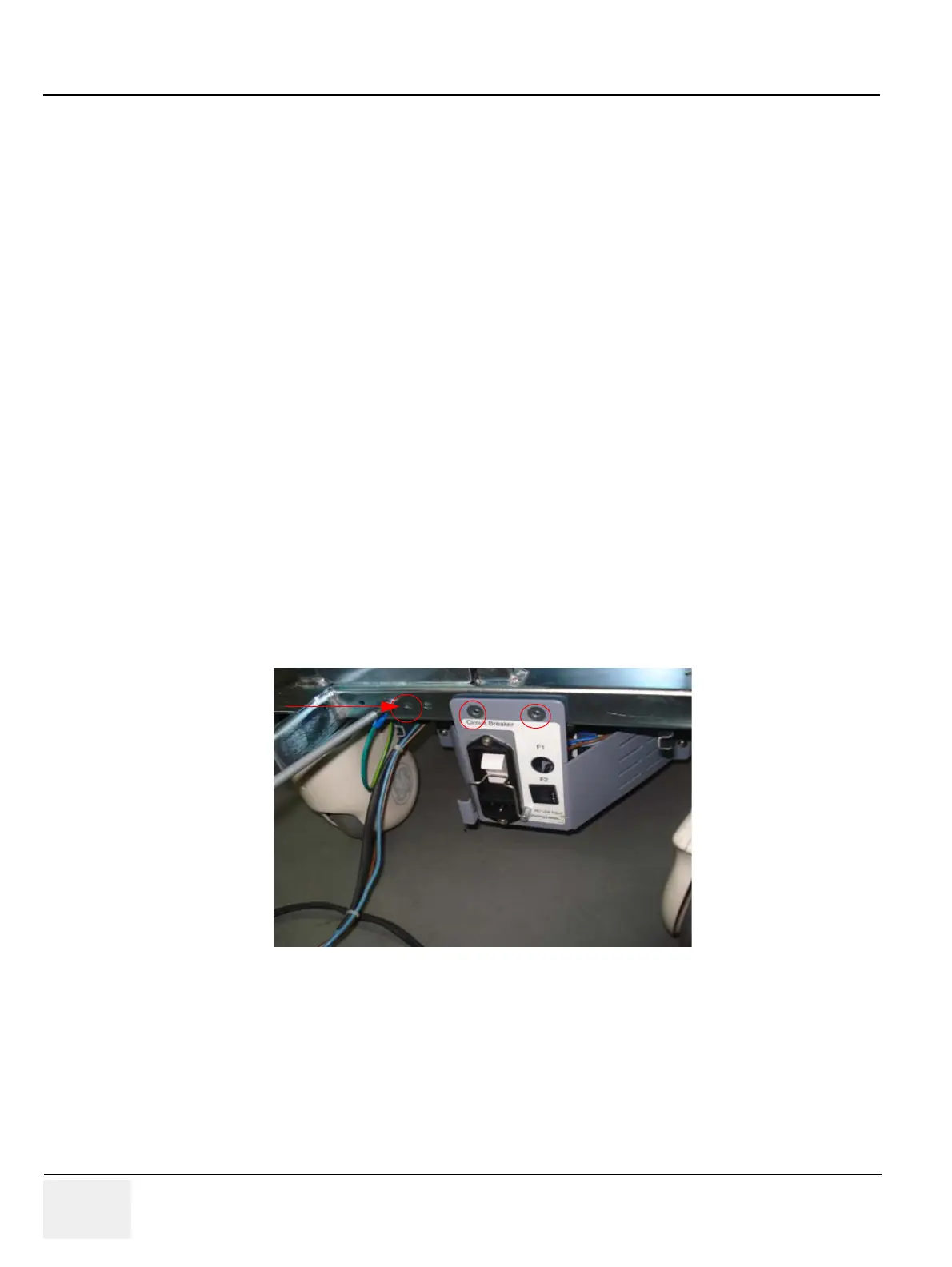

Figure 8-83 Removing Transformer Assembly
To Next Page
